iFlightPlanner



...
ELLINGTON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7B9
ELLINGTON
PublicPUB

2 miles N of ELLINGTON, CT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 55' 31"N 72° 27' 26"W
253' MSL
1253' MSL
15W
100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
12/25/25-1/22/26
KBDL (10nm) IFR
7:51 AM EST
Light Rain and Mist
Overcast 900'
4sm
32°F
31°F
29.66"Hg
340° 4kts
AO2 SLP044 RAB47 P0000 T00001006 VISNO RWY 6-24 $
METAR KBDL 071251Z 34004KT 4SM -RA BR OVC009 00/M01 A2966 RMK AO2 SLP044 RAB47 P0000 T00001006 VISNO RWY 6-24 $
+ Add Your Business

7B9 FBOs

Promote Listing
Connecticut Parachutists
UNICOM: 123.0
Phone: (860) 871-0021
Other: (203) 530-4143
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 1/6
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.85
Full Serve
Fuel Notes
Prices include tax
Call ahead for availability and pricing of fuel.
Promote Listing
Northeast Helicopters
UNICOM: 123.0
Phone: (860) 871-2054
Other: (866) 634-3567
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

No communication frequencies available for this airport.

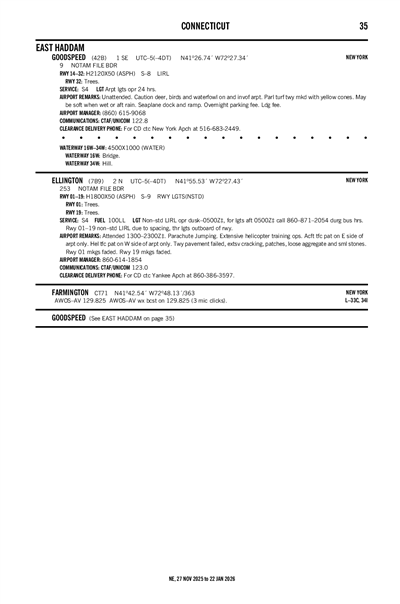

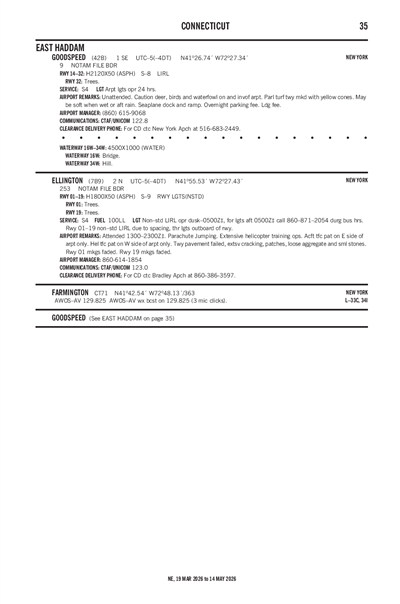

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KBDL (10nm)
Wed, 1/7 6:27 AM EST
Wed, 1/7 7:00 AM EST - Thu, 1/8 1:00 PM EST
IFR
7:00 AM EST - 11:00 AM EST
Light Drizzle and Mist
Overcast 500'
6sm
010° 5kts
IFR
8:00 AM EST - 11:00 AM EST
Light Freezing Rain and Mist
Overcast 500'
2sm
Calm
IFR
11:00 AM EST - 2:00 PM EST
Mist
Overcast 800'
6sm
340° 4kts
MVFR
2:00 PM EST - 4:00 PM EST
Mist
Broken 1,500'
6sm
320° 5kts
VFR
4:00 PM EST - 12:00 AM EST
Broken 3,500'
6sm
300° 7kts
VFR
12:00 AM EST - 1:00 PM EST
Scattered 15,000'
6sm
300° 5kts
TAF KBDL 071127Z 0712/0818 01005KT 6SM -DZ BR OVC005
   PROB30 0713/0716 2SM -FZRA BR OVC005
   FM071600 34004KT 6SM BR OVC008
   FM071900 32005KT 6SM BR BKN015
   FM072100 30007KT P6SM BKN035
   FM080500 30005KT P6SM SCT150
7B9
EffectiveExpiresCategoryNOTAM
Domestic
1/8/26
1400Z
1/8/26
1800Z
!BDR 01/023 7B9 AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF 7B9 1000FT-2000FT AGL ACFT CS FLC80
2601081400-2601081800
No
0800-1800
CONNECTICUT PARACHUTISTS INC
P. O. BOX 507
ELLINGTON, CT 06029
Phone: 860-871-0021
BRIAN KNIGHT
3 WINGSTONE LN
DEVON, PA 19333-0021
Phone: 860-614-1854
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BDR
--
NON-STD LIRL OPR DUSK-2400; FOR LGTS AFT 0000 CALL 860-871-2054 DURG BUS HRS.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Sales

Runway 01/19

1800 ft. x 50 ft.
ASPH
Fair
NONE
NSTD

9,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 355°175°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition POOR POOR
Latitude 41° 55' 23"N 41° 55' 40"N
Longitude 72° 27' 25"W 72° 27' 27"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1EXTSV HEL TRNG OPNS.
A110-2NON-STD THR LGTS.
A110-6FOR CD CTC BRADLEY APCH AT 860-386-3597.
A110-7ACFT TFC PAT ON E SIDE OF ARPT ONLY. HEL TFC PAT ON W SIDE OF ARPT ONLY.
A110-8TWY PAVEMENT FAILED, EXTSV CRACKING, PATCHES, LOOSE AGGREGATE AND SML STONES.
ELLINGTON (IATA: 7B9) is a public airport located in ELLINGTON, CT.
