KENMARE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7K5
Local 7K5
KENMARE MUNI
PublicPUB

1 miles SE of KENMARE, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 40' 03"N 102° 02' 53"W
Elevation
1962' MSL
Pattern Alt
2962' MSL
Mag Variation
7°E
Declination
10°E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/14/26-6/11/26
K1MN (7nm) VFR
12:55 PM CDT
Scattered 7,000'
Few 2,400'
8sm
68°F
35°F
29.55"Hg
280° 28kts
Gusts 38kts
AO2 PK WND 28039/1657 SLP007 T02010015 10201 20107 53001 $
METAR K1MN 151755Z AUTO 28028G38KT 8SM FEW024 SCT070 20/02 A2955 RMK AO2 PK WND 28039/1657 SLP007 T02010015 10201 20107 53001 $
+ Add Your Business

7K5 FBOs

Promote Listing
Kenmare Municipal Airport
UNICOM: 122.8
Phone: (701) 385-9335
Other: (701) 848-6322
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.20
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT REIL RY 26; PAPI RY 08/26; MIRL RY 08/26 - CTAF. LGTS OPER FOR 1 HR AT SS.
UNICOM 122.8

Approach

MINOT APPROACH 119.6

Departure

MINOT DEPARTURE 119.6

Center

MINOT CENTER 127.6
LOW/HIGH, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 127.6/279.6 ( MINOT RCAG) WHEN MINOT APCH CTL CLSD.

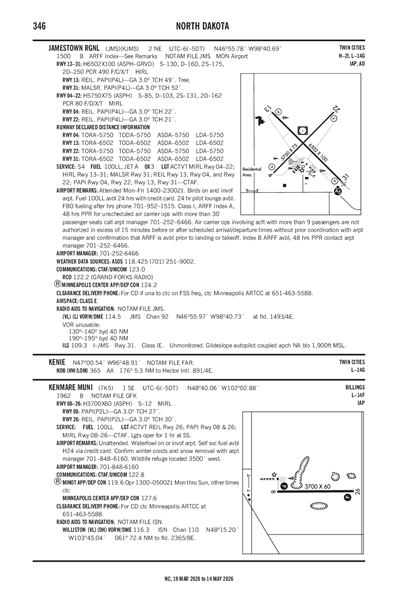

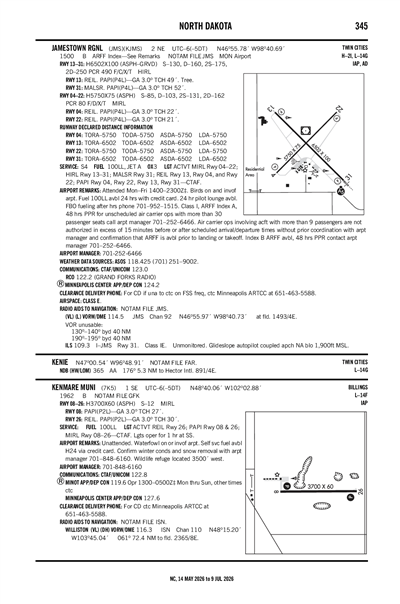

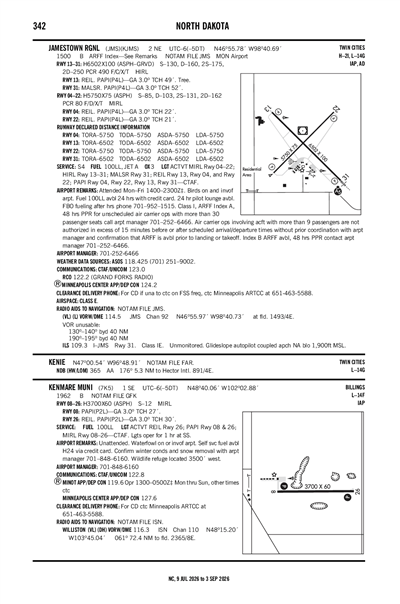

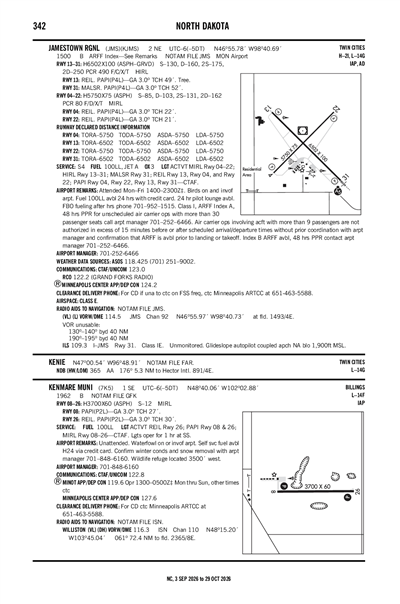

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMIB (32nm)
Fri, 5/15 12:00 PM CDT
Fri, 5/15 12:00 PM CDT - Sat, 5/16 6:00 PM CDT
MVFR
Temporary 12:00 PM CDT - 4:00 PM CDT
Blowing Dust
No Clouds
4.97sm
280° 30kts
Gusts 40kts
VFR
12:00 PM CDT - 5:00 PM CDT
Blowing Dust
Few 9,000'
5.59sm
29.53"Hg
280° 25kts
Gusts 35kts
Moderate, Clear Air, Occasional: up to 3,000'
VFR
Becoming 5:00 PM CDT - 9:00 PM CDT
Light Showers and Rain
Broken 10,000'
Scattered 8,500'
5.59sm
29.62"Hg
280° 20kts
Gusts 30kts
Light Turbulence: up to 3,000'
MVFR
Temporary 6:00 PM CDT - 9:00 PM CDT
Light Thunderstorm and Rain
Broken 8,000'
4.97sm
280° 25kts
Gusts 35kts
VFR
Becoming 9:00 PM CDT - 11:00 PM CDT
Few 12,000'
6sm
29.70"Hg
280° 10kts
Gusts 20kts
VFR
Becoming 11:00 PM CDT - 8:00 AM CDT
Few 12,000'
6sm
29.73"Hg
280° 9kts
VFR
Becoming 8:00 AM CDT - 2:00 PM CDT
Scattered 3,000'
6sm
29.82"Hg
340° 9kts
VFR
Becoming 2:00 PM CDT - 6:00 PM CDT
Broken 14,000'
Scattered 9,000'
6sm
29.79"Hg
VRB° 6kts
TAF KMIB 151700Z 1517/1623 28025G35KT 9000 BLDU FEW090 520003 QNH2954INS
   TEMPO 1517/1521 28030G40KT 8000 BLDU
   BECMG 1522/1523 28020G30KT 9000 -SHRA SCT085 BKN100 510003 QNH2962INS
   TEMPO 1523/1602 28025G35KT 8000 -TSRA BKN080CB
   BECMG 1602/1603 28010G20KT 9999 NSW FEW120 QNH2970INS
   BECMG 1604/1605 28009KT 9999 FEW120 QNH2973INS
   BECMG 1613/1614 34009KT 9999 SCT030 QNH2982INS
   BECMG 1619/1620 VRB06KT 9999 SCT090 BKN140 QNH2980INS TX22/1519Z TN05/1611Z
7K5
EffectiveExpiresCategoryNOTAM
Domestic
5/13/26
1646Z
9/10/26
1646Z
!GFK 05/092 7K5 OBST TOWER LGT (ASR 1059678) 482310.00N1015539.00W (17.6NM SSE 7K5) 2649.9FT (330.1FT AGL) U/S 2605131646-2609101646
5/6/26
1653Z
8/6/26
2359Z
!GFK 05/051 7K5 OBST TOWER LGT (ASR 1038536) 484033.00N1020357.00W (0.9NM NW 7K5) 2126.0FT (170.6FT AGL) U/S 2605061653-2608062359
4/3/26
0148Z
5/18/26
0148Z
!GFK 04/051 7K5 OBST TOWER LGT (ASR 1264895) 484051.60N1020452.60W (1.5NM WNW 7K5) 2216.9FT (272.0FT AGL) U/S 2604030148-2605180148
1/15/26
1425Z
Runway!GFK 01/372 7K5 RWY 26 RWY END ID LGT U/S 2601151425-2607152111EST
No
UNATNDD
KENMARE ARPT AUTH
320 N CENTRAL AVE
KENMARE, ND 58746
Phone: 701-848-6160
DEREK PETERSON
310 6TH AVE NE
KENMARE, ND 58746
Phone: 701-848-6160
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT REIL RY 26; PAPI RY 08/26; MIRL RY 08/26 - CTAF. LGTS OPER FOR 1 HR AT SS.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 08/26

3700 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 48° 40' 03"N 48° 40' 03"N
Longitude 102° 03' 20"W 102° 02' 25"W
Elevation 1,962' 1,955'
Threshold Crossing Height 27 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes
A110-1CONFIRM WINTER CONDS & SNOW REMOVAL WITH AMGR 701-848-6160.
A110-2WILDLIFE REFUGE LCTD 3500 FT W.
A110-3WATERFOWL ON OR INVOF ARPT.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A52-08ALSO +30 FT BLDGS 1300 FT FM THLD & 25 FT R OF EXTDD CNTRLN; +254 FT TWR 8000 FT FM THLD.
A52-26CLSD ROAD 360 FT FM THLD ON EXTDD CNTRLN.
A70-100LLSELF SVC FUEL AVBL H24 VIA CREDIT CARD.
A76-AGRIFOR AGRI SVC CALL (701) 848-6116.
A81-APTACTVT REIL RY 26; PAPI RY 08/26; MIRL RY 08/26 - CTAF. LGTS OPER FOR 1 HR AT SS.
KENMARE MUNI (IATA: 7K5) is a public airport located in KENMARE, ND, US.
