iFlightPlanner



...
BRUSH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7V5
Local 7V5
BRUSH MUNI
PublicPUB

3 miles E of BRUSH, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 15' 52"N 103° 34' 32"W
Elevation
4280' MSL
Pattern Alt
5280' MSL
Mag Variation
7°E
Declination
11°E
Fuel
None Listed
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
3/19/26-4/16/26
KFMM (11nm) VFR
1:55 PM MDT
Few 8,500'
10sm
61°F
21°F
30.25"Hg
300° 17kts
Gusts 26kts
AO2 LTG DSNT S
METAR KFMM 041955Z AUTO 30017G26KT 10SM FEW085 16/M06 A3025 RMK AO2 LTG DSNT S
+ Add Your Business

7V5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
DUSK-DAWN, ACTVT LIRL RWY 07/25 5 TIMES - 8 TIMES OFF - CTAF.
UNICOM 122.8

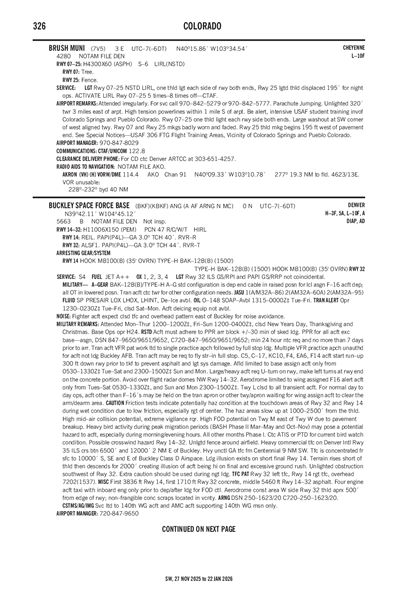

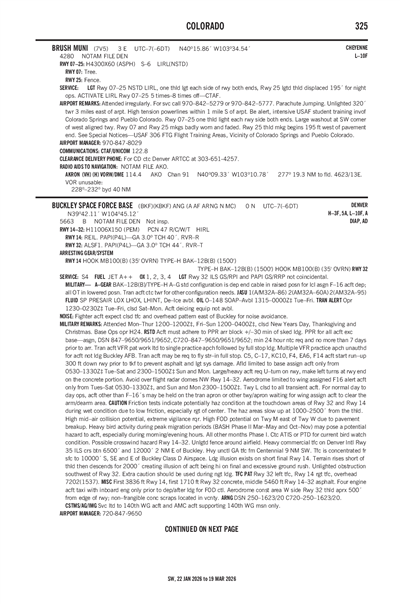

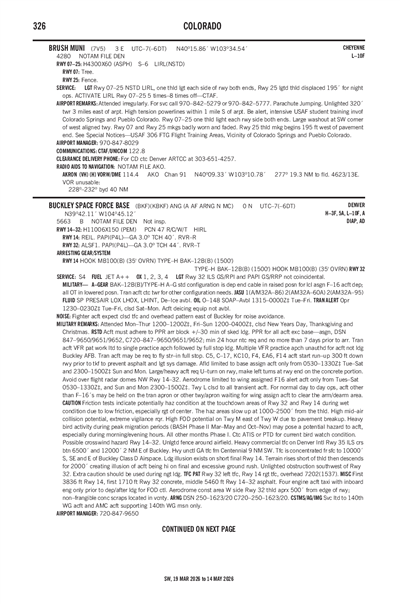

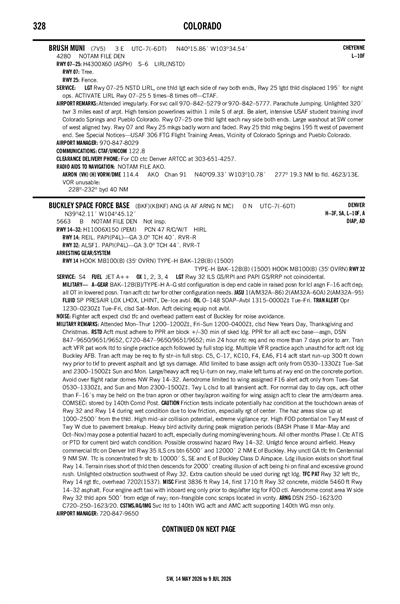

FAA A/FD Pages

Terminal Area Forecast

KDEN (56nm)
Sat, 4/4 11:38 AM MDT
Sat, 4/4 12:00 PM MDT - Sun, 4/5 6:00 PM MDT
VFR
12:00 PM MDT - 3:00 PM MDT
Few 9,000'
Few 6,000'
6sm
030° 7kts
VFR
3:00 PM MDT - 7:00 PM MDT
Few 9,000'
6sm
360° 8kts
VFR
7:00 PM MDT - 10:00 PM MDT
Few 9,000'
6sm
050° 8kts
VFR
10:00 PM MDT - 3:00 AM MDT
Scattered 10,000'
6sm
110° 7kts
VFR
3:00 AM MDT - 6:00 AM MDT
Sky Clear
6sm
330° 5kts
VFR
6:00 AM MDT - 11:00 AM MDT
Sky Clear
6sm
VRB° 6kts
VFR
11:00 AM MDT - 4:00 PM MDT
Few 22,000'
6sm
130° 8kts
VFR
4:00 PM MDT - 6:00 PM MDT
Few 22,000'
6sm
070° 8kts
TAF KDEN 041738Z 0418/0524 03007KT P6SM FEW060 FEW090
   FM042100 36008KT P6SM FEW090
   FM050100 05008KT P6SM FEW090
   FM050400 11007KT P6SM SCT100
   FM050900 33005KT P6SM SKC
   FM051200 VRB06KT P6SM SKC
   FM051700 13008KT P6SM FEW220
   FM052200 07008KT P6SM FEW220
7V5
EffectiveExpiresCategoryNOTAM
Domestic
3/19/26
1634Z
5/19/26
2359Z
!DEN 03/654 7V5 OBST TOWER LGT (ASR 1267049) 395033.20N1035304.80W (28.89NM SSW 7V5) 5430FT (350FT AGL) U/S 2603191634-2605192359
No
IREG
FOR SVC CALL 970-842-5279 OR 907-842-5777.
CITY OF BRUSH
PO BOX 363
BRUSH, CO 80723
Phone: 970-842-5001
CITY OF BRUSH/TYLER PURVIS
PO BOX 363
BRUSH, CO 80723
Phone: 970-847-8029
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
DUSK-DAWN, ACTVT LIRL RWY 07/25 5 TIMES - 8 TIMES OFF - CTAF.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

4300 ft. x 60 ft.
ASPH
Fair
NONE
NSTD

6,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 83°263°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 40° 15' 49"N 40° 15' 54"N
Longitude 103° 34' 60"W 103° 34' 05"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RY 07 END - 810 FT ALIGNED TAXIWAY WITH RY - FOR TAXIING ONLY.
A110-3RY 25 HAS +4 FT FENCE AT VARIOUS TERRAIN HEIGHTS AS CLOSE AS 70 FT L OF CNTRLN FULL LENGTH OF RY.
A110-4HIGH TENSION POWERLINES WITHIN 1 MI S OF ARPT.
A110-5LARGE WASHOUT AT SW CORNER OF WEST ALIGNED TWY.
A110-6UNLGTD 320 FT TWR 3 MILES EAST OF ARPT.
A110-7BE ALERT; INTENSIVE USAF STUDENT TRAINING IN VICINITY OF COLORADO SPRINGS & PUEBLO COLORADO.
A110-8FOR CD CTC DENVER ARTCC AT 303-651-4257.
A17-M1FOR SVC CALL 970-842-5279 OR 907-842-5777.
A40-07/25NSTD LIRL; ONE THLD LGT EACH SIDE OF RWY BOTH ENDS; RWY 25 LGTD THLD DISPLACED 195 FT FOR NIGHT OPNS.
A42-07_CONDRWY MKGS BADLY WORN AND FADED.
A42-25_CONDRWY MKGS BADLY WORN AND FADED.
A42-25_MARKTHLD MKG BEGINS 195 FT WEST OF PAVEMENT END.
A57-2510 FT FENCE 550 FT FM DTHR, OB; 34:1 SLOPE TO DTHR.
A58-255 FT FENCE 95 FT FM END OF PAVEMENT OB; 7 FT FENCE 70 FT LEFT OF AND PARL TO CNTRLN; 8 FT SIGN 150 FT FM END OF PAVEMENT, 60 FT LEFT OF CNTRLN.
A81-APTDUSK-DAWN, ACTVT LIRL RWY 07/25 5 TIMES - 8 TIMES OFF - CTAF.
E111EXISTED PRIOR TO 1959.
BRUSH MUNI (IATA: 7V5) is a public airport located in BRUSH, CO, US.
