iFlightPlanner



...

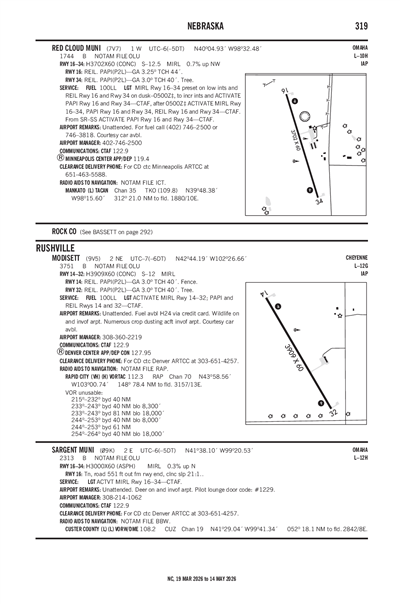

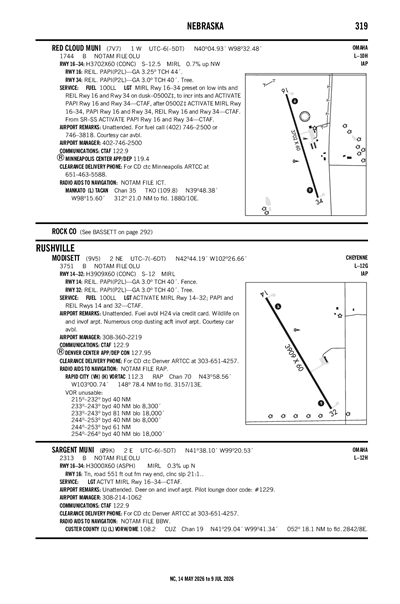

RED CLOUD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7V7
RED CLOUD MUNI
PublicPUB

1 miles W of RED CLOUD, NE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 04' 56"N 98° 32' 29"W
1744' MSL
2744' MSL
05E
100LL
COLUMBUS (OLU)
OMAHA
MINNEAPOLIS (ZMP)
4/18/24-5/16/24
KK82 (23nm) VFR
3:55 AM CDT
Broken 7,000'
Scattered 4,400'
10sm
57°F
41°F
29.97"Hg
120° 12kts
AO2 TSNO T01400052
KK82 250855Z AUTO 12012KT 10SM SCT044 BKN070 14/05 A2997 RMK AO2 TSNO T01400052
List Your Business

7V7 FBOs, Flight Schools and Ground Support

Promote Listing
Red Cloud Municipal Airport
Freq: 122.9
Phone: (402) 746-3297
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/22
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.95
Full Serve

7V7 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

7V7 Hotels

No hotels are listed for this airport.

7V7 Restaurants

No restaurants are listed for this airport.

7V7 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEAR (44nm)
Thu, 4/25 12:39 AM CDT
Thu, 4/25 1:00 AM CDT - Fri, 4/26 1:00 AM CDT
VFR
1:00 AM CDT - 7:00 AM CDT
Broken 5,000'
6sm
140° 11kts
VFR
7:00 AM CDT - 11:00 AM CDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 3,500'
6sm
140° 13kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Mist
Overcast 1,200'
6sm
140° 17kts
Gusts 25kts
IFR
1:00 PM CDT - 3:00 PM CDT
Mist
Overcast 600'
6sm
130° 18kts
Gusts 27kts
IFR
3:00 PM CDT - 8:00 PM CDT
Overcast 700'
6sm
130° 19kts
Gusts 27kts
IFR
8:00 PM CDT - 1:00 AM CDT
Light Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 600'
6sm
130° 20kts
Gusts 30kts
KEAR 250539Z 2506/2606 14011KT P6SM BKN050
   FM251200 14013KT P6SM -SHRA VCTS OVC035CB
   FM251600 14017G25KT 6SM BR OVC012
   FM251800 13018G27KT 6SM BR OVC006
   FM252000 13019G27KT P6SM OVC007
   FM260100 13020G30KT 6SM -SHRA BR VCTS OVC006CB
7V7
Domestic
2/15/241655Z !OLU 02/081 7V7 OBST TOWER LGT (ASR 1252355) 400614.80N0983003.80W (2.3NM NE 7V7) 2061.0FT (250.0FT AGL) U/S 2402151655-2405152359
11/21/232123Z !OLU 11/073 7V7 RWY 34 RWY END ID LGT U/S 2311212123-2405212111EST
No
UNATNDD
RED CLOUD AIRPORT AUTHORITY
241 WEST 4TH AVENUE
RED CLOUD, NE 68970-2357
Phone: 402-746-2500
DAYRE WILLIAMS
241 WEST 4TH AVENUE
RED CLOUD, NE 68970-2357
Phone: 402-746-3297
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
OLU
--
DUSK-2300. MIRL RY 16/34 PRESET ON LOW INTST AND REIL RY 16/34 ON DUSK-2300; TO INCR INTST AND ACTVT PAPI RY 16/34 - CTAF; AFTER 2300 ACTVT MIRL RY 16/34, PAPI RY 16/34 AND REIL RY 16/34 - CTAF. FROM SR TO SS ACTVT PAPI RY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 16/34

3702 ft. x 60 ft.
CONC
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 163°343°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 05' 13"N 40° 04' 38"N
Longitude 98° 32' 36"W 98° 32' 22"W
Elevation 1,744' 1,717'
Threshold Crossing Height 44 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.25° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-2COURTESY CAR AVBL.
RED CLOUD MUNI (IATA: 7V7) is a public airport located in RED CLOUD, NE.
