iFlightPlanner



...

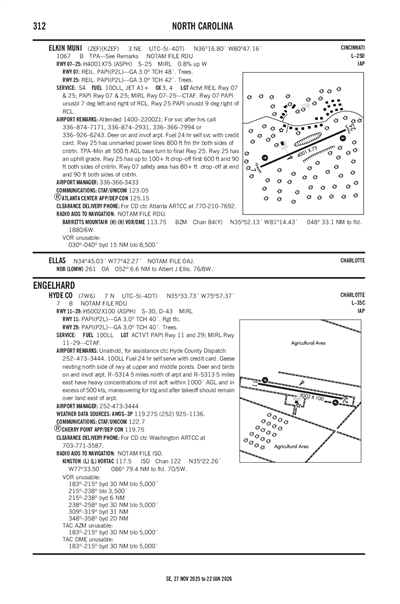

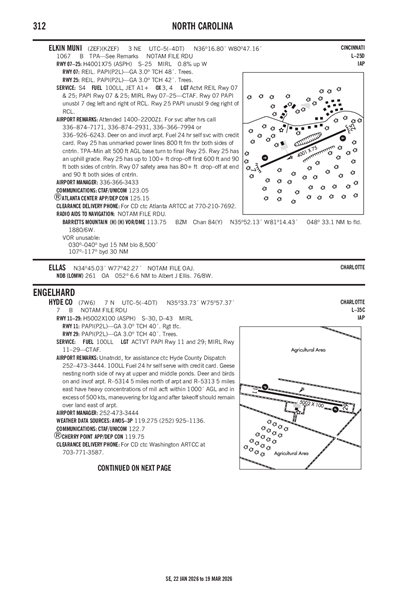

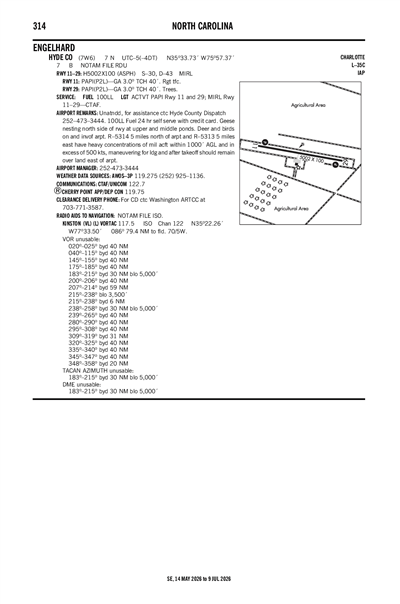

HYDE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7W6
Local 7W6
HYDE COUNTY
PublicPUB

7 miles N of ENGELHARD, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 33' 44"N 75° 57' 22"W
Elevation
7' MSL
Pattern Alt
1007' MSL
Mag Variation
11°W
Declination
9°W
Fuel
100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
K7W6 VFR
11:35 AM EDT
Overcast 5,000'
Broken 4,100'
10sm
67°F
57°F
30.25"Hg
100° 14kts
Gusts 19kts
AO2 T01940138
METAR K7W6 151535Z AUTO 10014G19KT 10SM BKN041 OVC050 19/14 A3025 RMK AO2 T01940138
+ Add Your Business

7W6 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 119.275
(252) 925-1136

Common

CTAF 122.7
ACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
UNICOM 122.7

Approach

CHERRY POINT APPROACH 119.75

Departure

CHERRY POINT DEPARTURE 119.75

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KECG (43nm)
Sun, 3/15 7:20 AM EDT
Sun, 3/15 8:00 AM EDT - Mon, 3/16 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Sky Clear
6sm
100° 11kts
VFR
11:00 AM EDT - 2:00 PM EDT
Scattered 4,000'
6sm
110° 14kts
Gusts 20kts
VFR
2:00 PM EDT - 5:00 PM EDT
Broken 4,000'
6sm
120° 15kts
Gusts 23kts
MVFR
5:00 PM EDT - 8:00 PM EDT
Light Showers and Rain
Broken 2,500'
6sm
110° 14kts
Gusts 22kts
IFR
8:00 PM EDT - 11:00 PM EDT
Light Showers and Rain
Broken 500'
5sm
130° 12kts
IFR
11:00 PM EDT - 4:00 AM EDT
Broken 700'
6sm
160° 12kts
VFR
4:00 AM EDT - 8:00 AM EDT
Broken 3,500'
6sm
180° 12kts
TAF KECG 151120Z 1512/1612 10011KT P6SM SKC
   FM151500 11014G20KT P6SM SCT040
   FM151800 12015G23KT P6SM BKN040
   FM152100 11014G22KT 6SM -SHRA BKN025
   FM160000 13012KT 5SM -SHRA BKN005 WS020/15040KT
   FM160300 16012KT P6SM BKN007
   FM160800 18012KT P6SM BKN035
7W6
EffectiveExpiresCategoryNOTAM
Domestic
3/12/26
0104Z
4/13/26
2359Z
!RDU 03/135 7W6 OBST TOWER LGT (ASR 1306367) 352730.70N0762234.50W (21.48NM W 7W6) 311FT (310FT AGL) U/S 2603120104-2604132359
3/11/26
2043Z
4/10/26
2359Z
!RDU 03/133 7W6 OBST TOWER LGT (ASR 1279336) 354230.20N0754602.80W (12.9NM NE 7W6) 381.9FT (379.9FT AGL) U/S 2603112043-2604102359
3/9/26
1810Z
7/7/26
1810Z
!RDU 03/098 7W6 OBST TOWER LGT (ASR 1025104) 352513.00N0762034.20W (20.9NM WSW 7W6) 362.9FT (359.9FT AGL) U/S 2603091810-2607071810
2/2/26
1913Z
4/2/26
2359Z
!RDU 02/098 7W6 OBST TOWER LGT (ASR 1255301) 352900.60N0760051.20W (5.6NM SSW 7W6) 327.1FT (325.1FT AGL) U/S 2602021913-2604022359
No
UNATNDD
FOR ASSISTANCE CTC HYDE COUNTY DISPATCH 252-473-3444.
HYDE COUNTY
PO BOX 95
SWAN QUARTER, NC 27885
Phone: 252-473-3444
JOHNNY GIBBS
PO BOX 189
SWAN QUARTER, NC 27885
Phone: 252-473-3444
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
ACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 11/29

5002 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
43,000lbs
--
--
  Runway 11 Runway 29
True Heading 100°280°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 33' 48"N 35° 33' 39"N
Longitude 75° 57' 52"W 75° 56' 52"W
Elevation 6' 7'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2R5314 5 MI NORTH OF ARPT AND R5313 5 MI EAST HAVE HVY CONCENTRATIONS OF MIL ACFT WI 1000 FT AGL AND IN EXCESS OF 500 KTS. MNVRNG FOR LDG AND AFT TKOF SHOULD RMN OVER LAND EAST OF ARPT.
A110-4DEER & BIRDS ON & INVOF ARPT.
A110-5GEESE NESTING NORTH SIDE OF RWY AT UPPER AND MIDDLE PONDS.
A110-6FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A17-M1FOR ASSISTANCE CTC HYDE COUNTY DISPATCH 252-473-3444.
A70-100LL24 HR SELF SERVE WITH CREDIT CARD.
A81-APTACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
HYDE COUNTY (IATA: 7W6) is a public airport located in ENGELHARD, NC, US.
