7Y4
BAGLEY MUNI
Public
PUB
1 miles E of BAGLEY, MN
View on
Map
Status
Operational
Coordinates
47° 31' 27"N
95° 21' 49"W
Elevation
1503' MSL
Pattern Alt
2503' MSL
Mag Variation
05E
Fuel
None Listed
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
4/18/24-5/16/24
KFSE (17nm)
IFR
2:35 PM CDT
RAW
Light Snow
Overcast 2,600'
Broken 1,900'
Scattered 1,200'
Viz
2.5sm
Temp
30°F
Dew
25°F
Pres
30.03"Hg
Wind
290° 15kts
Gusts 20kts
RMK
AO2
KFSE 191935Z AUTO 29015G20KT 2 1/2SM -SN SCT012 BKN019 OVC026 M01/M04 A3003 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
7Y4 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
7Y4 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
7Y4 Hotels
No hotels are listed for this airport.
7Y4 Restaurants
No restaurants are listed for this airport.
7Y4 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.
FAA A/FD Pages
FAA A/FD Page

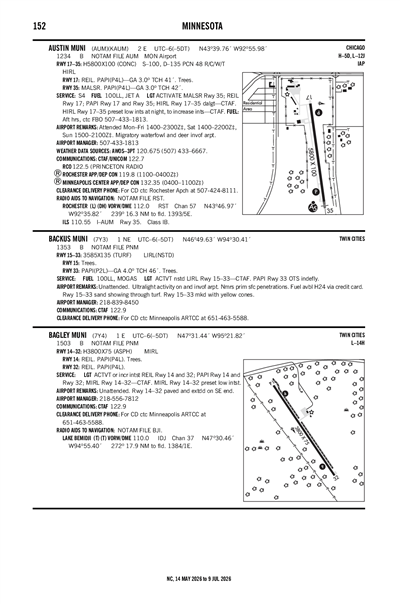

Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KBJI (18nm)
RAW
Reported
Fri, 4/19 12:34 PM CDT
Valid
Fri, 4/19 1:00 PM CDT - Sat, 4/20 1:00 PM CDT
VFR
1:00 PM CDT - 4:00 PM CDT
Broken 3,500'
Scattered 2,500'
Viz
6sm
Wind
270° 16kts
Gusts 22kts
MVFR
4:00 PM CDT - 8:00 PM CDT
Light Snow
Broken 3,500'
Viz
4sm
Wind
310° 15kts
Gusts 23kts
MVFR
8:00 PM CDT - 2:00 AM CDT
Overcast 2,700'
Viz
6sm
Wind
310° 12kts
Gusts 20kts
MVFR
2:00 AM CDT - 9:00 AM CDT
Broken 2,500'
Viz
6sm
Wind
310° 12kts
VFR
9:00 AM CDT - 1:00 PM CDT
Scattered 25,000'
Viz
6sm
Wind
310° 11kts
KBJI 191734Z 1918/2018 27016G22KT P6SM SCT025 BKN035
FM192100 31015G23KT 4SM -SN BKN035
FM200100 31012G20KT P6SM OVC027
FM200700 31012KT P6SM BKN025
FM201400 31011KT P6SM SCT250
7Y4
Domestic
4/4/24
1156Z
!PNM 04/062 7Y4 OBST TOWER LGT (ASR 1040567) 473533.00N0952541.00W (4.9NM NNW 7Y4) 1980.0FT (419.9FT AGL) U/S 2404041156-2405042300
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF BAGLEY
PO BOX 178
BAGLEY, MN 56621-0178
Phone: 218-694-2865
Manager
BILL MASTERSON
PO BOX 178
BAGLEY, MN 56621-0178
Phone: 218-556-7812
FSS
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
NOTAM
PNM
Light Schedule
--
Lights
ACTVT OR INCR INTST REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF. MIRL RWY 14/32 PRESET LOW INTST.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
4
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 14/32
Dimensions
3800 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 14
Runway 32
True Heading
146°
326°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
47° 31' 42"N
47° 31' 11"N
Longitude
95° 22' 05"W
95° 21' 34"W
Elevation
1,497'
1,503'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
BAGLEY MUNI (IATA: 7Y4) is a public airport located in BAGLEY, MN.
