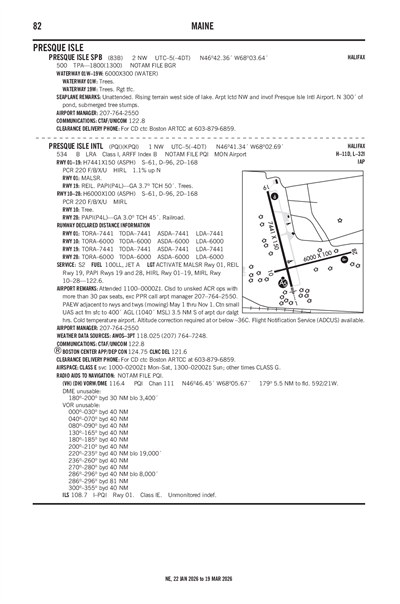

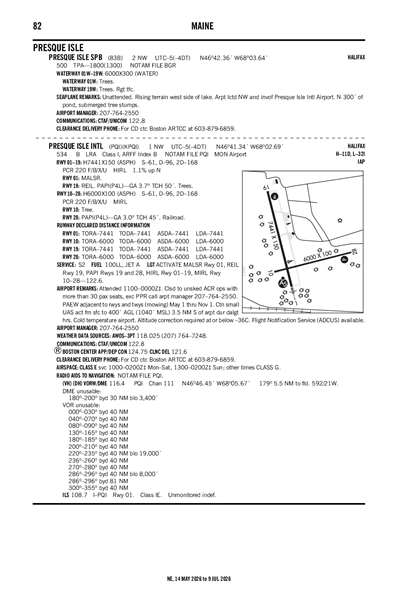

PRESQUE ISLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

83B
Local 83B
PRESQUE ISLE
PublicPUB

2 miles NW of PRESQUE ISLE, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 42' 21"N 68° 03' 38"W
Elevation
500' MSL
Pattern Alt
1800' MSL
Mag Variation
16°W
Declination
20°W
Fuel
None Listed
FSS
BANGOR (BGR)
Sectional
HALIFAX
ARTCC
BOSTON (ZBW)
Data Effective
3/19/26-4/16/26
KPQI MVFR
11:56 AM EDT
Overcast 3,000'
10sm
32°F
21°F
30.46"Hg
030° 8kts
AO2 SLP348 T00001061
METAR KPQI 041556Z AUTO 03008KT 360V060 10SM OVC030 00/M06 A3046 RMK AO2 SLP348 T00001061
+ Add Your Business

83B FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KPQI
Sat, 4/4 7:20 AM EDT
Sat, 4/4 8:00 AM EDT - Sun, 4/5 8:00 AM EDT
MVFR
8:00 AM EDT - 11:00 AM EDT
Overcast 2,000'
6sm
010° 10kts
Gusts 20kts
VFR
11:00 AM EDT - 4:00 PM EDT
Scattered 2,300'
6sm
020° 8kts
VFR
4:00 PM EDT - 12:00 AM EDT
Scattered 6,000'
6sm
020° 7kts
MVFR
12:00 AM EDT - 4:00 AM EDT
Mist and Showers in vicinity
Overcast 5,000'
5sm
140° 9kts
IFR
4:00 AM EDT - 8:00 AM EDT
Light Snow and Ice Pellets and Mist
Overcast 1,500'
2sm
140° 16kts
Gusts 29kts
TAF KPQI 041120Z 0412/0512 01010G20KT P6SM OVC020
   FM041500 02008KT P6SM SCT023
   FM042000 02007KT P6SM SCT060
   FM050400 14009KT 5SM BR VCSH OVC050
   FM050800 14016G29KT 2SM -SNPL BR OVC015 WS020/16045KT
83B
EffectiveExpiresCategoryNOTAM
Domestic
3/16/26
1506Z
5/16/26
2359Z
!BGR 03/164 83B OBST TOWER LGT (ASR 1020842) 463924.00N0682328.00W (13.7NM WSW 83B) 1344.8FT (424.9FT AGL) U/S 2603161506-2605162359
No
UNATDD
FBO SERVICES AVBL: 207-764-2555.
CITY OF PRESQUE ISLE
12 SECOND ST
PRESQUE ISLE, ME 04769
Phone: 207-760-2785
SCOTT WARDWELL
650 AIRPORT DR, SUITE 11
PRESQUE ISLE, ME 04769
Phone: 207-764-2550
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
--
N/A
No
No
No
Tie-Down
No
None
None
None
None
None

Runway 01W/19W

6000 ft. x 300 ft.

WATER
NONE


--
--
--
--
  Runway 01W Runway 19W
True Heading 358°178°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 46° 41' 52"N 46° 42' 51"N
Longitude 68° 03' 36"W 68° 03' 40"W
Elevation 500' 500'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT LCTD NW AND INVOF PRESQUE ISLE INTL AIRPORT.
A110-2RISING TERRAIN WEST SIDE OF LAKE.
A110-3FOR CD CTC BOSTON ARTCC AT 603-879-6859.
A110-4N 300 FT OF POND, SUBMERGED TREE STUMPS.
A16EMERGENCY PHONE: 207-764-2538.
A17-M1FBO SERVICES AVBL: 207-764-2555.
A57-01WCONTROLLING OBSTN EXCEEDS A 45 DEGREE SLP.
A75-HMORING EYE ON LARGE ROCK AT BOAT RAMP.
E111VFR WX CONDS ONLY.
PRESQUE ISLE (IATA: 83B) is a public seaplane base located in PRESQUE ISLE, ME, US.
