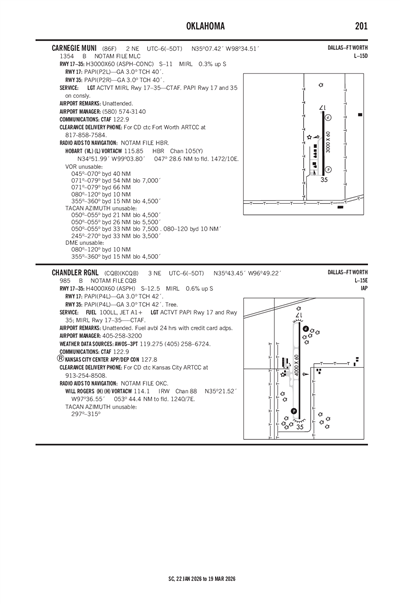

CARNEGIE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

86F
CARNEGIE MUNI
PublicPUB

2 miles NE of CARNEGIE, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 07' 25"N 98° 34' 31"W
1354' MSL
2354' MSL
07E
None Listed
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
4/18/24-5/16/24
KHBR (25nm) VFR
2:53 AM CDT
Broken 6,000'
Broken 5,000'
10sm
70°F
66°F
29.95"Hg
180° 19kts
AO2 PK WND 18026/0753 SLP128 T02110189
KHBR 250753Z AUTO 18019KT 10SM BKN050 BKN060 21/19 A2995 RMK AO2 PK WND 18026/0753 SLP128 T02110189
List Your Business

86F FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

86F Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

86F Hotels

No hotels are listed for this airport.

86F Restaurants

No restaurants are listed for this airport.

86F Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KCSM (34nm)
Thu, 4/25 12:20 AM CDT
Thu, 4/25 1:00 AM CDT - Fri, 4/26 1:00 AM CDT
VFR
1:00 AM CDT - 2:00 AM CDT
Overcast 4,000'
6sm
120° 10kts
Gusts 18kts
MVFR
2:00 AM CDT - 7:00 AM CDT
Overcast 2,000'
6sm
150° 11kts
IFR
7:00 AM CDT - 11:00 AM CDT
Broken 800'
6sm
160° 12kts
Gusts 18kts
IFR
11:00 AM CDT - 1:00 PM CDT
Mist
Overcast 500'
5sm
180° 15kts
Gusts 24kts
IFR
1:00 PM CDT - 9:00 PM CDT
Mist
Broken 700'
5sm
180° 19kts
Gusts 29kts
LIFR
1:00 PM CDT - 7:00 PM CDT
Heavy Thunderstorm and Rain and Mist
Overcast 400'
2sm
Calm
IFR
9:00 PM CDT - 1:00 AM CDT
Light Showers and Rain
Broken 900'
6sm
160° 19kts
Gusts 28kts
LIFR
9:00 PM CDT - 10:00 PM CDT
Heavy Thunderstorm and Rain and Mist
Overcast 400'
4sm
Calm
KCSM 250520Z 2506/2606 12010G18KT P6SM OVC040
   FM250700 15011KT P6SM OVC020
   FM251200 16012G18KT P6SM BKN008
   FM251600 18015G24KT 5SM BR OVC005
   FM251800 18019G29KT 5SM BR BKN007
   PROB30 2518/2524 2SM +TSRA BR OVC004CB
   FM260200 16019G28KT P6SM -SHRA BKN009
   PROB30 2602/2603 4SM +TSRA BR OVC004CB
86F
Domestic
4/23/240535Z !MLC 04/263 86F OBST TOWER LGT (ASR 1272363) 345537.60N0983452.30W (11.8NM S 86F) 1934.1FT (349.1FT AGL) U/S 2404230535-2405080435
4/10/241525Z !MLC 04/140 86F OBST TOWER LGT (ASN 2021-ASW-7580-OE) 350560N0984403W (8.0NM W 86F) 1674FT (340FT AGL) U/S 2404101525-2405251515
4/10/241451Z !MLC 04/114 86F OBST TOWER LGT (ASN 2018-ASW-847-OE) 351021N0984735W (11.1NM WNW 86F) 1852FT (335FT AGL) U/S 2404101451-2405251445
1/30/242323Z !MLC 01/359 86F OBST WIND TURBINE LGT (ASN 2010-WTW-13958-OE) 345437N0983336W (12.8NM S 86F) 2330FT (481FT AGL) U/S 2401302323-2412312359
No
UNATNDD
CITY OF CARNEGIE
PO BOX 1075, 11 E MAIN
CARNEGIE, OK 73015
Phone: 580-654-1004
ROBERT PETTIT
30150 COUNTY STREET 2475
CARNEGIE, OK 73015
Phone: (580) 574-3140
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
ACTVT MIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
8
0
0
3
0
0
None
None
None
None
Crop Dusting

Runway 17/35

3000 ft. x 60 ft.
ASPH CONC
Good
NONE
MED

11,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 07' 40"N 35° 07' 10"N
Longitude 98° 34' 31"W 98° 34' 31"W
Elevation 1,346' 1,355'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
CARNEGIE MUNI (IATA: 86F) is a public airport located in CARNEGIE, OK.
