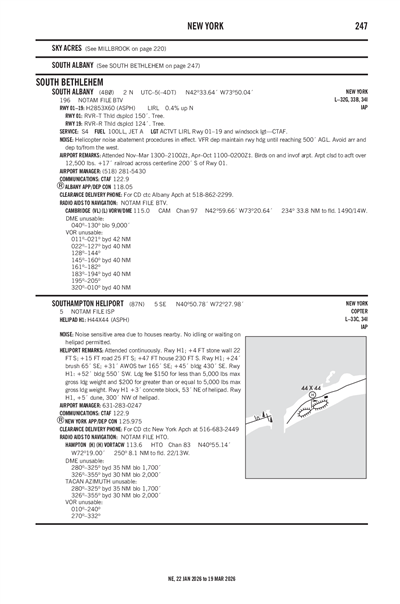

SOUTHAMPTON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

87N
SOUTHAMPTON
PublicPUB

5 miles SE of SOUTHAMPTON, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 50' 47"N 72° 27' 59"W
5' MSL
1005' MSL
14W
None Listed
NEW YORK (ISP)
NEW YORK
NEW YORK (ZNY)
12/25/25-1/22/26
KJPX (12nm) VFR
10:15 AM EST
Scattered 1,600'
10sm
46°F
38°F
30.30"Hg
180° 8kts
AO2 T00770036
METAR KJPX 091515Z AUTO 18008KT 10SM SCT016 08/04 A3030 RMK AO2 T00770036
+ Add Your Business

87N FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KISP (29nm)
Fri, 1/9 9:38 AM EST
Fri, 1/9 10:00 AM EST - Sat, 1/10 7:00 AM EST
VFR
10:00 AM EST - 4:00 PM EST
Scattered 20,000'
Scattered 15,000'
6sm
180° 10kts
VFR
4:00 PM EST - 6:00 PM EST
Broken 3,500'
Scattered 1,500'
6sm
180° 11kts
MVFR
6:00 PM EST - 10:00 PM EST
Mist and Showers in vicinity
Broken 1,500'
Scattered 600'
6sm
180° 12kts
IFR
Temporary 6:00 PM EST - 10:00 PM EST
Light Showers and Rain and Mist
Overcast 600'
Scattered 400'
4sm
Calm
IFR
Temporary 10:00 PM EST - 12:00 AM EST
Broken 600'
N/A
Calm
MVFR
10:00 PM EST - 1:00 AM EST
Mist
Broken 1,200'
Scattered 600'
5sm
230° 10kts
VFR
1:00 AM EST - 4:00 AM EST
Broken 25,000'
Scattered 4,000'
Scattered 1,500'
6sm
300° 6kts
VFR
4:00 AM EST - 7:00 AM EST
Broken 25,000'
6sm
340° 5kts
TAF KISP 091438Z 0915/1012 18010KT P6SM SCT150 SCT200
   FM092100 18011KT P6SM SCT015 BKN035
   FM092300 18012KT 6SM BR VCSH SCT006 BKN015 WS020/22050KT
   TEMPO 0923/1003 4SM -SHRA BR SCT004 OVC006
   FM100300 23010KT 5SM BR SCT006 BKN012
   TEMPO 1003/1005 BKN006
   FM100600 30006KT P6SM SCT015 SCT040 BKN250
   FM100900 34005KT P6SM BKN250
87N
EffectiveExpiresCategoryNOTAM
FDC
4/8/25
1524Z
!FDC 5/3561 87N IAP SOUTHAMPTON, SOUTHAMPTON, NY.
COPTER RNAV (GPS) 190, ORIG-B...
LNAV MDA 620/HAS 613.
2504081524-2704081524EST
No
ALL
VILLAGE OF SOUTHAMPTON
23 MAIN ST
SOUTHAMPTON, NY 11968
Phone: 631-283-0247
RUSSEL KRATOVILLE
23 MAIN ST
SOUTHAMPTON, NY 11968
Phone: 631-283-0247
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
ISP
--
--
N/A
Yes
No
Yes
None
No
None
None
None
None
None

Runway H1

44 ft. x 44 ft.
ASPH
Excellent
NONE


--
--
--
--
  Runway H1 Runway
True Heading 102°282°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 40° 50' 47"N N/A
Longitude 72° 27' 59"W N/A
Elevation 5' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR CD CTC NEW YORK APCH AT 516-683-2449
A110-11RWY H1 +3 FT CONCRETE BLOCK, 53 FT NE OF HELIPAD
A110-12RWY H1, + 5 FT DUNE, 300 FT NW OF HELIPAD
A110-2NOISE SENSITIVE AREA DUE TO HOUSES NEARBY.
A110-3NO IDLING OR WAITING ON HELIPAD PERMITTED.
A110-4RWY H1; +4 FT STONE WALL 22 FT S; +15 FT RD 25 FT S; +47 FT HOUSE 230 FT S.
A110-6RWY H1; +24 FT BRUSH 65 FT SE; +31 FT AWOS TWR 165 FT SE; +45 FT BLDG 430 FT SE.
A110-9RWY H1; +52 FT BLDG 550 FT SW.
SOUTHAMPTON (IATA: 87N) is a public heliport located in SOUTHAMPTON, NY.
