PALMYRA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

88C
Local 88C
PALMYRA MUNI
PublicPUB

0 miles NW of PALMYRA, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 53' 01"N 88° 35' 58"W
Elevation
851' MSL
Pattern Alt
1851' MSL
Mag Variation
3°W
Declination
1°W
Fuel
None Listed
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
5/14/26-6/11/26
K57C (12nm) VFR
3:15 PM CDT
Clear
10sm
84°F
45°F
30.00"Hg
190° 13kts
Gusts 16kts
AO2 T02890071
METAR K57C 042015Z AUTO 19013G16KT 160V220 10SM CLR 29/07 A3000 RMK AO2 T02890071
+ Add Your Business

88C FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
PRESET TO REDUCED INTST SS-SR, TO INCR INTST & ACTVT LIRL RWY 09/27 - CTAF.

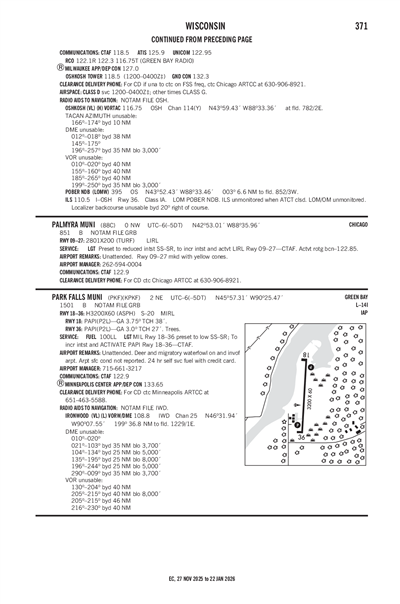

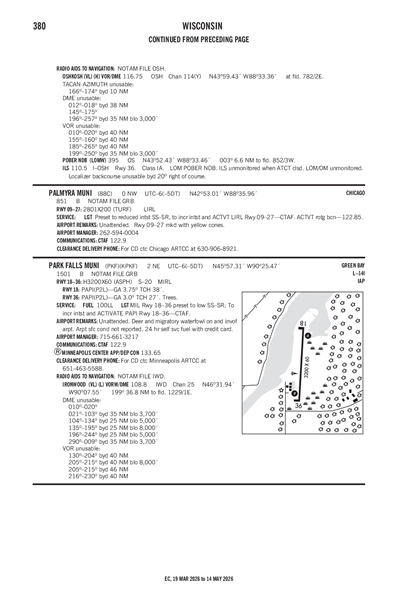

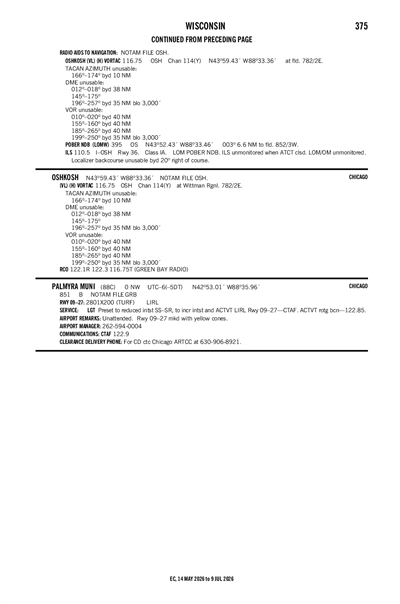

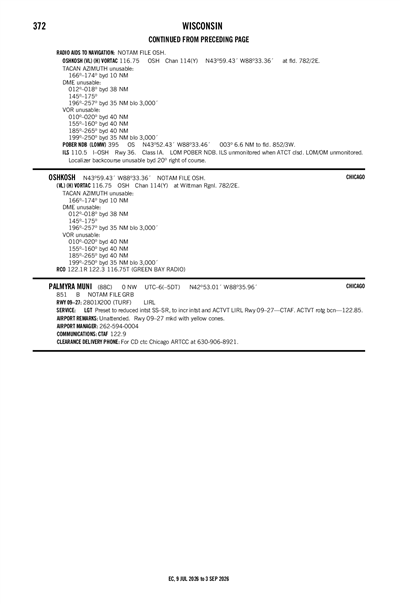

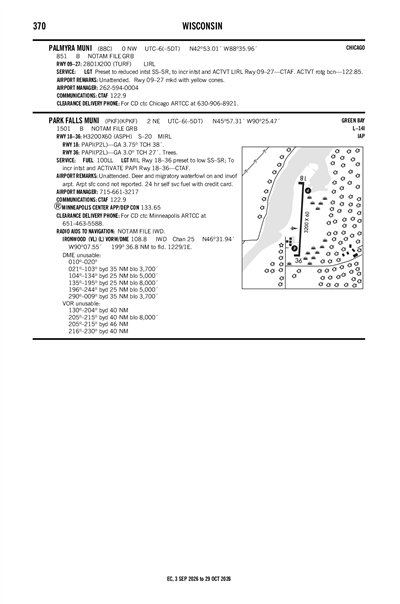

FAA A/FD Pages

Terminal Area Forecast

KUES (18nm)
Thu, 6/4 2:49 PM CDT
Thu, 6/4 3:00 PM CDT - Fri, 6/5 1:00 PM CDT
VFR
3:00 PM CDT - 7:00 PM CDT
Sky Clear
6sm
210° 10kts
Gusts 18kts
VFR
7:00 PM CDT - 5:00 AM CDT
Broken 25,000'
6sm
180° 8kts
VFR
5:00 AM CDT - 7:00 AM CDT
Light Rain
Overcast 4,500'
6sm
VRB° 4kts
MVFR
7:00 AM CDT - 10:00 AM CDT
Light Rain
Overcast 1,800'
6sm
190° 5kts
IFR
7:00 AM CDT - 10:00 AM CDT
Light Thunderstorm and Rain
Overcast 1,000'
2sm
Calm
MVFR
10:00 AM CDT - 1:00 PM CDT
Overcast 2,500'
6sm
200° 9kts
IFR
10:00 AM CDT - 1:00 PM CDT
Showers and Rain
Overcast 1,500'
2sm
Calm
TAF KUES 041949Z 0420/0518 21010G18KT P6SM SKC
   FM050000 18008KT P6SM BKN250
   FM051000 VRB04KT 6SM -RA OVC045
   FM051200 19005KT 6SM -RA OVC018
   PROB30 0512/0515 2SM -TSRA OVC010CB
   FM051500 20009KT P6SM OVC025
   PROB30 0515/0518 2SM SHRA OVC015
88C
EffectiveExpiresCategoryNOTAM
Domestic
5/30/26
1638Z
7/30/26
2359Z
!GRB 05/414 88C OBST TOWER LGT (ASR 1047466) 425534.00N0883805.00W (3.0NM NNW 88C) 1094.8FT (194.9FT AGL) U/S 2605301638-2607302359
No
UNATNDD
PALMYRA TOWNSHIP
P O BOX 163
PALMYRA, WI 53156
Phone: 262-495-4342
JEFF KORNETZKE
PO BOX 348
PALMYRA, WI 53156
Phone: 262-594-0004
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
PRESET TO REDUCED INTST SS-SR, TO INCR INTST & ACTVT LIRL RWY 09/27 - CTAF.
ACTVT ROTG BCN - 122.85.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
Pilot Instruction

Runway 09/27

2801 ft. x 200 ft.
TURF
Good
NONE
LOW

--
--
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 53' 00"N 42° 53' 01"N
Longitude 88° 36' 16"W 88° 35' 39"W
Elevation 848' 850'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A42-09_MARKMKD WITH YELLOW CONES.
A42-27_MARKMKD WITH YELLOW CONES.
A81-APTPRESET TO REDUCED INTST SS-SR, TO INCR INTST & ACTVT LIRL RWY 09/27 - CTAF.
A81-BCNACTVT ROTG BCN - 122.85.
E111EXISTED PRIOR TO 1959.
PALMYRA MUNI (IATA: 88C) is a public airport located in PALMYRA, WI, US.
