iFlightPlanner



...
TWIN MOUNTAIN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

8B2
Local 8B2
TWIN MOUNTAIN
PublicPUB

1 miles SW of TWIN MOUNTAIN, NH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 15' 51"N 71° 32' 48"W
Elevation
1459' MSL
Pattern Alt
2459' MSL
Mag Variation
14°W
Declination
17°W
Fuel
None Listed
FSS
BANGOR (BGR)
Sectional
MONTREAL
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KHIE (6nm) VFR
12:52 PM EST
Clear
10sm
34°F
20°F
30.05"Hg
320° 3kts
AO2 SLP199 I6000 T00111067 10017 21222 56030
METAR KHIE 221752Z AUTO 32003KT 10SM CLR 01/M07 A3005 RMK AO2 SLP199 I6000 T00111067 10017 21222 56030
+ Add Your Business

8B2 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

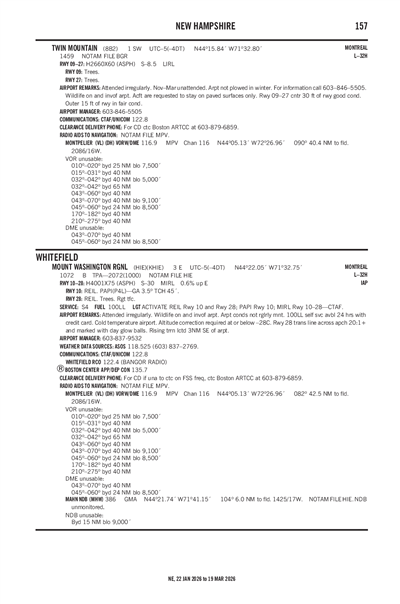

FAA A/FD Pages

Terminal Area Forecast

KHIE (6nm)
Sun, 2/22 12:30 PM EST
Sun, 2/22 1:00 PM EST - Mon, 2/23 1:00 PM EST
VFR
1:00 PM EST - 10:00 PM EST
Few 13,000'
6sm
VRB° 3kts
VFR
10:00 PM EST - 3:00 AM EST
Broken 5,000'
6sm
080° 5kts
MVFR
3:00 AM EST - 5:00 AM EST
Overcast 2,500'
6sm
070° 8kts
MVFR
5:00 AM EST - 11:00 AM EST
Light Snow and Mist
Overcast 2,000'
6sm
070° 9kts
MVFR
11:00 AM EST - 1:00 PM EST
Light Snow and Mist
Overcast 2,000'
3sm
040° 10kts
Gusts 19kts
TAF KHIE 221730Z 2218/2318 VRB03KT P6SM FEW130
   FM230300 08005KT P6SM BKN050
   FM230800 07008KT P6SM OVC025 WS019/08040KT
   FM231000 07009KT 6SM -SN BR OVC020 WS020/09040KT
   FM231600 04010G19KT 3SM -SN BR OVC020
8B2
EffectiveExpiresCategoryNOTAM
Domestic
11/11/25
2136Z
5/1/26
1300Z
!BGR 11/050 8B2 AD AP CLSD 2511112136-2605011300
No
IREG
NOV-MAR UNATNDD
DR. EVAN KARPF
PO BOX 97
TWIN MOUNTAIN, NH 03595
Phone: 603-846-5505
DR. EVAN KARPF
PO BOX 97
TWIN MOUNTAIN, NH 03595
Phone: 603-325-5420
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
--
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

2660 ft. x 60 ft.
ASPH
Good
NONE
LOW

8,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 74°254°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 44° 15' 47"N 44° 15' 54"N
Longitude 71° 33' 06"W 71° 32' 31"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ACFT ARE REQSTD TO STAY ON PAVED SFCS ONLY.
A110-2WILDLIFE ON & INVOF ARPT.
A110-3ARPT NOT PLOWED IN WINTER. FOR INFO CALL 603-846-5505.
A110-4FOR CD CTC BOSTON ARTCC AT 603-879-6859.
A33-09/27_CONDCNTR 30 FT OF RWY GOOD COND. OUTER 15 FT OF RWY IN FAIR COND.
A57-09CTLG OBTSN EXCEEDS A 45 DEG SLP.
A58-0926 TO 76 FT TREES 25 TO 100 FT L OF CNTRLN, 43 TO 120 FT FM THR; 26 TO 96 FT TREES BTN 20 AND 100 FT OF CNTRLN, 0 FT TO 100 FT FM THR WITH A CLRD AREA ON CNTRLN.
A58-274 TO 34 FT TREES 6 FT TO 106 FT L OF CNTRLN, 14 TO 165 FT FM THR; 6 TO 34 FT TREES 7 TO 34 FT R OF CNTRLN, 8 TO 165 FT FM THR WITH A CLRD AREA ON CNTRLN.
E111VFR OPNS ONLY.
TWIN MOUNTAIN (IATA: 8B2) is a public airport located in TWIN MOUNTAIN, NH, US.
