8D1

NEW HOLSTEIN MUNI

PublicPUB

1 miles W of NEW HOLSTEIN, WI

View on Map

Status

Operational

Coordinates

43° 56' 39"N 88° 06' 53"W

Elevation

992' MSL

Pattern Alt

1992' MSL

Mag Variation

03W

Fuel

100LL

FSS

GREEN BAY (GRB)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

4/18/24-5/16/24

KSBM (15nm) VFR

11:53 AM CDT RAW

Clear

Viz

10sm

Temp

68°F

Dew

55°F

Pres

29.72"Hg

Wind

VRB° 4kts

RMK

AO2 SLP061 T02000128

KSBM 081653Z AUTO VRB04KT 10SM CLR 20/13 A2972 RMK AO2 SLP061 T02000128

List Your Business

8D1 FBOs, Flight Schools and Ground Support

Promote Listing

Welch's Aviation Service

Freq: 123.0

Phone: (920) 219-0015

Other: (920) 898-5766

0 Reviews (Read | Sign In To Write)

Independent

As of 4/24	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	5.60
Full Serve

8D1 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

8D1 Hotels

No hotels are listed for this airport.

8D1 Restaurants

No restaurants are listed for this airport.

8D1 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 123.0 CTAF 123.0

No communication frequencies available for this airport.

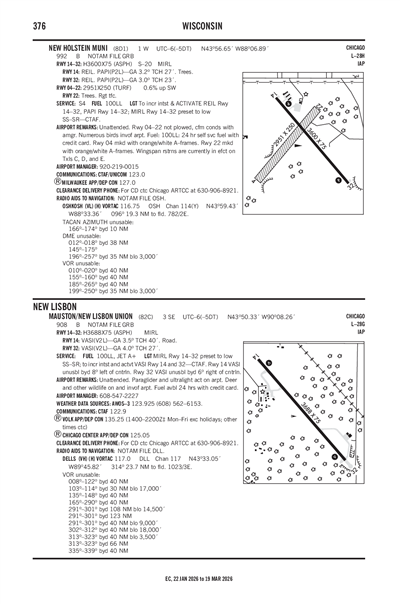

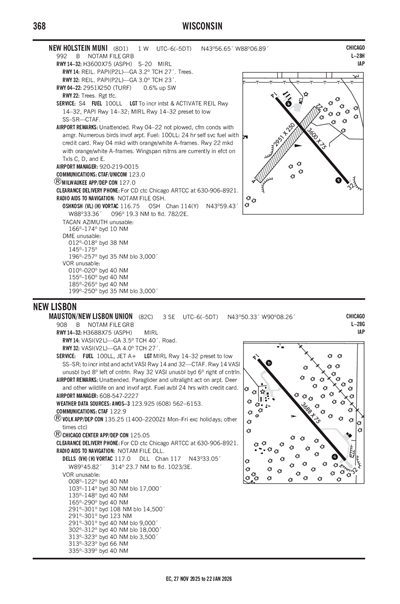

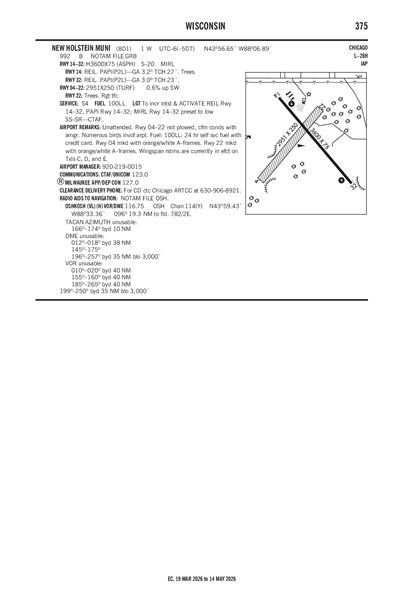

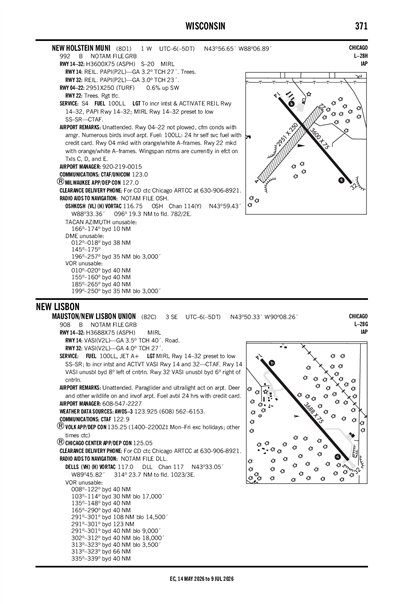

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KSBM (15nm)

RAW

Reported

Wed, 5/8 9:46 AM CDT

Valid

Wed, 5/8 10:00 AM CDT - Thu, 5/9 7:00 AM CDT

VFR

10:00 AM CDT - 3:00 PM CDT

Few 22,000'

Viz

6sm

Wind

300° 7kts

VFR

3:00 PM CDT - 7:00 PM CDT

Few 24,000'

Viz

6sm

Wind

090° 9kts

VFR

7:00 PM CDT - 10:00 PM CDT

Scattered 24,000'

Viz

6sm

Wind

060° 9kts

VFR

10:00 PM CDT - 3:00 AM CDT

Broken 11,000'

Viz

6sm

Wind

040° 9kts

MVFR

2:00 AM CDT - 3:00 AM CDT

Showers and Rain and Mist

Overcast 2,500'

Viz

4sm

Wind

Calm

VFR

3:00 AM CDT - 7:00 AM CDT

Showers and Rain and Mist

Broken 8,000'

Viz

6sm

Wind

040° 9kts

KSBM 081446Z 0815/0912 30007KT P6SM FEW220
   FM082000 09009KT P6SM FEW240
   FM090000 06009KT P6SM SCT240
   FM090300 04009KT P6SM BKN110
   PROB30 0907/0908 4SM SHRA BR OVC025
   FM090800 04009KT 6SM SHRA BR BKN080

8D1

Domestic
5/3/240342Z	!GRB 05/037 8D1 OBST TOWER LGT (ASN 2022-AGL-16453-OE) 434959N0881011W (7.1NM SSW 8D1) 1331FT (304FT AGL) U/S 2405030342-2406170341
4/30/240832Z	!GRB 04/631 8D1 OBST TOWER LGT (ASN 2023-AGL-7576-OE) 435235N0881524W (7.4NM WSW 8D1) 1331FT (307FT AGL) U/S 2404300832-2406140831
4/17/240315Z	!GRB 04/393 8D1 OBST TOWER LGT (ASR 1036867) 435829.20N0880325.50W (3.1NM NE 8D1) 1279.9FT (303.1FT AGL) U/S 2404170315-2405160001
3/29/242124Z	!GRB 03/391 8D1 OBST TOWER LGT (ASR 1260062) 435447.40N0880218.30W (3.8NM ESE 8D1) 1194.9FT (274.9FT AGL) U/S 2403292124-2405132115

ATC Tower

Attendance

UNATNDD

Owner

CITY OF NEW HOLSTEIN
2110 WASHINGTON ST
NEW HOLSTEIN, WI 53061
Phone: 920-898-5766

Manager

PERRY WELCH
2110 WASHINGTON ST
NEW HOLSTEIN, WI 53061
Phone: 920-219-0015

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

GRB

Light Schedule

Lights

TO INCR INTST & ACTVT REIL RWY 14/32; PAPI RWY 14/32; MIRL RWY 14/32 PRESET TO LOW SS-SR - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 04/22

Dimensions

2951 ft. x 250 ft.

Surface Type

TURF

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	41°	221°
Traffic Pattern	Left	Right
Markings	NONE	NONE
Markings Condition
Latitude	43° 56' 27"N	43° 56' 49"N
Longitude	88° 07' 13"W	88° 06' 46"W
Elevation	992'	974'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 14/32

Dimensions

3600 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

20,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	141°	321°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	43° 56' 53"N	43° 56' 25"N
Longitude	88° 07' 04"W	88° 06' 33"W
Elevation	977'	976'
Threshold Crossing Height	27 ft. AGL	23 ft. AGL
Visual Glide Path Angle	3.2°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-1	NUMEROUS BIRDS INVOF ARPT.
A110-5	FOR CD CTC CHICAGO ARTCC AT 630-906-8921.

NEW HOLSTEIN MUNI (IATA: 8D1) is a public airport located in NEW HOLSTEIN, WI.
