8J7
TOMLINSON FLD
Public
PUB
1 miles N of NEW ROCKFORD, ND
View on
Map
Status
Operational
Coordinates
47° 41' 47"N
99° 07' 52"W
Elevation
1533' MSL
Pattern Alt
2533' MSL
Mag Variation
08E
Fuel
None Listed
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
4/18/24-5/16/24
K46D (15nm)
VFR
5:15 PM CDT
RAW
Overcast 4,700'
Broken 3,800'
Viz
10sm
Temp
32°F
Dew
21°F
Pres
30.16"Hg
Wind
320° 22kts
Gusts 30kts
RMK
A01
K46D 192215Z AUTO 32022G30KT 10SM BKN038 OVC047 00/M06 A3016 RMK A01
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
8J7 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
8J7 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
8J7 Hotels
No hotels are listed for this airport.
8J7 Restaurants
No restaurants are listed for this airport.
8J7 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.
FAA A/FD Pages
FAA A/FD Page

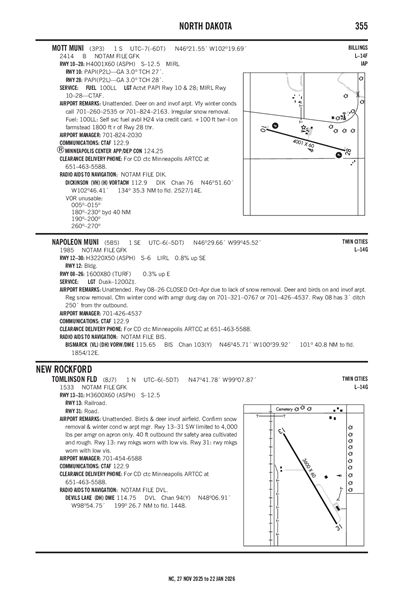

Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KDVL (27nm)
RAW
Reported
Fri, 4/19 12:34 PM CDT
Valid
Fri, 4/19 1:00 PM CDT - Sat, 4/20 1:00 PM CDT
VFR
1:00 PM CDT - 6:00 PM CDT
Light Snow
Broken 3,500'
Few 2,500'
Viz
6sm
Wind
320° 20kts
VFR
6:00 PM CDT - 8:00 PM CDT
Broken 3,500'
Viz
6sm
Wind
330° 24kts
MVFR
8:00 PM CDT - 5:00 AM CDT
Broken 2,700'
Viz
6sm
Wind
320° 16kts
VFR
5:00 AM CDT - 1:00 PM CDT
Few 25,000'
Viz
6sm
Wind
310° 11kts
KDVL 191734Z 1918/2018 32020KT P6SM -SN FEW025 BKN035
FM192300 33024KT P6SM BKN035
FM200100 32016KT P6SM BKN027
FM201000 31011KT P6SM FEW250
8J7
No NOTAM Available
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF NEW ROCKFORD
BOX 752
NEW ROCKFORD, ND 58356
Phone: 701-454-6588
Manager
TROY GEORGESON
16057 83RD ST NE
DRAYTON, ND 58225
Phone: 701-454-6588
FSS
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
NOTAM
GFK
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
Yes
Landing Fee
No
Parking
None
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
4
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 13/31
Dimensions
3600 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 13
Runway 31
True Heading
145°
325°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
POOR
POOR
Latitude
47° 42' 01"N
47° 41' 32"N
Longitude
99° 08' 08"W
99° 07' 38"W
Elevation
1,533'
1,526'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-2
CONFIRM SNOW REMOVAL & WINTER COND W ARPT MGR.
A110-3
40 FT OUTBOUND THR SAFETY AREA CULTIVATED AND ROUGH.
A110-4
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-5
BIRDS & DEER INVOF AIRFIELD.
TOMLINSON FLD (IATA: 8J7) is a public airport located in NEW ROCKFORD, ND.
