TERRY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

8U6
Local 8U6
TERRY
PublicPUB

1 miles SE of TERRY, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 46' 38"N 105° 18' 47"W
Elevation
2283' MSL
Pattern Alt
3283' MSL
Mag Variation
9°E
Declination
13°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
BILLINGS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
7/9/26-8/6/26
KGDV (30nm) VFR
6:56 PM MDT
Clear
10sm
93°F
53°F
29.98"Hg
040° 22kts
Gusts 25kts
AO2 PK WND 04028/0042 SLP125 T03390117 TSNO $
METAR KGDV 140056Z AUTO 04022G25KT 10SM CLR 34/12 A2998 RMK AO2 PK WND 04028/0042 SLP125 T03390117 TSNO $
+ Add Your Business

8U6 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT PAPI RWY 08 & 26; MIRL 08/26 - CTAF.

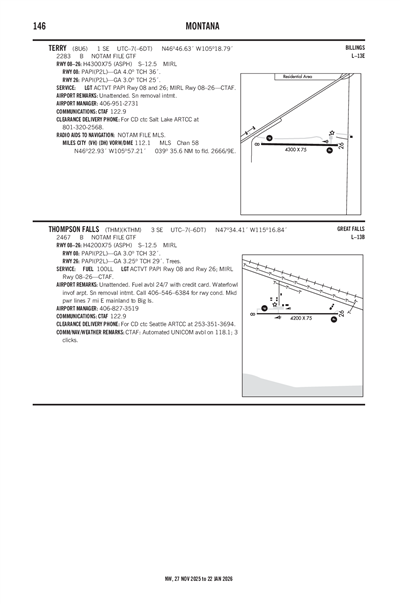

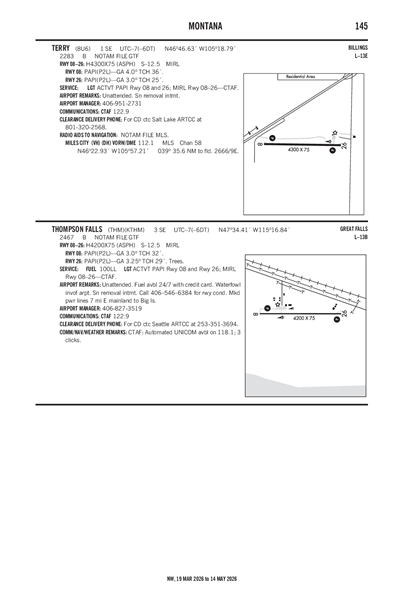

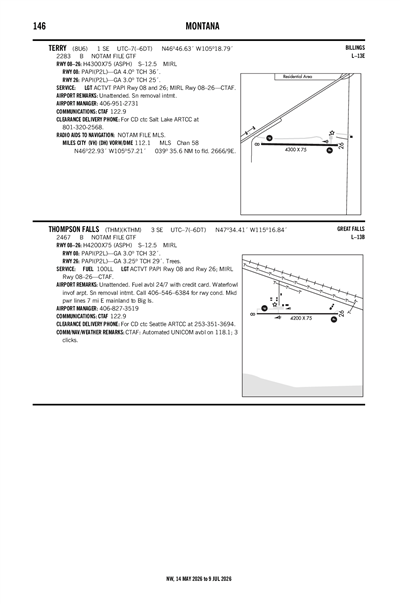

FAA A/FD Pages

Terminal Area Forecast

KGDV (30nm)
Mon, 7/13 5:21 PM MDT
Mon, 7/13 6:00 PM MDT - Tue, 7/14 6:00 PM MDT
VFR
6:00 PM MDT - 10:00 PM MDT
Few 19,000'
6sm
030° 18kts
Gusts 26kts
VFR
10:00 PM MDT - 4:00 AM MDT
Few 18,000'
6sm
040° 16kts
Gusts 24kts
VFR
4:00 AM MDT - 9:00 AM MDT
Few 18,000'
6sm
040° 12kts
VFR
9:00 AM MDT - 12:00 PM MDT
Sky Clear
6sm
060° 14kts
Gusts 22kts
VFR
12:00 PM MDT - 6:00 PM MDT
Sky Clear
6sm
070° 18kts
Gusts 26kts
TAF KGDV 132321Z 1400/1424 03018G26KT P6SM FEW190
   FM140400 04016G24KT P6SM FEW180
   FM141000 04012KT P6SM FEW180
   FM141500 06014G22KT P6SM SKC
   FM141800 07018G26KT P6SM SKC
8U6
No NOTAM Available
No
UNATNDD
CITY OF TERRY & PRAIRIE COUNTY
P O BOX 140
TERRY, MT 59349
Phone: 406-635-5575
DALE GALLAND
BOX 140
TERRY, MT 59349
Phone: 406-951-2731
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
ACTVT PAPI RWY 08 & 26; MIRL 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 08/26

4300 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 91°271°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 46° 46' 38"N 46° 46' 37"N
Longitude 105° 19' 18"W 105° 18' 16"W
Elevation 2,281' 2,283'
Threshold Crossing Height 36 ft. AGL 25 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2SN REMOVAL INTMT.
A110-3FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A52-08+35 FT PLINE 1075 FT FM THR ON CNTRLN EXTDD; 25:1 APCH RATIO. PLINE MARKED WITH GLOBES.
A81-APTACTVT PAPI RWY 08 & 26; MIRL 08/26 - CTAF.
E111EXISTED PRIOR TO 1959.
TERRY (IATA: 8U6) is a public airport located in TERRY, MT, US.
