94C
Local 94C
GILBERT FLD
PublicPUB

1 miles W of RIO, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 27' 06"N 89° 15' 18"W
Elevation
927' MSL
Pattern Alt
1927' MSL
Mag Variation
3°W
Declination
0°
Fuel
None Listed
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
4/16/26-5/14/26
KMSN (19nm) VFR
3:53 PM CDT
Scattered 25,000'
Scattered 3,400'
10sm
66°F
48°F
29.74"Hg
310° 7kts
Gusts 16kts
AO2 SLP069 T01890089 51005
METAR KMSN 242053Z 31007G16KT 270V350 10SM SCT034 SCT250 19/09 A2974 RMK AO2 SLP069 T01890089 51005
+ Add Your Business

94C FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

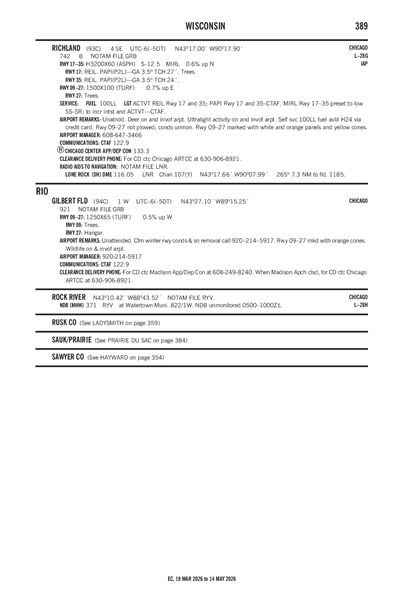

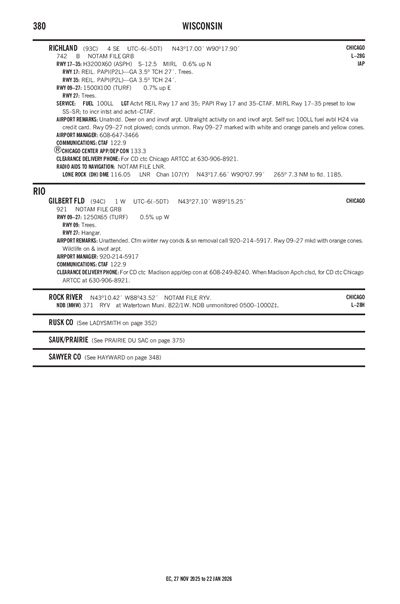

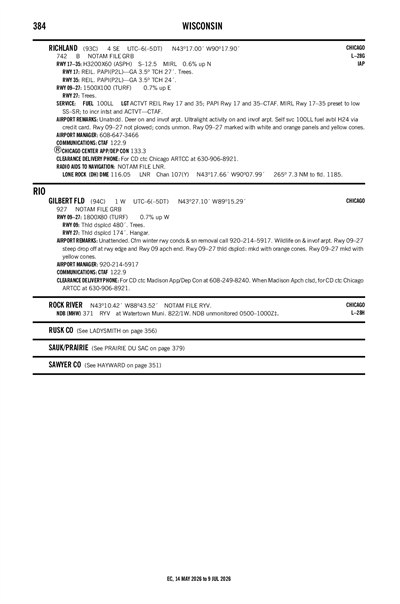

FAA A/FD Pages

Terminal Area Forecast

KMSN (19nm)
Fri, 4/24 3:57 PM CDT
Fri, 4/24 4:00 PM CDT - Sat, 4/25 1:00 PM CDT
VFR
4:00 PM CDT - 8:00 PM CDT
Scattered 4,500'
6sm
310° 10kts
VFR
8:00 PM CDT - 10:00 AM CDT
Sky Clear
6sm
VRB° 3kts
VFR
10:00 AM CDT - 1:00 PM CDT
Few 24,000'
6sm
050° 7kts
TAF KMSN 242057Z 2421/2518 31010KT P6SM SCT045
   FM250100 VRB03KT P6SM SKC
   FM251500 05007KT P6SM FEW240
94C
EffectiveExpiresCategoryNOTAM
Domestic
4/20/26
2336Z
6/4/26
2335Z
!GRB 04/478 94C OBST TOWER LGT (ASN 2017-AGL-347-OE) 433415N0890047W (12.6NM NE 94C) 1187FT (255FT AGL) U/S 2604202336-2606042335
4/10/26
0318Z
6/1/26
2359Z
!GRB 04/252 94C OBST TOWER LGT (ASR 1228530) 432240.10N0892637.80W (9.4NM WSW 94C) 1362.9FT (274.9FT AGL) U/S 2604100318-2606012359
4/1/26
1425Z
6/1/26
2359Z
!GRB 04/005 94C OBST TOWER LGT (ASR 1241496) 432126.70N0891420.50W (5.7NM S 94C) 1291.0FT (265.1FT AGL) U/S 2604011425-2606012359
3/15/26
1441Z
4/29/26
1441Z
!GRB 03/316 94C OBST TOWER LGT (ASN 2019-AGL-5583-OE) 433811N0891259W (11.3NM NE 94C) 1133FT (255FT AGL) U/S 2603151441-2604291441
3/10/26
1844Z
5/10/26
2359Z
!GRB 03/145 94C OBST TOWER LGT (ASR 1215932) 433325.20N0890100.40W (12.1NM ENE 94C) 1314.3FT (365.2FT AGL) U/S 2603101844-2605102359
No
UNATNDD
RIO AERO CLUB INC
5019 HWY 116
RIO, WI 53960
Phone: 920-214-5917
RIO CLUB CLUB INC
5019 HWY 116
RIO, WI 53960
Phone: 920-214-5917
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 09/27

1800 ft. x 80 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 27' 06"N 43° 27' 06"N
Longitude 89° 15' 30"W 89° 15' 05"W
Elevation 927' 915'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1CFM WINTER RWY CONDS & SN REMOVAL CALL 920-214-5917.
A110-2FOR CD CTC MADISON APP/DEP CON AT 608-249-8240. WHEN MADISON APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-3WILDLIFE ON & INVOF ARPT.
A110-4RWY 09/27 STEEP DROP OFF AT RWY EDGE AND RWY 09 APCH END.
A16ROATAVIATION@GMAIL.COM.
A42-09_MARKMKD WITH YELLOW CONES.
A42-27_MARKMKD WITH YELLOW CONES.
A51-09MKD WITH ORANGE CONES.
A51-27MKD WITH ORANGE CONES.
A57-09APCH RATIO 11:1 TO DTHR. 78 FT TREES 840 FT FM DTHR, 140 FT L.
A57-27APCH RATIO 14:1 TO DTHR. 20 FT HNGR 275 FT FM DTHR, 100 FT L.
E111ESTABLISHED PRIOR TO 1959.
GILBERT FLD (IATA: 94C) is a public airport located in RIO, WI, US.
