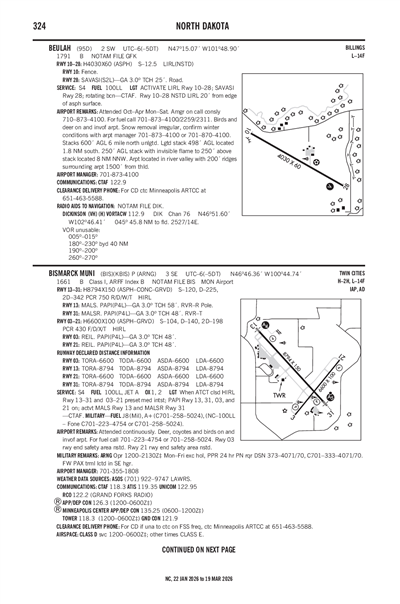

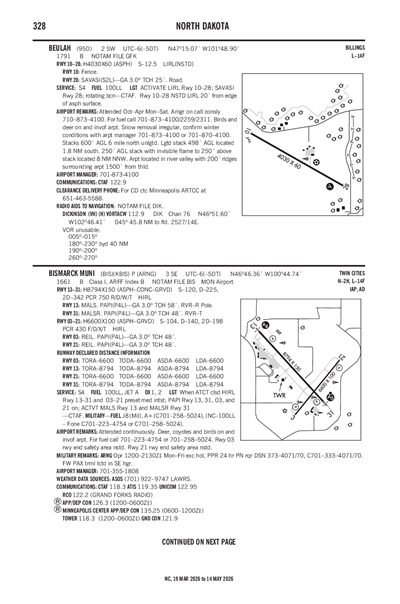

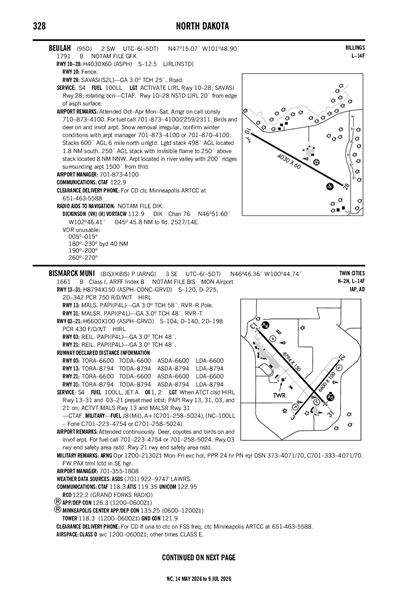

BEULAH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

95D
Local 95D
BEULAH
PublicPUB

2 miles SW of BEULAH, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 15' 04"N 101° 48' 54"W
Elevation
1791' MSL
Pattern Alt
2791' MSL
Mag Variation
6°E
Declination
11°E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/14/26-6/11/26
KHZE (10nm) VFR
8:35 AM CDT
Clear
10sm
61°F
50°F
29.94"Hg
250° 6kts
AO2
METAR KHZE 041335Z AUTO 25006KT 10SM CLR 16/10 A2994 RMK AO2
+ Add Your Business

95D FBOs

Promote Listing
Dakota Helicopters
Phone: (701) 873-4100
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.50
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT ROTG BCN - CTAF.; ACTVT LIRL RY 10/28 & SAVASI RY 28 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KDIK (48nm)
Thu, 6/4 5:34 AM MDT
Thu, 6/4 6:00 AM MDT - Fri, 6/5 6:00 AM MDT
VFR
6:00 AM MDT - 12:00 PM MDT
Scattered 20,000'
6sm
270° 6kts
VFR
12:00 PM MDT - 12:00 AM MDT
Broken 25,000'
Scattered 8,000'
6sm
330° 5kts
MVFR
6:00 PM MDT - 12:00 AM MDT
Thunderstorm and Rain and Mist
Overcast 8,000'
Broken 4,000'
4sm
Calm
VFR
12:00 AM MDT - 6:00 AM MDT
Broken 10,000'
6sm
250° 5kts
TAF KDIK 041134Z 0412/0512 27006KT P6SM SCT200
   FM041800 33005KT P6SM SCT080 BKN250
   PROB30 0500/0506 4SM TSRA BR BKN040 OVC080CB
   FM050600 25005KT P6SM BKN100
95D
EffectiveExpiresCategoryNOTAM
Domestic
5/22/26
1958Z
!GFK 05/160 95D OBST TOWER LGT (ASR 1256667) 472707.00N1015035.00W (12.1NM N 95D) 2280.8FT (356.0FT AGL) U/S 2605221958-2606211700EST
5/10/26
1802Z
6/24/26
1801Z
!GFK 05/073 95D OBST TOWER LGT (ASR 1037197) 471310.00N1020728.00W (12.8NM W 95D) 2570.9FT (278.9FT AGL) U/S 2605101802-2606241801
No
OCT-APR MON-SAT ON CALL
AMGR ON CALL CONSLY (710) 873-4100.
BEULAH MUNICIPAL AIRPORT AUTHORITY
6220 COUNTY 20
BEULAH, ND 58523
Phone: 701-873-4100
SHAWN MORTEN
6220 COUNTY 20
BEULAH, ND 58523
Phone: 701-873-4100
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT LIRL RY 10/28 & SAVASI RY 28 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Sales
Annual Surveying

Runway 10/28

4030 ft. x 60 ft.
ASPH
Good
NONE
NSTD

12,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 115°295°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 15' 13"N 47° 14' 56"N
Longitude 101° 49' 21"W 101° 48' 28"W
Elevation 1,791' 1,784'
Threshold Crossing Height -- 25 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- S2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1LIGHTED STACK 498' AGL LCTD 1.8 NM S.
A110-2ARPT LCTD IN RIVER VALLEY WITH +200' RDGS SRNDG APRX 1500' FM THR.
A110-3250 FT AGL STACK WITH INVISIBLE FLAME TO 250 FT ABV STACK LCTD 8 NM NNW.
A110-4SNOW REMOVAL IREG; CONFIRM WINTER CONDITIONS WITH AMGR (701) 873-4100 OR (701) 870-4100.
A110-7STACKS 600 FT AGL 6 MI N UNLGTD.
A110-8BIRDS & DEER ON & INVOF ARPT.
A110-9FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A12CHAIR OF APT AUTH - BO KLINDWORTH
A14OR CTC KEVIN LEE, ARPT AUTH (701) 873-2259 OR (701) 873-2311.
A17-H2AMGR ON CALL CONSLY (710) 873-4100.
A40-10/28NSTD LIRL 20 FT FROM EDGE OF ASPH SFC.
A52-10ROAD 10 FT ABV RWY HGT PENETRATES APCH.
A57-10CLTG OBSTN EXCEEDS A 45 DEG SLP.
A58-10+4 FT FENCE 115 FT FM THLD 60 FT L OF CNTRLN. +15 FT TREE 115 FT FM THLD 60 FT L OF CNTRLN.
A58-28+4 FT FENCE 100 FT FM THLD 50 FT LEFT OF CNTRLN.
A70-100LLFOR FUEL CALL 701-873-4100/2259/2311.
A81-APTACTVT LIRL RY 10/28 & SAVASI RY 28 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
E111PRVDD RWY 10 THR IS DSPLCD TO PRVD A MIN 20:1 OBSTN FREE CLNC OVER A 15' VEHICLE ON COUNTY ROAD.
BEULAH (IATA: 95D) is a public airport located in BEULAH, ND, US.
