EDWARDS AF AUX NORTH BASE - Airport Diagram

9L2

EDWARDS AF AUX NORTH BASE

PrivatePVT

3 miles N of EDWARDS, CA

View on Map

Status

Operational

Coordinates

34° 59' 27"N 117° 51' 47"W

Elevation

2299' MSL

Pattern Alt

3299' MSL

Mag Variation

14E

Fuel

None Listed

FSS

RIVERSIDE (RAL)

Sectional

LOS ANGELES

ARTCC

LOS ANGELES (ZLA)

Data Effective

4/18/24-5/16/24

K9L2 VFR

5:55 PM PDT RAW

Clear

Viz

9sm

Temp

63°F

Dew

32°F

Pres

29.78"Hg

Wind

280° 26kts

Gusts 33kts

RMK

AO2 PK WND 29048/2356 LTG DSNT E PRESRR SLP074 T01740001 $

K9L2 270055Z AUTO 28026G33KT 9SM CLR 17/00 A2978 RMK AO2 PK WND 29048/2356 LTG DSNT E PRESRR SLP074 T01740001 $

List Your Business

9L2 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

9L2 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

9L2 Hotels

No hotels are listed for this airport.

9L2 Restaurants

No restaurants are listed for this airport.

9L2 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM -- CTAF --

No communication frequencies available for this airport.

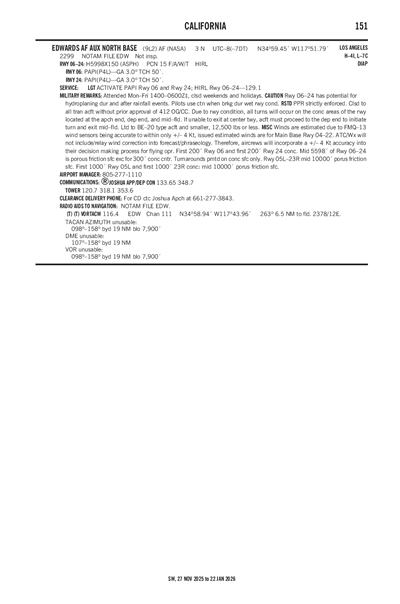

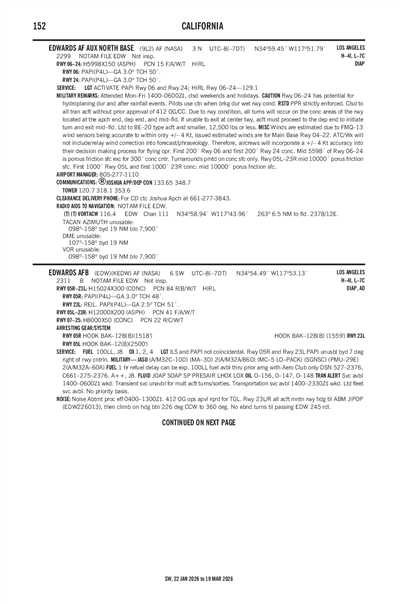

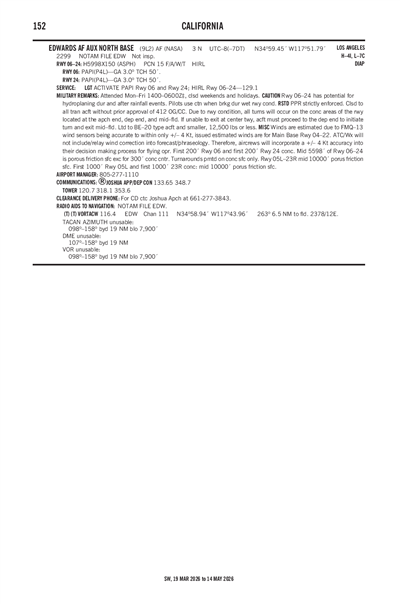

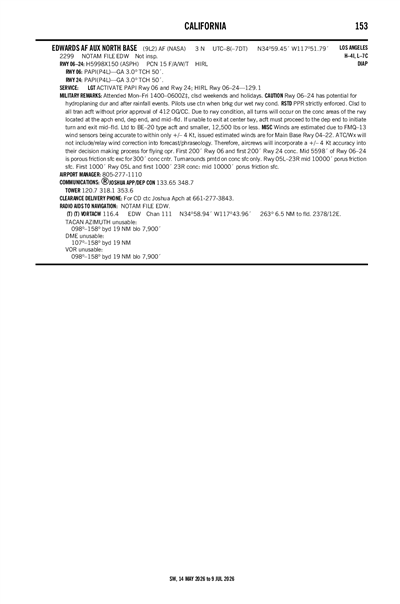

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KEDW (5nm)

RAW

Reported

Fri, 4/26 5:16 PM PDT

Valid

Fri, 4/26 5:00 PM PDT - Sat, 4/27 8:00 PM PDT

MVFR

5:00 PM PDT - 7:00 PM PDT

Blowing Dust

Scattered 25,000'
Scattered 5,000'

Viz

4.97sm

Pres

29.76"Hg

Wind

280° 35kts

Gusts 45kts

Turbulence

Moderate, Clear Air, Frequent: up to 9,000'

VFR

Temporary 5:00 PM PDT - 7:00 PM PDT

No Clouds

Viz

N/A

Wind

290° 40kts

Gusts 50kts

Turbulence

Severe, Clear Air, Occasional: up to 9,000'

VFR

Becoming 7:00 PM PDT - 1:00 AM PDT

Scattered 25,000'

Viz

6sm

Pres

29.79"Hg

Wind

290° 20kts

Gusts 30kts

Turbulence

Moderate, Clear Air, Occasional: up to 9,000'

VFR

Temporary 8:00 PM PDT - 10:00 PM PDT

No Clouds

Viz

N/A

Wind

290° 35kts

Gusts 45kts

Turbulence

Moderate, In Cloud, Frequent: up to 9,000'

VFR

Becoming 1:00 AM PDT - 8:00 AM PDT

Scattered 25,000'

Viz

6sm

Pres

29.82"Hg

Wind

240° 15kts

Gusts 25kts

Turbulence

Moderate, Clear Air, Occasional: up to 4,000'

VFR

Becoming 8:00 AM PDT - 8:00 PM PDT

Scattered 25,000'

Viz

6sm

Pres

29.82"Hg

Wind

300° 15kts

Gusts 25kts

Turbulence

Moderate, Clear Air, Occasional: up to 6,000'

TAF AMD KEDW 270016Z 2700/2803 28035G45KT 8000 BLDU SCT050 SCT250 530009 QNH2976INS
   TEMPO 2700/2702 29040G50KT 560009
   BECMG 2702/2703 29020G30KT 9999 NSW SCT250 520009 QNH2979INS
   TEMPO 2703/2705 29035G45KT 550009
   BECMG 2708/2709 24015G25KT 9999 SCT250 520004 QNH2982INS
   BECMG 2715/2716 30015G25KT 9999 SCT250 520006 QNH2983INS TX21/2721Z TN08/2713Z

9L2

No NOTAM Available

ATC Tower

Attendance

MON-FRI 1400-0600Z++
CLSD WKEND AND HOL.

Owner

USAF
EDWARDS AFB
EDWARDS, CA 93523

Manager

BASE OPERATIONS
EDWARDS AFB
EDWARDS, CA 93523
Phone: 805-277-1110

FSS

RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF

NOTAM

EDW

Light Schedule

Lights

ACTVT PAPI RWY 6 AND 24; HIRL RWY 6/24 - 129.1

Beacon

N/A

Wind Indicator

Segmented Cir.

Landing Fee

Parking

None

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 06/24

Dimensions

5998 ft. x 150 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

15 /F/A/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 06	Runway 24
True Heading	74°	254°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	34° 59' 19"N	34° 59' 35"N
Longitude	117° 52' 22"W	117° 51' 13"W
Elevation	2,299'	2,276'
Threshold Crossing Height	50 ft. AGL	50 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-4	PPR STRICTLY ENFORCED. CLSD TO ALL TRAN ACFT WO PRIOR APPROVAL OF 412 OG/CC. ALL TURNS WILL BE MADE ON CONC AREAS OF RWY LCTD AT THE APCH END, DEPT END AND MID-FLD. IF UNABLE TO EXIT A CNTR TAXIWAY, ACFT MUST PROCEED TO DEP END TO INITIATE TURN AND EXIT MID-FLD.
A110-6	FOR CD CTC JOSHUA APCH AT 661-277-3843.
A110-7	CAUTION: RWY 06/24 HAS POTENTIAL FOR HYDROPLANING DUR AND AFTER RAINFALL EVENTS. PILOTS USE CTN WHEN BRKG DUR WET RWY COND.
A110-8	FIRST 200 FT RWY 06 AND FIRST 200 FT RWY 24 CONC. MID 5598 FT OF RWY 06/24 IS POROUS FRICTION SFC EXC FOR 300 FT CONC CNTR. TURNAROUNDS PMTD ON CONC SFCS ONLY.

EDWARDS AF AUX NORTH BASE (IATA: 9L2) is a private airport located in EDWARDS, CA.
