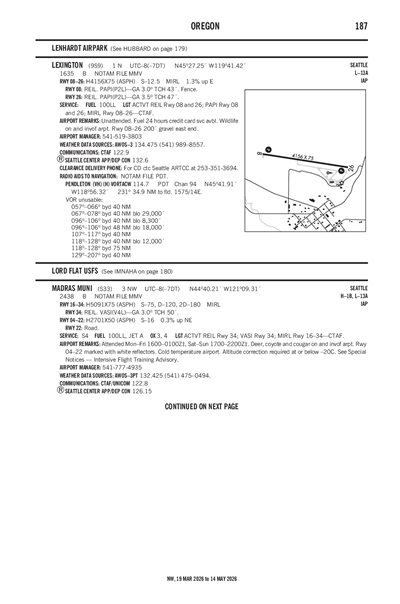

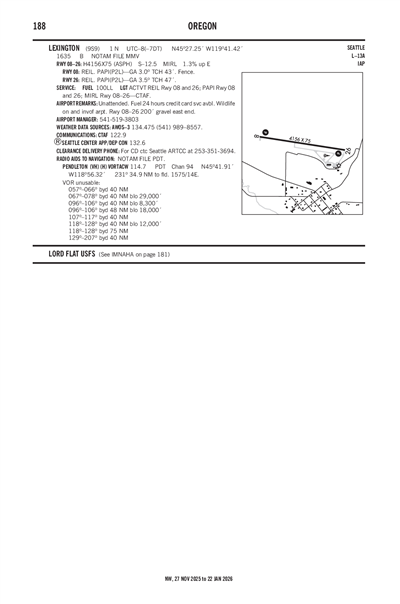

LEXINGTON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

9S9
LEXINGTON
PublicPUB

1 miles N of LEXINGTON, OR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 27' 15"N 119° 41' 25"W
1634' MSL
2634' MSL
17E
100LL
MC MINNVILLE (MMV)
SEATTLE
SEATTLE (ZSE)
4/18/24-5/16/24
K9S9 VFR
4:50 PM PDT
Light Rain
Few 6,500'
Few 3,800'
10sm
54°F
52°F
29.84"Hg
200° 8kts
AO2
K9S9 252350Z AUTO 20008KT 10SM -RA FEW038 FEW065 12/11 A2984 RMK AO2
List Your Business

9S9 FBOs, Flight Schools and Ground Support

Promote Listing
Lexington Airport
Phone: (541) 989-9500
Other: (541) 989-8166
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/9
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.25
Full Serve

9S9 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

9S9 Hotels

No hotels are listed for this airport.

9S9 Restaurants

No restaurants are listed for this airport.

9S9 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
541-989-8557
 134.475

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPDT (39nm)
Thu, 4/25 4:37 PM PDT
Thu, 4/25 5:00 PM PDT - Fri, 4/26 5:00 PM PDT
MVFR
5:00 PM PDT - 9:00 PM PDT
Light Rain
Overcast 4,000'
Broken 1,500'
6sm
270° 9kts
VFR
9:00 PM PDT - 11:00 AM PDT
Broken 6,000'
6sm
200° 5kts
VFR
11:00 AM PDT - 5:00 PM PDT
Broken 5,000'
6sm
280° 9kts
KPDT 252337Z 2600/2624 27009KT P6SM -RA BKN015 OVC040
   FM260400 20005KT P6SM BKN060
   FM261800 28009KT P6SM BKN050
9S9
Domestic
4/18/241429Z !MMV 04/144 9S9 AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF 9S9 SFC-5000FT AGL 2404181429-2405181430
4/15/241506Z !MMV 04/101 9S9 RWY 26 PAPI UNUSABLE 2404151506-2410152111EST
FDC
8/17/231846Z !FDC 3/7060 9S9 IAP LEXINGTON, LEXINGTON, OR.
RNAV (GPS) RWY 8, ORIG-B...
RNAV (GPS)-A, ORIG-B...
CIRCLING CAT D NA WHEN USING THE HERMISTON ALTIMETER SETTING.
2308171846-2508171846EST
No
UNATNDD
MORROW COUNTY
COUNTY COURTHOUSE
HEPPNER, OR 97836
Phone: 541-989-9500
MATT SCRIVNER
BOX 428
LEXINGTON, OR 97839
Phone: 541-989-9500
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
--
ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
9
1
0
0
0
0
None
None
None
None
Crop Dusting

Runway 08/26

4156 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 99°279°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 45° 27' 18"N 45° 27' 12"N
Longitude 119° 41' 54"W 119° 40' 56"W
Elevation 1,582' 1,634'
Threshold Crossing Height 43 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2SEASONAL HVY AG OPNS.
A110-3WILDLIFE ON AND INVOF ARPT.
A110-4FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
LEXINGTON (IATA: 9S9) is a public airport located in LEXINGTON, OR.
