WILSALL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

9U1
Local 9U1
WILSALL
PublicPUB

4 miles NW of WILSALL, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 02' 58"N 110° 41' 06"W
Elevation
5140' MSL
Pattern Alt
6140' MSL
Mag Variation
11°E
Declination
16°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
6/11/26-7/9/26
KLVM (23nm) VFR
12:53 AM MDT
Light Rain
Overcast 3,400'
Few 2,400'
8sm
47°F
43°F
30.21"Hg
120° 7kts
AO2 SLP206 P0003 T00830061 402390033
METAR KLVM 130653Z AUTO 12007KT 8SM -RA FEW024 OVC034 08/06 A3021 RMK AO2 SLP206 P0003 T00830061 402390033
+ Add Your Business

9U1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

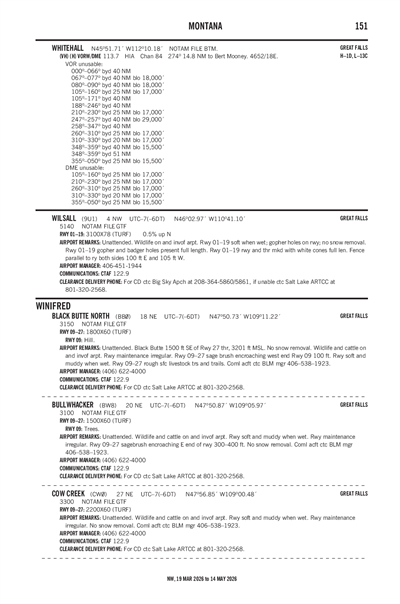

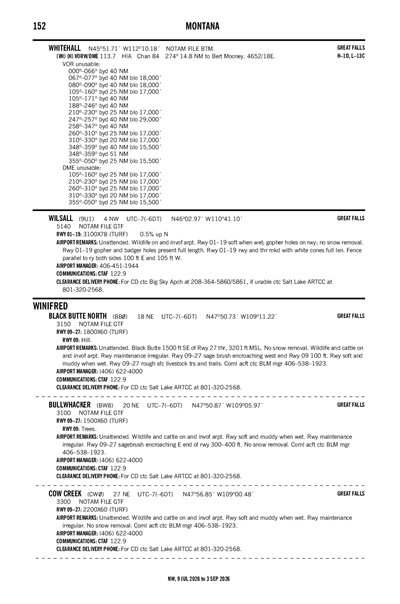

FAA A/FD Pages

Terminal Area Forecast

KLVM (23nm)
Fri, 6/12 11:20 PM MDT
Sat, 6/13 12:00 AM MDT - Sun, 6/14 12:00 AM MDT
VFR
12:00 AM MDT - 6:00 AM MDT
Light Rain
Overcast 5,000'
Broken 3,500'
6sm
100° 12kts
MVFR
Temporary 2:00 AM MDT - 6:00 AM MDT
Light Rain and Mist
Overcast 3,000'
Broken 1,500'
3sm
Calm
MVFR
6:00 AM MDT - 11:00 AM MDT
Light Rain and Mist
Overcast 3,000'
Broken 1,500'
4sm
090° 8kts
MVFR
11:00 AM MDT - 1:00 PM MDT
Light Showers and Rain
Overcast 5,000'
Broken 3,000'
Few 1,500'
6sm
080° 7kts
VFR
1:00 PM MDT - 12:00 AM MDT
Showers in vicinity
Broken 6,000'
Scattered 3,000'
6sm
VRB° 6kts
TAF KLVM 130520Z 1306/1406 10012KT P6SM -RA BKN035 OVC050
   TEMPO 1308/1312 3SM -RA BR BKN015 OVC030
   FM131200 09008KT 4SM -RA BR BKN015 OVC030
   FM131700 08007KT P6SM -SHRA FEW015 BKN030 OVC050
   FM131900 VRB06KT P6SM VCSH SCT030 BKN060
9U1
EffectiveExpiresCategoryNOTAM
Domestic
6/7/26
1814Z
7/22/26
1813Z
!GTF 06/053 9U1 OBST TOWER LGT (ASN 2018-ANM-3669-OE) 455510N1105151W (10.8NM SW 9U1) 6222FT (349FT AGL) U/S 2606071814-2607221813
No
UNATNDD
CITY OF WILSALL & PARK COUNTY
COUNTY BLDG
LIVINGSTON, MT 59047
Phone: 406-222-6120
PAUL LYMAN
COUNTY BLDG, 414 E CALLENDER
LIVINGSTON, MT 59047
Phone: 406-451-1944
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

3100 ft. x 78 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 5°185°
Traffic Pattern Left Left
Markings
Markings Condition FAIR FAIR
Latitude 46° 02' 43"N 46° 03' 14"N
Longitude 110° 41' 08"W 110° 41' 04"W
Elevation 5,125' 5,140'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FENCE PARALLEL TO RY BOTH SIDES 100 FT E & 105 FT W.
A110-2WILDLIFE ON & INVOF ARPT.
A110-4FOR CD CTC BIG SKY APCH AT 208-364-5860/5861, IF UNABLE CTC SALT LAKE ARTCC AT 801-320-2568.
A33-01/19_CONDGOPHER & BADGER HOLES PRESENT FULL LENGTH.
A33-01/19_SURFSOFT WHEN WET; GOPHER HOLES ON RWY; NO SNOW REMOVAL
A42-01_MARK01/19 RWY AND THR MKD WITH W CONES FULL LEN.
WILSALL (IATA: 9U1) is a public airport located in WILSALL, MT, US.
