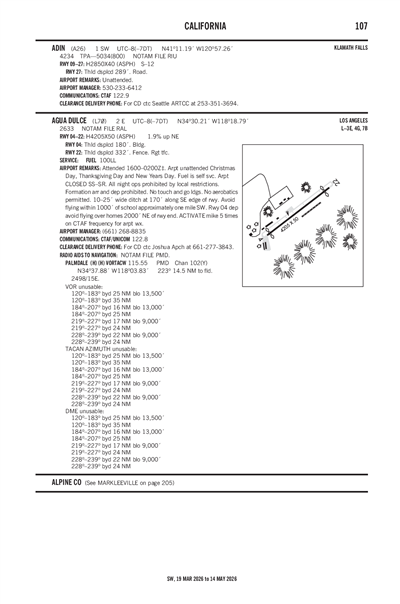

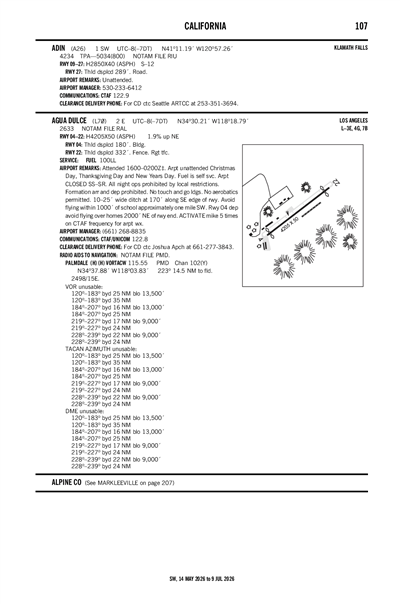

ADIN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

A26
Local A26
ADIN
PublicPUB

1 miles SW of ADIN, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 11' 11"N 120° 57' 16"W
Elevation
4234' MSL
Pattern Alt
5034' MSL
Mag Variation
14°E
Declination
17°E
Fuel
None Listed
FSS
RANCHO MURIETA (RIU)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
5/14/26-6/11/26
KAAT (25nm) VFR
7:55 PM PDT
Clear
10sm
64°F
24°F
30.06"Hg
320° 14kts
Gusts 21kts
AO2 PK WND 32027/0228 SLP158 T01781044 53010 $
METAR KAAT 150255Z AUTO 32014G21KT 10SM CLR 18/M04 A3006 RMK AO2 PK WND 32027/0228 SLP158 T01781044 53010 $
+ Add Your Business

A26 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KLMT (67nm)
Thu, 5/14 4:38 PM PDT
Thu, 5/14 5:00 PM PDT - Fri, 5/15 5:00 PM PDT
VFR
5:00 PM PDT - 8:00 PM PDT
Sky Clear
6sm
280° 18kts
Gusts 28kts
VFR
8:00 PM PDT - 12:00 AM PDT
Sky Clear
6sm
320° 15kts
VFR
12:00 AM PDT - 2:00 PM PDT
Sky Clear
6sm
VRB° 3kts
VFR
2:00 PM PDT - 5:00 PM PDT
Sky Clear
6sm
280° 14kts
Gusts 24kts
TAF KLMT 142338Z 1500/1524 28018G28KT P6SM SKC
   FM150300 32015KT P6SM SKC
   FM150700 VRB03KT P6SM SKC
   FM152100 28014G24KT P6SM SKC
A26
EffectiveExpiresCategoryNOTAM
Domestic
4/4/26
1737Z
6/4/26
2359Z
!RIU 04/033 A26 OBST TOWER LGT (ASR 1012944) 411149.60N1205605.90W (1.1NM NE A26) 4759.2FT (214.9FT AGL) U/S 2604041737-2606042359
No
UNATNDD
COUNTY OF MODOC
202 W 4TH STREET
ALTURAS, CA 96101
Phone: (530) 233-6412
MITCH CROSBY
202 W 4TH STREET
ALTURAS, CA 96101
Phone: 530-233-6412
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 09/27

2850 ft. x 40 ft.
ASPH
Fair
NONE


12,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 111°291°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 41° 11' 16"N 41° 11' 06"N
Longitude 120° 57' 33"W 120° 56' 58"W
Elevation 4,218' 4,223'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A16ROADS DEPARTMENT.
A57-27+10' ROAD OBSTN 306', 125'L, 30:1 BASED ON DISPLCD THR.
A58-27+5' FNC & +10' ROAD OBSTN, 20' FROM RY END, 125'L.
E111PREDATES TO 1958 FAA ACT.
ADIN (IATA: A26) is a public airport located in ADIN, CA, US.
