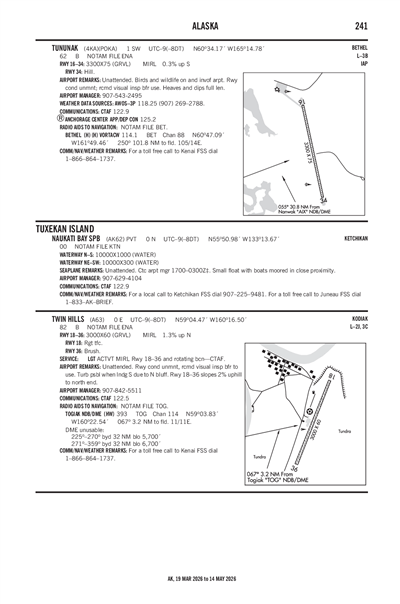

TWIN HILLS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

A63
Local A63
TWIN HILLS
PublicPUB

0 miles E of TWIN HILLS, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
59° 04' 28"N 160° 16' 30"W
Elevation
82' MSL
Pattern Alt
1082' MSL
Mag Variation
11°E
Declination
19°E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
6/11/26-7/9/26
PATG (4nm) VFR
12:56 PM AKDT
Overcast 4,900'
Few 3,600'
10sm
55°F
50°F
30.05"Hg
180° 3kts
AO2 PRESRR SLP176 T01280100 53047
METAR PATG 252056Z AUTO 18003KT 10SM FEW036 OVC049 13/10 A3005 RMK AO2 PRESRR SLP176 T01280100 53047
+ Add Your Business

A63 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.5
ACTVT ROTG BCN - CTAF.; ACTVT MIRL RWY 18/36 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

PADL (55nm)
Thu, 6/25 9:20 AM AKDT
Thu, 6/25 10:00 AM AKDT - Fri, 6/26 10:00 AM AKDT
VFR
10:00 AM AKDT - 1:00 PM AKDT
Overcast 6,000'
Scattered 3,000'
6sm
260° 4kts
VFR
1:00 PM AKDT - 7:00 AM AKDT
Broken 4,500'
6sm
190° 7kts
IFR
7:00 AM AKDT - 10:00 AM AKDT
Mist
Few 25,000'
1.5sm
240° 2kts
TAF PADL 251720Z 2518/2618 26004KT P6SM SCT030 OVC060
   FM252100 19007KT P6SM BKN045
   FM261500 24002KT 1 1/2SM BR FEW250
A63
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0749
KEVIN HARDIN
BOX 250
DILLINGHAM, AK 99576
Phone: 907-842-5511
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ENA
--
ACTVT MIRL RWY 18/36 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 18/36

3000 ft. x 60 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 196°16°
Traffic Pattern Right Left
Markings
Markings Condition
Latitude 59° 04' 43"N 59° 04' 14"N
Longitude 160° 16' 22"W 160° 16' 38"W
Elevation 82' 44'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1CTN: TURB PSBL WHEN LNDG S DUE TO N BLUFF.
A110-2RWY COND UNMNT; RCMD VISUAL INSP BFR TO USE.
A30-18/362 PCT UPHILL SLOPE TO N.
A81-APTACTVT MIRL RWY 18/36 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
TWIN HILLS (IATA: A63) is a public airport located in TWIN HILLS, AK, US.
