iFlightPlanner



...

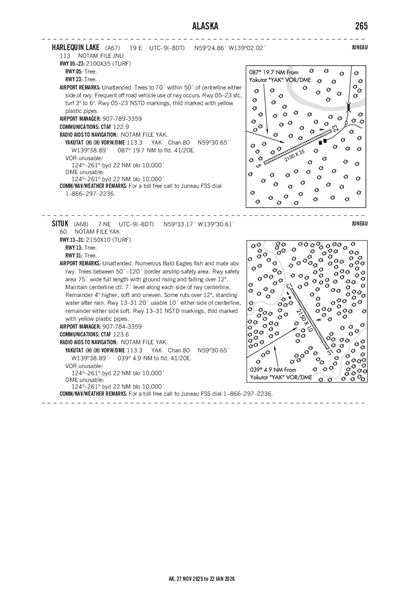

HARLEQUIN LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

A67
Local A67
HARLEQUIN LAKE
PublicPUB

19 miles E of YAKUTAT, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
59° 24' 52"N 139° 02' 01"W
Elevation
113' MSL
Pattern Alt
1113' MSL
Mag Variation
18°E
Declination
28°E
Fuel
None Listed
FSS
JUNEAU (JNU)
Sectional
JUNEAU
ARTCC
ANCHORAGE (ZAN)
Data Effective
3/19/26-4/16/26
PAYA (20nm) MVFR
4:05 PM AKDT
Light Rain
Overcast 1,100'
8sm
38°F
36°F
30.24"Hg
100° 7kts
AO2 CIG 008V014 P0000 T00330022 TSNO $
SPECI PAYA 050005Z AUTO 10007KT 8SM -RA OVC011 03/02 A3024 RMK AO2 CIG 008V014 P0000 T00330022 TSNO $
+ Add Your Business

A67 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAYA (20nm)
Sat, 4/4 3:39 PM AKDT
Sat, 4/4 4:00 PM AKDT - Sun, 4/5 4:00 PM AKDT
VFR
4:00 PM AKDT - 7:00 PM AKDT
Light Showers and Rain
Overcast 3,500'
Scattered 1,500'
6sm
Calm
MVFR
4:00 PM AKDT - 7:00 PM AKDT
Light Showers and Rain and Mist
Overcast 2,000'
Broken 1,000'
Scattered 600'
5sm
090° 10kts
MVFR
7:00 PM AKDT - 12:00 AM AKDT
Light Showers and Rain
Overcast 2,500'
Broken 1,500'
5sm
080° 6kts
VFR
8:00 PM AKDT - 12:00 AM AKDT
Light Showers and Rain
Overcast 4,000'
Scattered 1,500'
6sm
Calm
MVFR
12:00 AM AKDT - 6:00 AM AKDT
Light Showers and Rain and Showers and Snow
Overcast 4,000'
Broken 2,000'
Scattered 800'
5sm
080° 7kts
VFR
6:00 AM AKDT - 12:00 PM AKDT
Overcast 6,000'
Broken 4,000'
6sm
VRB° 3kts
VFR
12:00 PM AKDT - 4:00 PM AKDT
Broken 10,000'
6sm
330° 5kts
TAF PAYA 042339Z 0500/0524 09010KT 5SM -SHRA BR SCT006 BKN010 OVC020
   PROB30 0500/0503 P6SM -SHRA SCT015 OVC035
   FM050300 08006KT 5SM -SHRA BKN015 OVC025
   PROB30 0504/0508 P6SM -SHRA SCT015 OVC040
   FM050800 08007KT 5SM -SHRASN SCT008 BKN020 OVC040
   FM051400 VRB03KT P6SM BKN040 OVC060
   FM052000 33005KT P6SM BKN100 AMD LTD TO CLD VIS AND WIND
A67
No NOTAM Available
No
UNATNDD
USFS TONGASS NATIONAL FOREST
USFS YAKUTAT RANGER DISTRICT PO BOX 327
YAKUTAT, AK 99689
Phone: 907-784-3359
LEE BENSON
USFS YAKUTAT RANGER DISTRICT PO BOX 327
YAKUTAT, AK 99689
Phone: 907-789-3359
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
JNU
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

2100 ft. x 35 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 71°251°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition
Latitude 59° 24' 48"N 59° 24' 55"N
Longitude 139° 02' 21"W 139° 01' 42"W
Elevation 113' 113'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-170 FT TREES WI 50 FT OF CNTRLN BOTH SIDES.
A110-3OFF ROAD VEHICLES ON & INVOF OF RWY.
A33-05/23_SURF3 - 6 IN.
A42-05_MARKYELLOW PIPES.
A42-23_MARKYELLOW PIPES.
E111ESTABD PRIOR TO 1959.
HARLEQUIN LAKE (IATA: A67) is a public airport located in YAKUTAT, AK, US.
