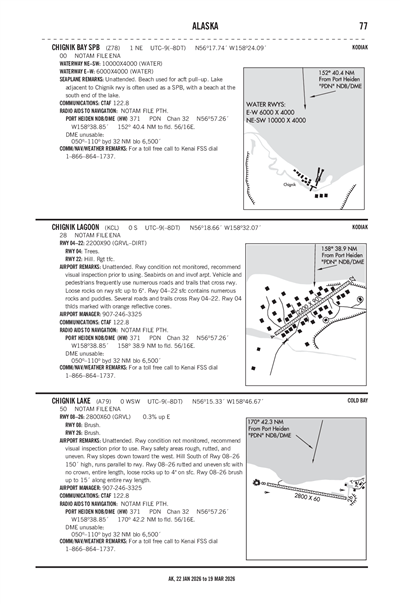

CHIGNIK LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

A79
Local A79
CHIGNIK LAKE
PublicPUB

0 miles WSW of CHIGNIK LAKE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
56° 15' 20"N 158° 46' 40"W
Elevation
50' MSL
Pattern Alt
1050' MSL
Mag Variation
11°E
Declination
19°E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
COLD BAY
ARTCC
ANCHORAGE (ZAN)
Data Effective
6/11/26-7/9/26
PAJC (14nm) MVFR
12:56 PM AKDT
Overcast 2,500'
10sm
53°F
42°F
29.92"Hg
Calm
AO2 SLP134 T01170056 58005
METAR PAJC 252056Z AUTO 00000KT 10SM OVC025 12/06 A2992 RMK AO2 SLP134 T01170056 58005
+ Add Your Business

A79 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8

FAA A/FD Pages

Terminal Area Forecast

PASD (81nm)
Thu, 6/25 12:15 PM AKDT
Thu, 6/25 12:00 PM AKDT - Fri, 6/26 10:00 AM AKDT
MVFR
12:00 PM AKDT - 4:00 PM AKDT
Light Rain
Broken 1,200'
Scattered 700'
6sm
VRB° 4kts
IFR
Temporary 12:00 PM AKDT - 4:00 PM AKDT
Light Drizzle and Mist
Broken 700'
4sm
Calm
IFR
4:00 PM AKDT - 10:00 PM AKDT
Light Rain and Mist
Overcast 800'
Scattered 500'
5sm
VRB° 6kts
IFR
10:00 PM AKDT - 2:00 AM AKDT
Mist
Broken 500'
2sm
340° 4kts
MVFR
2:00 AM AKDT - 7:00 AM AKDT
Mist
Broken 1,500'
Scattered 600'
6sm
300° 4kts
MVFR
7:00 AM AKDT - 10:00 AM AKDT
Broken 3,000'
Scattered 1,500'
6sm
290° 4kts
TAF PASD 252015Z 2520/2618 VRB04KT P6SM -RA SCT007 BKN012
   TEMPO 2520/2524 4SM -DZ BR BKN007
   FM260000 VRB06KT 5SM -RA BR SCT005 OVC008
   FM260600 34004KT 2SM BR BKN005
   FM261000 30004KT 6SM BR SCT006 BKN015
   FM261500 29004KT P6SM SCT015 BKN030
A79
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF SOUTHCOAST REGION
P.O. BOX 112500
JUNEAU, AK 99811
Phone: 907-465-4512
FLOYD WILSON
PO BOX 65
KING SALMON, AK 99613
Phone: 907-246-3325
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ENA
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 08/26

2800 ft. x 60 ft.
GRAVEL
Poor
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 101°281°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 56° 15' 22"N 56° 15' 17"N
Longitude 158° 47' 05"W 158° 46' 16"W
Elevation 36' 44'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY SAFETY AREAS ROUGH, RUTTED, AND UNEVEN.
A110-3RY COND NOT MONITORED - RCMD VISUAL INSPN PRIOR TO USE.
A110-4HILL S OF RY 08/26 150 FT HIGH; RUNS PARALLEL TO RY.
A110-6WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-8RY SLOPES DOWN TOWARD THE WEST.
A30-08/26BRUSH UP TO 15 FT ALONG ENTIRE RY LENGTH.
A33-08/26_SURFRUTTED AND UNEVEN SURFACE WITH NO CROWN ENTIRE LENGTH. LOOSE ROCKS UP TO 4" ON SURFACE.
CHIGNIK LAKE (IATA: A79) is a public airport located in CHIGNIK LAKE, AK, US.
