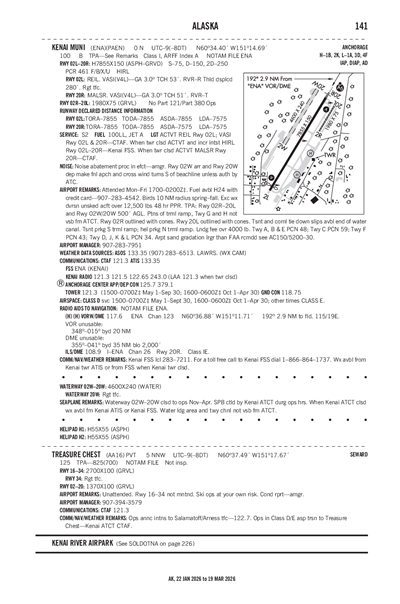

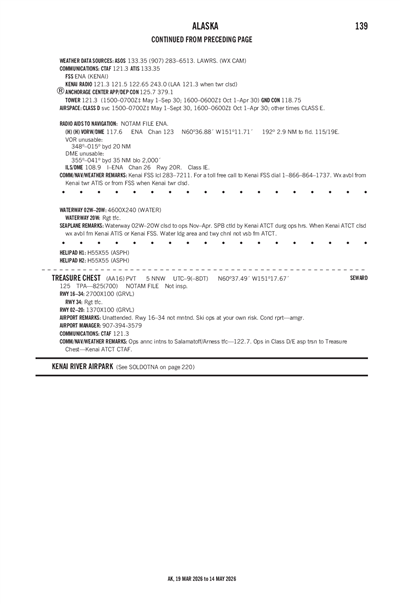

TREASURE CHEST - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

AA16
Local AA16
TREASURE CHEST
PrivatePVT

5 miles NNW of KENAI, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
60° 37' 29"N 151° 17' 40"W
Elevation
125' MSL
Pattern Alt
825' MSL
Mag Variation
15°E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
SEWARD
ARTCC
ANCHORAGE (ZAN)
Data Effective
4/16/26-5/14/26
PAEN (3nm) VFR
8:53 PM AKDT
Overcast 6,000'
10sm
41°F
38°F
30.05"Hg
050° 6kts
AO2 SLP179 T00500033
METAR PAEN 250453Z AUTO 05006KT 10SM OVC060 05/03 A3005 RMK AO2 SLP179 T00500033
+ Add Your Business

AA16 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 121.3
OPS IN CLASS D/E ASP TRSN TO TREASURE CHEST - KENAI ATCT CTAF.

FAA A/FD Pages

Terminal Area Forecast

PAEN (3nm)
Fri, 4/24 9:20 PM AKDT
Fri, 4/24 10:00 PM AKDT - Sat, 4/25 10:00 PM AKDT
VFR
10:00 PM AKDT - 4:00 AM AKDT
Overcast 6,000'
6sm
040° 7kts
MVFR
4:00 AM AKDT - 11:00 AM AKDT
Overcast 3,000'
6sm
VRB° 3kts
VFR
11:00 AM AKDT - 10:00 PM AKDT
Overcast 5,000'
6sm
020° 7kts
TAF PAEN 250520Z 2506/2606 04007KT P6SM OVC060
   FM251200 VRB03KT P6SM OVC030
   FM251900 02007KT P6SM OVC050
AA16
No NOTAM Available
No
Unknown
TREASURE CHEST AIRPARK HOA
PO BOX 1597
KENAI, AK 99611
Phone: 907-394-3579
JOHN PERRY
PO BOX 1597
KENAI, AK 99611
Phone: 907-394-3579
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
N/A
--
--
N/A
Yes
N/A
No
None
No
None
None
None
None
None

Runway 02/20

1370 ft. x 100 ft.
GRVL
Fair
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

2700 ft. x 100 ft.
GRVL
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading Not ListedNot Listed
Traffic Pattern Right
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2OPS ANNC INTNS SALAMATOFF/ARNESS TFC - 122.7.
A110-3OPS IN CLASS D/E ASP TRSN TO TREASURE CHEST - KENAI ATCT CTAF.
A110-4COND RPRT - AMGR.
A110-5SKI OPS AT YOUR OWN RISK.
A30-16/34NOT MNTND.
TREASURE CHEST (IATA: AA16) is a private airport located in KENAI, AK, US.
