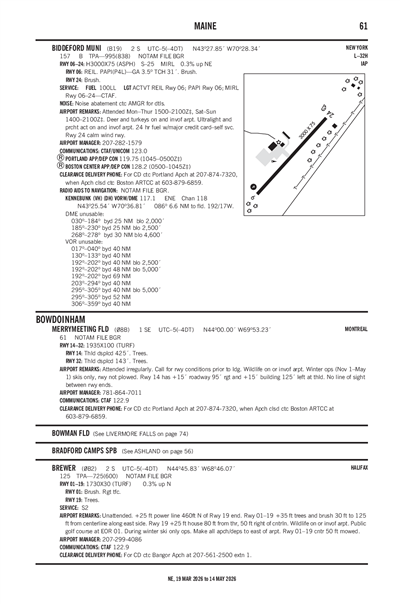

BIDDEFORD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

B19
Local B19
BIDDEFORD MUNI
PublicPUB

2 miles S of BIDDEFORD, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 27' 51"N 70° 28' 21"W
Elevation
157' MSL
Pattern Alt
995' MSL
Mag Variation
15°W
Declination
17°W
Fuel
100LL
FSS
BANGOR (BGR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
3/19/26-4/16/26
KSFM (12nm) MVFR
1:56 AM EDT
Overcast 1,200'
10sm
38°F
34°F
30.25"Hg
130° 7kts
AO2 PRESFR SLP249 60000 T00330011 10033 20022 56039
METAR KSFM 050556Z AUTO 13007KT 10SM OVC012 03/01 A3025 RMK AO2 PRESFR SLP249 60000 T00330011 10033 20022 56039
+ Add Your Business

B19 FBOs

Promote Listing
Biddeford Municipal Airport
UNICOM: 123.0
Phone: (207) 468-3261
Other: (207) 282-1893
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 3/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.55
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
ACTVT REIL RWY 06; PAPI RWY 06; MIRL RWY 06/24 - CTAF.
UNICOM 123.0

Approach

PORTLAND APPROACH 119.75

Departure

PORTLAND DEPARTURE 119.75

Center

PORTLAND CENTER 128.2
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQ 128.2/263.05 (WATERBORO RCAG) WHEN PORTLAND ATCT CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPWM (13nm)
Sun, 4/5 1:20 AM EDT
Sun, 4/5 2:00 AM EDT - Mon, 4/6 2:00 AM EDT
MVFR
2:00 AM EDT - 4:00 AM EDT
Overcast 5,000'
Broken 2,900'
Few 1,400'
6sm
140° 10kts
IFR
4:00 AM EDT - 6:00 AM EDT
Overcast 700'
6sm
130° 11kts
LIFR
6:00 AM EDT - 9:00 AM EDT
Light Showers and Rain and Mist
Overcast 300'
2sm
110° 5kts
LIFR
9:00 AM EDT - 1:00 PM EDT
Light Showers and Rain and Fog
Overcast 200'
0.5sm
VRB° 3kts
IFR
1:00 PM EDT - 9:00 PM EDT
Light Showers and Rain and Mist
Overcast 700'
2sm
320° 5kts
VFR
9:00 PM EDT - 2:00 AM EDT
Scattered 1,500'
6sm
270° 8kts
TAF KPWM 050520Z 0506/0606 14010KT P6SM FEW014 BKN029 OVC050
   FM050800 13011KT P6SM OVC007
   FM051000 11005KT 2SM -SHRA BR OVC003
   FM051300 VRB03KT 1/2SM -SHRA FG OVC002
   FM051700 32005KT 2SM -SHRA BR OVC007
   FM060100 27008KT P6SM SCT015
B19
No NOTAM Available
No
MON-THUR 1000-1600
SAT-SUN 0900-1600
CITY OF BIDDEFORD
BOX 586 205 MAIN ST.
BIDDEFORD, ME 04005
Phone: 207-284-9307
JEFF DEMERS
371 HILL STREET
BIDDEFORD, ME 04005
Phone: 207-282-1579
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
ACTVT REIL RWY 06; PAPI RWY 06; MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Parachute Jump Activity

Runway 06/24

3000 ft. x 75 ft.
ASPH
Excellent
NONE
MED

25,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 41°221°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 43° 27' 40"N 43° 28' 02"N
Longitude 70° 28' 34"W 70° 28' 07"W
Elevation 146' 155'
Threshold Crossing Height 31 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1DEER & TURKEYS ON & INVOF ARPT.
A110-3NOISE ABATEMENT CTC AMGR FOR DTLS.
A110-4ULTRALIGHT & PRCHT ACT ON & INVOF ARPT.
A110-7FOR CD CTC PORTLAND APCH AT 207-874-7320, WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A110-8BANNER TOWING AVBL.
A14PUB WORKS DEPT.
A30A-24CALM WIND RWY.
A58-067 FT BRUSH 78 FT FM THR, 151 FT R OF CNTRLN; 5 FT BRUSH 114 FT FM THR, 166 FT L OF CNTRLN.
A58-24+6-8 FT BRUSH & ROCK LEDGE 10-55 FT FM THR, 228 FT R OF CNTRLN.
A70-100LL24 HR FUEL W/MAJOR CREDIT CARD - SELF SVC.
A75-HCALL AHD FOR HNGR AVBLTY.
A81-APTACTVT REIL RWY 06; PAPI RWY 06; MIRL RWY 06/24 - CTAF.
E111EXISTED PRIOR TO 1959.
BIDDEFORD MUNI (IATA: B19) is a public airport located in BIDDEFORD, ME, US.
