MARION - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C17
MARION
PublicPUB

3 miles E of MARION, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 01' 47"N 91° 31' 54"W
861' MSL
1861' MSL
02E
JET A, 100LL, MOGAS
FORT DODGE (FOD)
CHICAGO
CHICAGO (ZAU)
11/28/24-12/26/24
KCID (12nm) IFR
2:17 PM CST
Light Freezing Rain and Mist
Overcast 600'
2sm
32°F
31°F
30.12"Hg
100° 12kts
Gusts 23kts
AO2 CIG 005V011 P0000 I1000 T00001006 $
KCID 142017Z 10012G23KT 2SM -FZRA BR OVC006 00/M01 A3012 RMK AO2 CIG 005V011 P0000 I1000 T00001006 $
Add Your Business

C17 FBOs

Promote Listing
LuxAir Aviation
UNICOM: 122.7
Phone: (319) 981-7768
Other: (319) 377-9437
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 11/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.99 5.51 5.99
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

No communication frequencies available for this airport.

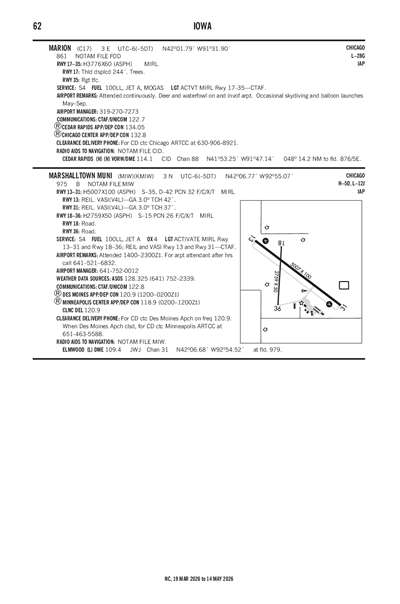

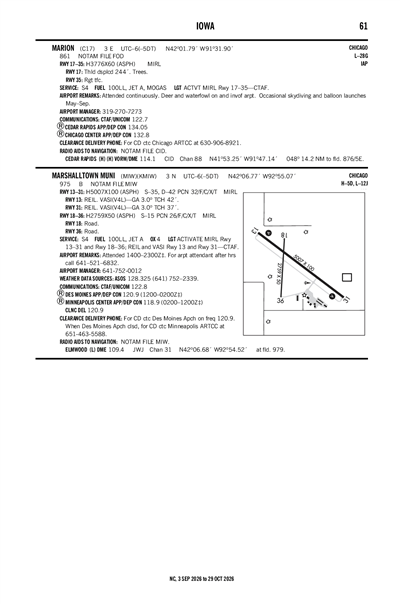

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCID (12nm)
Sat, 12/14 11:52 AM CST
Sat, 12/14 12:00 PM CST - Sun, 12/15 12:00 PM CST
IFR
12:00 PM CST - 4:00 PM CST
Light Freezing Rain and Mist
Overcast 800'
2sm
110° 16kts
Gusts 26kts
IFR
Temporary 1:00 PM CST - 3:00 PM CST
Light Freezing Rain and Drizzle
Overcast 500'
1sm
Calm
LIFR
4:00 PM CST - 9:00 PM CST
Light Rain and Mist
Overcast 400'
4sm
100° 12kts
LIFR
9:00 PM CST - 12:00 PM CST
Mist
Overcast 300'
1sm
090° 8kts
KCID 141752Z 1418/1518 11016G26KT 2SM -FZRA BR OVC008
   TEMPO 1419/1421 1SM -FZRADZ OVC005
   FM142200 10012KT 4SM -RA BR OVC004
   FM150300 09008KT 1SM BR OVC003
C17
Domestic
12/14/241323Z !FOD 12/179 C17 TWY ALL FICON ICE OBS AT 2412141322. 2412141323-2412151323
12/14/241323Z !FOD 12/178 C17 APRON ALL FICON ICE OBS AT 2412141322. 2412141323-2412151323
12/14/241322Z !FOD 12/177 C17 RWY 17 FICON 1/1/1 100 PCT ICE OBS AT 2412141322. 2412141322-2412151322
12/10/242252Z !FOD 12/112 C17 OBST TOWER LGT (ASR 1024391) 420340.00N0913243.00W (2.0NM NNW C17) 1281.8FT (423.9FT AGL) U/S 2412102252-2501242252
11/20/241511Z !FOD 11/123 C17 OBST TOWER LGT (ASR 1291959) 420228.80N0912904.40W (2.2NM ENE C17) 1040.7FT (243.8FT AGL) U/S 2411201511-2501032359
11/16/240042Z !FOD 11/097 C17 OBST TOWER LGT (ASR 1024348) 420242.00N0913849.00W (5.2NM W C17) 1529.9FT (717.8FT AGL) U/S 2411160042-2412310042
11/1/242316Z !FOD 11/012 C17 OBST TOWER LGT (ASR 1024393) 420335.00N0913236.00W (1.9NM NNW C17) 1170.9FT (309.1FT AGL) U/S 2411012316-2412162316
No
ALL
CITY OF MARION
1225 6TH AVENUE
MARION, IA 52302
Phone: (319) 743-6300
STEVE MORTON
1690 MARION AIRPORT ROAD
MARION, IA 52302
Phone: (844) 589-2376
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 17/35

3776 ft. x 60 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 174°354°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 02' 06"N 42° 01' 29"N
Longitude 91° 31' 57"W 91° 31' 52"W
Elevation 860' 854'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER & WATERFOWL ON & INVOF ARPT.
A110-2OCCASIONAL SKYDIVING AND BALLOON LAUNCHES MAY-SEP
A110-3FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
MARION (IATA: C17) is a public airport located in MARION, IA.
