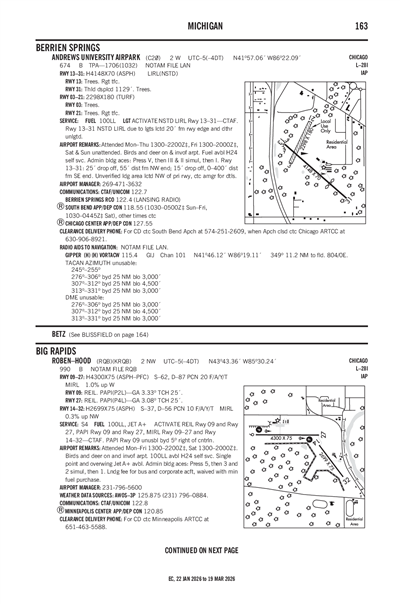

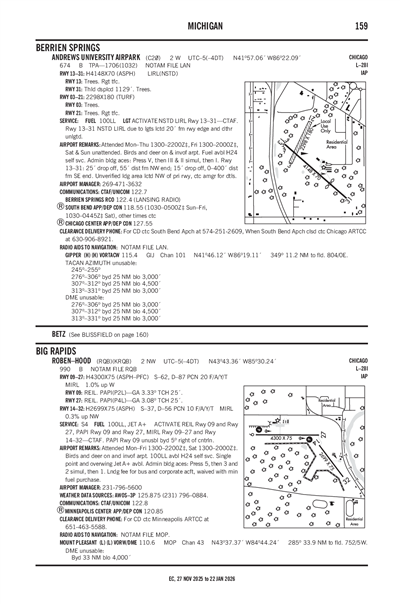

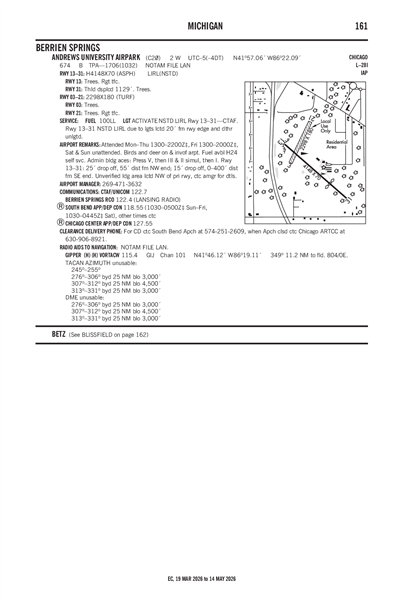

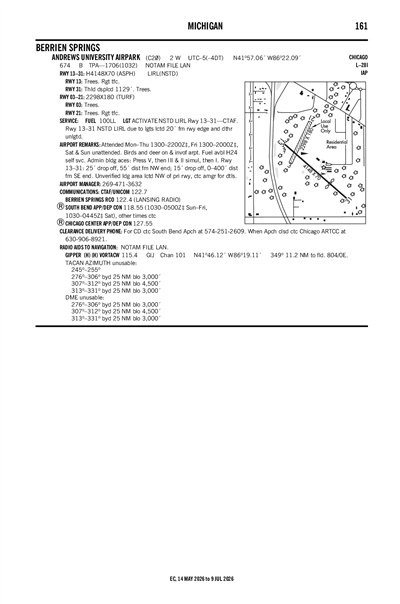

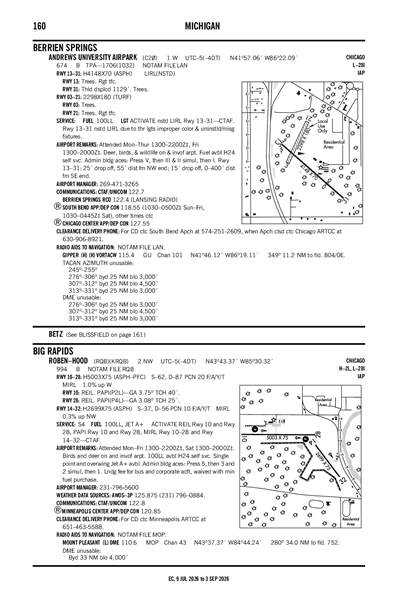

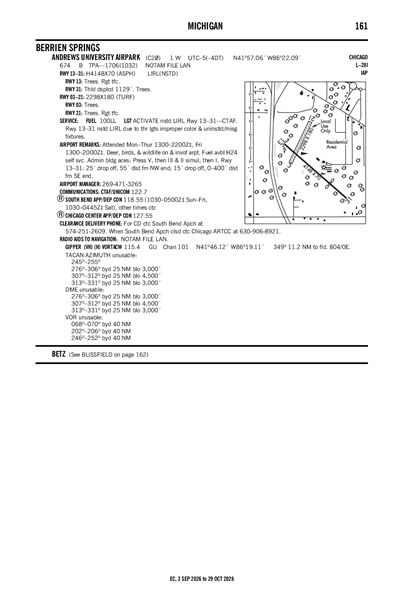

ANDREWS UNIVERSITY AIRPARK - Airport Diagram

C20

Local C20

ANDREWS UNIVERSITY AIRPARK

PublicPUB

1 miles W of BERRIEN SPRINGS, MI, US

View on Map

Status

Operational

Coordinates

41° 57' 04"N 86° 22' 05"W

Elevation

674' MSL

Pattern Alt

1706' MSL

Mag Variation

5°W

Declination

3°W

Fuel

100LL

FSS

LANSING (LAN)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

8/6/26-9/3/26

KBEH (11nm) VFR

10:53 AM EDT RAW

Few 3,300'

Viz

7sm

Temp

70°F

Dew

57°F

Pres

30.02"Hg

Wind

310° 9kts

Gusts 17kts

RMK

AO2 SLP162 T02110139 51006

METAR KBEH 231453Z AUTO 31009G17KT 7SM FEW033 21/14 A3002 RMK AO2 SLP162 T02110139 51006

Add Your Business

C20 FBOs

Promote Listing

Andrews University Airport

UNICOM: 122.7

Phone: (269) 471-3547

0 Reviews (Read | Sign In To Write)

World Fuel

As of 8/18	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.70
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

Common

CTAF	122.7
ACTVT NSTD LIRL RWY 13/31 - CTAF.
UNICOM	122.7

Approach

SOUTH BEND APPROACH

118.55

Departure

SOUTH BEND DEPARTURE

118.55

Center

SOUTH BEND CENTER	127.55
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON 127.55/307.175 (GOSHEN RCAG) WHEN SOUTH BEND APCH CTL CLSD.

Flight Service

Flight Service	122.4
(LAN)

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

TAKEOFF MINIMUMS

Instrument Approach

Terminal Area Forecast

KSBN (15nm)

RAW

Reported

Sun, 8/23 7:44 AM EDT

Valid

Sun, 8/23 8:00 AM EDT - Mon, 8/24 8:00 AM EDT

VFR

8:00 AM EDT - 11:00 AM EDT

Showers in vicinity

Broken 5,000'
Scattered 3,000'

Viz

6sm

Wind

320° 6kts

MVFR

8:00 AM EDT - 11:00 AM EDT

Light Showers and Rain and Mist

Broken 3,000'

Viz

5sm

Wind

VRB° 4kts

VFR

11:00 AM EDT - 7:00 PM EDT

Few 5,000'

Viz

6sm

Wind

320° 12kts

Gusts 22kts

VFR

7:00 PM EDT - 8:00 AM EDT

Few 25,000'

Viz

6sm

Wind

310° 5kts

TAF KSBN 231144Z 2312/2412 32006KT P6SM VCSH SCT030 BKN050
   PROB30 2312/2315 VRB04KT 5SM -SHRA BR BKN030
   FM231500 32012G22KT P6SM FEW050
   FM232300 31005KT P6SM FEW250

C20

Effective	Expires	Category	NOTAM
Domestic
6/1/26 1721Z	12/31/26 2359Z		!LAN 06/017 C20 AD AP WINDCONE SEGMENTED CIRCLE U/S 2606011721-2612312359
6/1/26 1717Z	12/31/26 2359Z	Runway	!LAN 06/016 C20 RWY 31 RWY END ID LGT U/S 2606011717-2612312359
6/1/26 1717Z	12/31/26 2359Z	Runway	!LAN 06/015 C20 RWY 13 RWY END ID LGT U/S 2606011717-2612312359
6/1/26 1715Z	12/31/26 2100Z	Runway	!LAN 06/014 C20 RWY 03/21 CLSD 2606011715-2612312100
5/4/26 1652Z	11/30/26 2359Z	Runway	!LAN 05/069 C20 RWY 31 RWY END ID LGT U/S 2605041652-2611302359
5/4/26 1652Z	11/30/26 2359Z	Runway	!LAN 05/068 C20 RWY 13 RWY END ID LGT U/S 2605041652-2611302359

ATC Tower

Attendance

MON-THUR 0800-1700
FRI 0800-1500

Owner

ANDREWS UNIVERSITY
4150 ADMINISTRATION DR
BERRIEN SPRINGS, MI 49104
Phone: 269-471-3120

Manager

ANGELO GRANT
3898 GRIGGS AVE
BERRIEN SPRINGS, MI 49103
Phone: 269-471-3265

FSS

LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF

NOTAM

LAN

Light Schedule

Lights

ACTVT NSTD LIRL RWY 13/31 - CTAF.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction

Runway 03/21

Dimensions

2298 ft. x 180 ft.

Surface Type

TURF

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	26°	206°
Traffic Pattern	Left	Right
Markings	NONE	NONE
Markings Condition
Latitude	41° 57' 03"N	41° 57' 23"N
Longitude	86° 22' 18"W	86° 22' 05"W
Elevation	667'	663'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

4148 ft. x 70 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

NSTD

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	131°	311°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	41° 57' 12"N	41° 56' 45"N
Longitude	86° 22' 22"W	86° 21' 41"W
Elevation	669'	674'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	No	No

A110-2	ADMIN BLDG ACES: PRESS V, THEN III & II SIMUL, THEN I.
A110-3	DEER, BIRDS, & WILDLIFE ON & INVOF ARPT.
A110-4	RWY 13/31: 25 FT DROP OFF, 55 FT DIST FM NW END; 15 FT DROP OFF, 0-400 FT DIST FM SE END.
A110-5	FOR CD CTC SOUTH BEND APCH AT 574-251-2609, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A40-13/31	NSTD LIRL DUE TO THR LGTS IMPROPER COLOR & UNINSTLD/MISG FIXTURES.
A52-13	80 FT PLINE, 1855 FT DIST, 290 FT R.
A57-13	CTLG OBSTN EXCEEDS A 45 DEG SLP. +70 FT TREE, 200 FT DIST, 200FT L.
A57-21	+76 FT TREES, 188 FT DIST, 0 FT L/R.
A57-31	APCH RATIO 5:1 TO DTHR OVR +120 FT TREES, 600 FT DIST, 125 FT L.
A58-13	+70 FT TREES, 0 FT DIST, 153 FT R; +70 FT TREES, 50 FT DIST, 170 FT L.
A58-31	+7 FT TREES & SHRUBS, 0-199 FT DIST, 90 FT R.
A70-100LL	AVBL H24 SELF SVC.
A75-H	CALL AHD FOR HNGR STORAGE.
A81-APT	ACTVT NSTD LIRL RWY 13/31 - CTAF.

ANDREWS UNIVERSITY AIRPARK (IATA: C20) is a public airport located in BERRIEN SPRINGS, MI, US.
