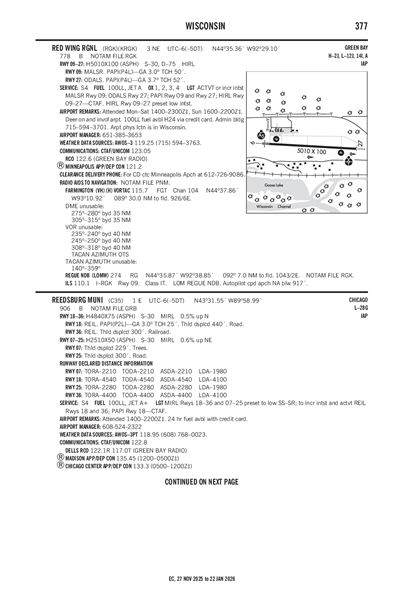

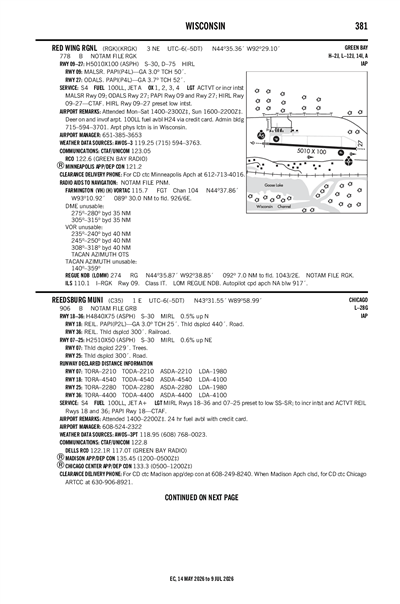

REEDSBURG MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C35
REEDSBURG MUNI
PublicPUB

1 miles E of REEDSBURG, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 31' 33"N 89° 58' 60"W
906' MSL
1906' MSL
00E
Jet A, 100LL
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
6/16/22-7/14/22
KC35 VFR
4:35 AM CDT
Clear
10sm
64°F
64°F
30.02"Hg
070° 3kts
AO2 T01770177 PWINO
KC35 070935Z AUTO 07003KT 10SM CLR 18/18 A3002 RMK AO2 T01770177 PWINO
List Your Business

C35 FBOs, Flight Schools and Ground Support

Promote Listing
Reedsburg Municipal Airport
Freq: 122.8
Phone: (608) 524-2322
Other: (563) 581-2036
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/27
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.69 5.89
Full Serve 5.89

C35 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

C35 Hotels

No hotels are listed for this airport.

C35 Restaurants

No restaurants are listed for this airport.

C35 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
608-768-0023
 118.95

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KVOK (27nm)
Thu, 7/7 4:00 AM CDT
Thu, 7/7 4:00 AM CDT - Fri, 7/8 10:00 AM CDT
LIFR
4:00 AM CDT - 5:00 AM CDT
Fog
Scattered 3,000'
0.5sm
30.00"Hg
VRB° 6kts
MVFR
Becoming 5:00 AM CDT - 6:00 PM CDT
Broken 3,000'
> 6sm
30.00"Hg
VRB° 6kts
MVFR
Becoming 6:00 PM CDT - 4:00 AM CDT
Light Showers and Rain
Broken 3,000'
Few 1,500'
5.59sm
29.97"Hg
120° 6kts
MVFR
Becoming 4:00 AM CDT - 7:00 AM CDT
Light Showers and Rain
Broken 1,500'
3.73sm
30.03"Hg
090° 6kts
MVFR
Becoming 7:00 AM CDT - 10:00 AM CDT
Broken 1,500'
> 6sm
30.09"Hg
080° 9kts
TAF KVOK 070900Z 0709/0815 VRB06KT 0800 FG SCT030 QNH2999INS
   BECMG 0710/0712 VRB06KT 9999 NSW BKN030 QNH3000INS
   BECMG 0723/0724 12006KT 9000 -SHRA FEW015 BKN030 QNH2997INS
   BECMG 0809/0810 09006KT 6000 -SHRA BKN015 QNH3003INS
   BECMG 0812/0813 08009KT 9999 NSW BKN015 QNH3008INS TX29/0722Z TN16/0711Z
C35
FDC
4/8/221100Z !FDC 2/5440 C35 ODP REEDSBURG MUNI, REEDSBURG, WI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
CHANGE TAKE OFF MINIMUMS RWY 18, TO STD. W/MIN. CLIMB OF 505 FT PER
NM TO 1400 OR 400-1¾ W/MIN. CLIMB OF 215 FT PER NM TO 2000 OR
1000-3. FOR CLIMB IN VISUAL CONDITIONS.
ADD TAKE OFF OBSTACLE NOTES RWY 36: TREES AND TRANSMISSION LINE
BEGINNING 1032 FT FROM DER, 28 FT LEFT OF CENTERLINE, UP TO UP TO
61 FT AGL/1041 FT MSL.
DELETE TAKE OFF OBSTACLE NOTES RWY 36: TREES BEGINNING 1032 FT FROM
DER, 28 FT LEFT OF CENTERLINE, UP TO 40 FT AGL/1041 FT MSL.
THIS IS TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES, AMDT
2A. 2204081100-PERM
4/6/212035Z !FDC 1/5851 C35 IAP REEDSBURG MUNI, REEDSBURG, WI.
RNAV (GPS) RWY 36, AMDT 1...
CHANGE MISSED APPROACH TO READ: CLIMBING RIGHT TURN TO 3500 DIRECT DLL VORTAC AND HOLD. CONTINUE CLIMB-IN-HOLD TO 3500..
2104062035-2304152034EST
No
0800-1600
CITY OF REEDSBURG
ARPT COMSN 200 VINE STREET
REEDSBURG, WI 53959
Phone: 608-524-2396
TOM PARKER
1720 E MAIN
REEDSBURG, WI 53959
Phone: 608-524-2322
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
MIRL RYS 18/36 & 07/25 PRESET ON LOW INTST, TO INCR INTST & ACTVT REIL RYS 18 & 36 & PAPI RY 18 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
19
1
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 07/25

2510 ft. x 50 ft.
ASPH
Good

MED

30,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 69°249°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 31' 34"N 43° 31' 43"N
Longitude 89° 59' 22"W 89° 58' 50"W
Elevation 892' 906'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

4840 ft. x 75 ft.
ASPH
Fair

MED

30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 31' 54"N 43° 31' 07"N
Longitude 89° 58' 56"W 89° 58' 56"W
Elevation 905' 881'
Threshold Crossing Height 25 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-4FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
REEDSBURG MUNI (IATA: C35) is a public airport located in REEDSBURG, WI.
