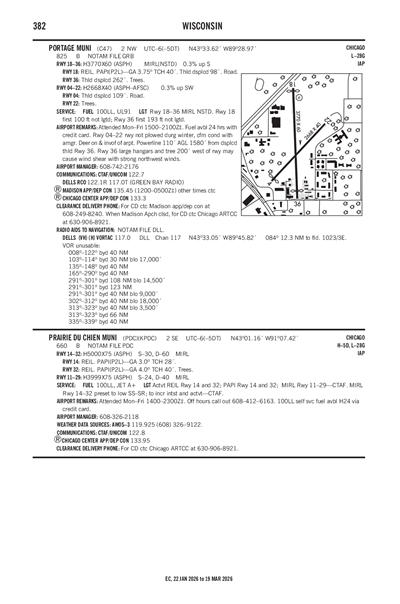

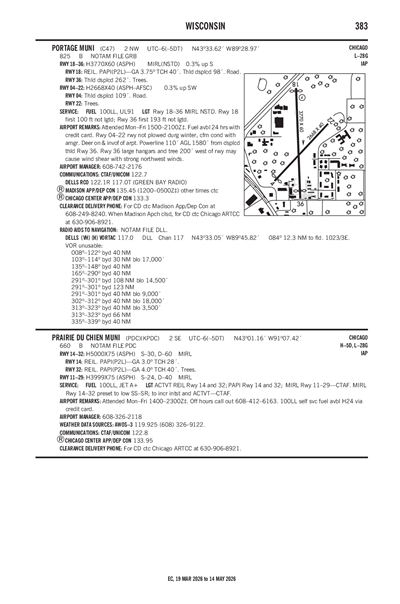

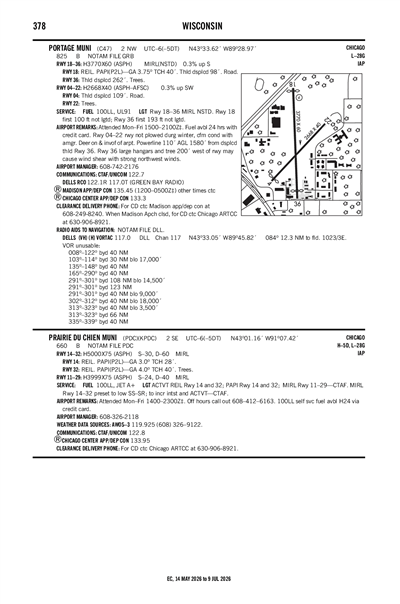

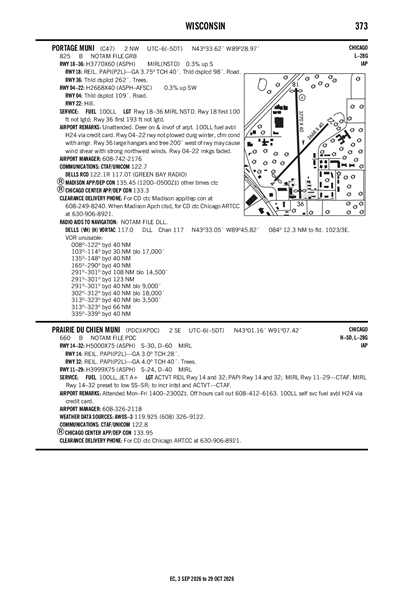

PORTAGE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C47
PORTAGE MUNI
PublicPUB

2 miles NW of PORTAGE, WI
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 33' 37"N 89° 28' 58"W
825' MSL
1825' MSL
03W
100LL, UL91
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
6/16/22-7/14/22
KDLL (13nm) MVFR
12:35 AM CDT
Light Rain
Overcast 4,500'
Broken 2,900'
Scattered 900'
10sm
68°F
68°F
29.84"Hg
160° 11kts
AO2 P0004 T02020200
KDLL 060535Z AUTO 16011KT 10SM -RA SCT009 BKN029 OVC045 20/20 A2984 RMK AO2 P0004 T02020200

C47 FBOs, Flight Schools and Ground Support

Portage Municipal Airport
Freq: 122.7
Phone: (608) 566-1343
Other: (608) 617-8995
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/21
100LL Jet A Jet A+ Mogas UL94
Self Serve 6.19
Full Serve

C47 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

C47 Hotels

No hotels are listed for this airport.

C47 Restaurants

No restaurants are listed for this airport.

C47 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMSN (27nm)
Wed, 7/6 12:20 AM CDT
Wed, 7/6 1:00 AM CDT - Thu, 7/7 1:00 AM CDT
VFR
1:00 AM CDT - 4:00 AM CDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 6,000'
Scattered 2,000'
6sm
120° 5kts
MVFR
4:00 AM CDT - 5:00 AM CDT
Light Showers and Rain
Overcast 2,000'
Scattered 1,500'
> 6sm
090° 6kts
MVFR
5:00 AM CDT - 1:00 PM CDT
Overcast 1,000'
> 6sm
080° 8kts
MVFR
1:00 PM CDT - 1:00 AM CDT
Broken 2,300'
> 6sm
070° 7kts
KMSN 060520Z 0606/0706 12005KT 6SM -SHRA VCTS SCT020 BKN060CB
   FM060900 09006KT P6SM -SHRA SCT015 OVC020
   FM061000 08008KT P6SM OVC010
   FM061800 07007KT P6SM BKN023
C47
Domestic
7/1/220220Z !GRB 07/001 C47 OBST TOWER LGT (ASR 1295080) 434107.60N0893911.20W (10.5NM NW C47) 1150.9FT (259.8FT AGL) U/S 2207010220-2209022359
6/30/222022Z !GRB 06/493 C47 OBST TOWER LGT (ASR 1285062) 434459.00N0892931.60W (11.4NM N C47) 1008.2FT (227.0FT AGL) U/S 2206302022-2208142021
6/29/220521Z !GRB 06/465 C47 OBST TOWER LGT (ASR 1283989) 434704.50N0892844.50W (13.5NM NE C47) 1142.1FT (307.1FT AGL) U/S 2206290521-2207140421
6/27/221451Z !GRB 06/436 C47 RWY 18 RWY END ID LGT U/S 2206271451-2207152359
5/26/221702Z !GRB 05/357 C47 OBST TOWER LGT (ASR 1285249) 434018.70N0892807.90W (6.7NM NE C47) 1016.1FT (226.0FT AGL) U/S 2205261702-2207101701
5/20/221341Z !GRB 05/286 C47 RWY 18 RWY END ID LGT U/S 2205201341-2211202111EST
5/10/221351Z !GRB 05/128 C47 OBST STACK (ASN UNKNOWN) 433336N0892858W (200FT E APCH END RWY 22) 845FT (25FT AGL) NOT LGTD 2205101351-2208312359
FDC
5/4/221636Z !FDC 2/8974 C47 IAP PORTAGE MUNI, PORTAGE, WI.
RNAV (GPS) RWY 18, ORIG...
LNAV MDA 1320/HAT 501 ALL CATS. DELETE NOTE: DME DME RNP-0.3NA.
PBN REQUIREMENTS NOTE: RNP APCH - GPS.
CHART FAS OBST: 1011 TREE (55-098758) 433534N/0892851W.
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT WREST ON
V170 EASTBOUND.
THIS IS RNAV (GPS) RWY 18, ORIG-A. 2205041636-PERM
No
APR-NOV MON-FRI 0800-1600
DEC-MAR MON-FRI 0900-1500
CITY OF PORTAGE
115 PLEASANT
PORTAGE, WI 53901
Phone: 608-742-2176
ERIC PETERSON
1011 SILVER LAKE DRIVE, BOX 319
PORTAGE, WI 53901
Phone: 608-566-1343
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
--
Clear-Green
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
22
0
0
0
0
0
None
None
None
None
None

Runway 04/22

2668 ft. x 40 ft.
ASPH
Fair
AFSC


--
--
--
--
  Runway 04 Runway 22
True Heading 43°223°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 33' 26"N 43° 33' 45"N
Longitude 89° 29' 10"W 89° 28' 45"W
Elevation 825' 816'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

3770 ft. x 60 ft.
ASPH
Good

NSTD

--
--
--
--
  Runway 18 Runway 36
True Heading 178°358°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 33' 57"N 43° 33' 20"N
Longitude 89° 29' 00"W 89° 28' 58"W
Elevation 811' 822'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3.75° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-2DEER ON & INVOF OF ARPT.
A110-3RWY 36 LRG HNGRS & TREE 200 FT W OF MAY CAUSE WIND SHEAR WITH STRONG NW WINDS.
A110-4POWERLINE 110 FT AGL 1580 FT FM DSPLCD THLD RY 36.
A110-5FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
PORTAGE MUNI (IATA: C47) is a public airport located in PORTAGE, WI.
