iFlightPlanner



...

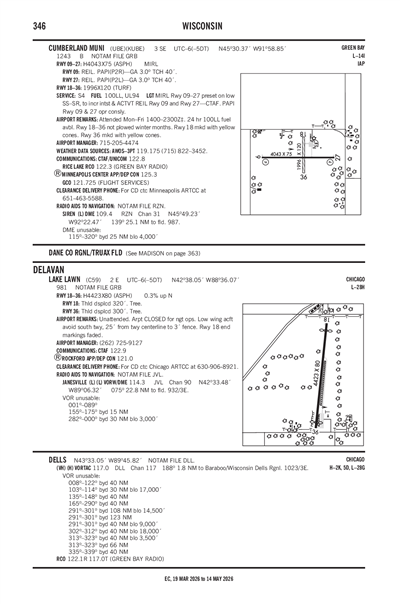

LAKE LAWN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C59
Local C59
LAKE LAWN
PublicPUB

2 miles E of DELAVAN, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 38' 03"N 88° 36' 04"W
Elevation
981' MSL
Pattern Alt
1981' MSL
Mag Variation
3°W
Declination
2°W
Fuel
None Listed
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KBUU (13nm) MVFR
12:15 PM CDT
Overcast 1,400'
7sm
37°F
35°F
29.36"Hg
040° 7kts
AO2 T00300017 PWINO
METAR KBUU 151715Z AUTO 04007KT 7SM OVC014 03/02 A2936 RMK AO2 T00300017 PWINO
+ Add Your Business

C59 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Approach

ROCKFORD APPROACH 121.0

Departure

ROCKFORD DEPARTURE 121.0

FAA A/FD Pages

Terminal Area Forecast

KJVL (20nm)
Sun, 3/15 11:51 AM CDT
Sun, 3/15 12:00 PM CDT - Mon, 3/16 7:00 AM CDT
IFR
12:00 PM CDT - 4:00 PM CDT
Rain and Mist
Overcast 1,600'
2sm
040° 10kts
IFR
4:00 PM CDT - 10:00 PM CDT
Light Rain and Mist
Overcast 500'
4sm
340° 18kts
Gusts 27kts
LIFR
8:00 PM CDT - 10:00 PM CDT
Light Freezing Rain and Snow
Overcast 400'
3sm
Calm
IFR
10:00 PM CDT - 2:00 AM CDT
Light Snow
Overcast 1,000'
Broken 700'
2sm
360° 20kts
Gusts 31kts
MVFR
2:00 AM CDT - 7:00 AM CDT
Light Snow and Blowing Snow
Overcast 1,000'
4sm
330° 20kts
Gusts 32kts
TAF KJVL 151651Z 1517/1612 04010KT 2SM RA BR OVC016
   FM152100 34018G27KT 4SM -RA BR OVC005
   PROB30 1601/1603 3SM -FZRASN OVC004
   FM160300 36020G31KT 2SM -SN BKN007 OVC010
   FM160700 33020G32KT 4SM -SN BLSN OVC010
C59
No NOTAM Available
No
UNATNDD
DELEVAN LAKE LAWN MANAGEMENT
2400 EAST GENEVA ST
DELAVAN, WI 53115
Phone: 262-728-7950
DANIEL LYNG
2400 EAST GENEVA ST
DELAVAN, WI 53115
Phone: (262) 725-9127
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 18/36

4423 ft. x 80 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 185°5°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 42° 38' 25"N 42° 37' 41"N
Longitude 88° 36' 02"W 88° 36' 07"W
Elevation 979' 967'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No
A110-5ARPT CLSD FOR NIGHT OPNS.
A110-6LOW WING ACFT AVOID SOUTH TWY, 25 FT FM TWY CENTERLINE TO 3 FT FENCE.
A110-7FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A42-18_CONDMARKINGS FADED.
A42-36_CONDMARKINGS FADED.
A57-18APCH RATIO 20:1 TO DSPLCD THR.
A57-36APCH RATIO 20:1 TO DSPLCD THR.
A58-184 FT FENCE 12 FT FM RWY END; RD 40 FT FM RWY END.
A58-364 FT FENCE 5 FT FM RWY END; RD 30 FT FM RWY END.
E111TFC PTN OPER TO W OF DELAVAN LAKE BTWN ARPT & TWIST ARPT 1 1/2 NM SE.
LAKE LAWN (IATA: C59) is a public airport located in DELAVAN, WI, US.
