PLYMOUTH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C65
PLYMOUTH MUNI
PublicPUB

2 miles N of PLYMOUTH, IN
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 21' 54"N 86° 18' 01"W
800' MSL
1800' MSL
05W
Jet A, 100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
6/16/22-7/14/22
KC65 IFR
5:35 AM EDT
Mist
Clear
2.5sm
66°F
66°F
30.03"Hg
Calm
A01
KC65 070935Z AUTO 00000KT 2 1/2SM BR CLR 19/19 A3003 RMK A01

C65 FBOs, Flight Schools and Ground Support

Plymouth Municipal Airport
Freq: 122.975
Phone: (574) 935-5152
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/1
100LL Jet A Jet A+ Mogas UL94
Self Serve 6.51 5.35 5.35
Full Serve 6.51 5.35 5.35

C65 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

C65 Hotels

No hotels are listed for this airport.

C65 Restaurants

No restaurants are listed for this airport.

C65 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 122.975

AWOS-3

AWOS-3
574-935-3854
133.025

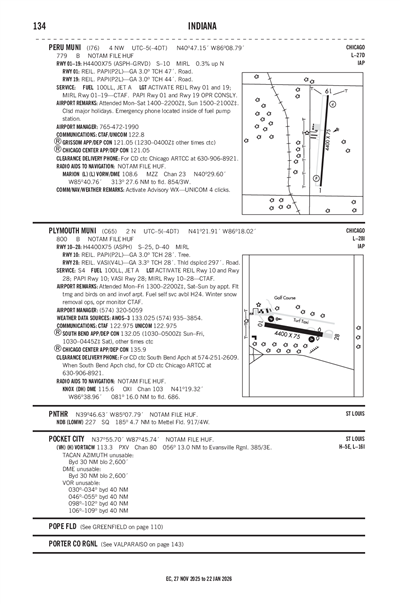

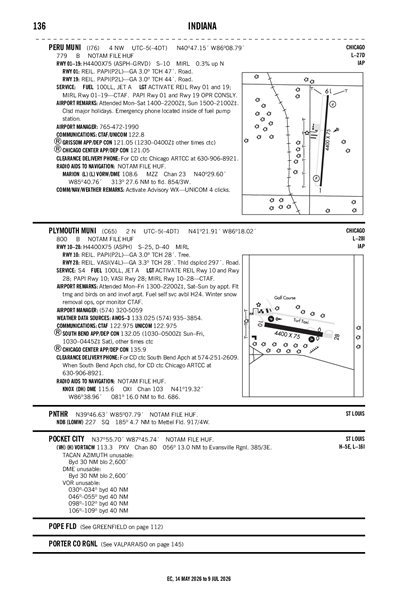

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSBN (20nm)
Thu, 7/7 1:20 AM EDT
Thu, 7/7 2:00 AM EDT - Fri, 7/8 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Broken 20,000'
Scattered 3,000'
> 6sm
090° 5kts
MVFR
Temporary 5:00 AM EDT - 8:00 AM EDT
Mist
No Clouds
4sm
Calm
VFR
11:00 AM EDT - 2:00 AM EDT
Scattered 4,000'
> 6sm
140° 6kts
KSBN 070520Z 0706/0806 09005KT P6SM SCT030 BKN200
   TEMPO 0709/0712 4SM BR
   FM071500 14006KT P6SM SCT040
C65
Domestic
4/30/220845Z !HUF 04/611 C65 OBST TOWER LGT (ASR 1214808) 412655.00N0860937.00W (8.1NM NE C65) 1079.1FT (253.9FT AGL) U/S 2204300845-2207290400
4/22/221301Z !HUF 04/470 C65 TWY PARL TWY CLSD 2204221301-2212312359
1/19/220501Z !HUF 01/455 C65 AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
5/3/221807Z !FDC 2/8101 C65 IAP PLYMOUTH MUNI, PLYMOUTH, IN.
VOR RWY 28, AMDT 11A...
S-28 MDA CATS A/B/C 1400/HAT 604 VISIBILITY CAT C 1 ¾. CIRCLING MDA
CATS A/B 1400/HAA 600. DELETE ZENRA FIX MINIMUMS. CHART NOTE:
STRAIGHT-IN RWY 28 NA AT NIGHT, CIRCLING RWY 28 NA AT NIGHT. DELETE
NOTE: RWY 28 HELICOPTER VISIBILITY REDUCTION BELOW ¾ SM NA. CHART
NOTE: RWY 28 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA. CHART
ALTIMETER SETTING NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT
RECEIVED, USE SOUTH BEND ALTIMETER SETTING AND INCREASE ALL MDAS 60
FEET AND S-28 VISIBILITY CAT C 1/8 SM, AND CIRCLING VISIBILITY CAT
C 1/4 SM. DELETE NOTE: *1360 WHEN USING SOUTH BEND ALTIMETER
SETTING. DELETE FIX: ZENRA OXI 17.6 DME *1300.
THIS IS VOR RWY 28, AMDT 11B. 2205031807-PERM
5/3/221806Z !FDC 2/8093 C65 IAP PLYMOUTH MUNI, PLYMOUTH, IN.
RNAV (GPS) RWY 28, ORIG-A...
LPV DA ALL CATS 1103/HAT 307. LNAV/VNAV DA ALL CATS 1189/HAT 393,
LNAV/VNAV VISIBILITY 1 1/8 ALL CATS. DELETE NOTE: RWY 28 HELICOPTER
VISIBILITY REDUCTION BELOW 3/4 SM NA. CHART NOTE: RWY 28 HELICOPTER
VISIBILITY REDUCTION BELOW 1 SM NA. CHANGE NOTE TO READ: WHEN LOCAL
ALTIMETER SETTING NOT RECEIVED, USE SOUTH BEND ALTIMETER SETTING
AND INCREASE LPV DA TO 1154 FEET AND VISIBILITY ALL CATS 1/4 SM;
LNAV/VNAV DA TO 1240 FEET AND VISIBILITY ALL CATS 1/4 SM, INCREASE
ALL MDAS 60 FEET AND LNAV VISIBILITY CAT C 1/8 SM, AND CIRCLING
VISIBILITY CAT C 1/4 SM. CHART NOTE: STRAIGHT-IN RWY 28 NA AT
NIGHT, CIRCLING RWY 28 NA AT NIGHT. DELETE NOTE: BARO-VNAV AND VDP
NA WHEN USING SOUTH BEND ALTIMETER SETTING. CHART NOTE: BARO-VNAV
NA WHEN USING SOUTH BEND ALTIMETER SETTING. DELETE PROFILE NOTE:
*VDP AT 1.01 NM TO RW28. DELETE NOTE: RNP APCH. CHART PBN
REQUIREMENTS NOTE: RNP APCH-GPS. DELETE NOTE: *LNAV ONLY. DELETE
ASTERISK FROM MINIMUM ALTITUDE AT WEEPS 2.2 NM TO RW28 1540.
THIS IS RNAV (GPS) RWY 28, ORIG-B. 2205031806-PERM
No
MON-FRI 0800-1700
SAT-SUN BY APPT
PLYMOUTH BOAC
301 AIRPORT DRIVE
PLYMOUTH, IN 46563
Phone: 574-935-5152
BILL SHELEY
301 AIRPORT DRIVE
PLYMOUTH, IN 46563
Phone: (574) 320-5059
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT REIL RWY 10 & 28; PAPI RWY 10; VASI RWY 28; MIRL RWY 10/28 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
19
2
0
2
0
0
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 10/28

4400 ft. x 75 ft.
ASPH
Good

MED

25,000lbs
40,000lbs
--
--
  Runway 10 Runway 28
True Heading 96°276°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 21' 57"N 41° 21' 52"N
Longitude 86° 18' 30"W 86° 17' 32"W
Elevation 796' 800'
Threshold Crossing Height 28 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3.3°
Visual Slope Indicator P2L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1FLT TRNG & BIRDS ON & INVOF ARPT.
A110-3WINTER SNOW REMOVAL OPS; OPR MONITOR CTAF.
A110-4FOR CD CTC SOUTH BEND APCH AT 574-251-2609. WHEN SOUTH BEND APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
PLYMOUTH MUNI (IATA: C65) is a public airport located in PLYMOUTH, IN.
