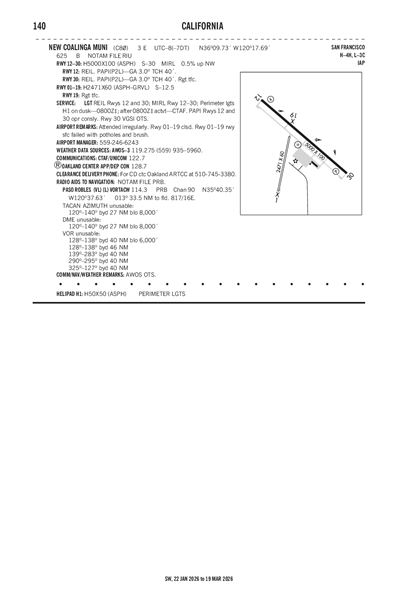

NEW COALINGA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C80
Local C80
NEW COALINGA MUNI
PublicPUB

3 miles E of COALINGA, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 09' 44"N 120° 17' 41"W
Elevation
625' MSL
Pattern Alt
1625' MSL
Mag Variation
12°E
Declination
15°E
Fuel
None Listed
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
6/11/26-7/9/26
KNLC (19nm) VFR
2:56 PM PDT
Clear
10sm
95°F
53°F
29.79"Hg
350° 8kts
Gusts 14kts
AO2 SLP087 RH/23 T03500117
METAR KNLC 252156Z 35008G14KT 310V010 10SM CLR 35/12 A2979 RMK AO2 SLP087 RH/23 T03500117
+ Add Your Business

C80 FBOs

Promote Listing
New Coalinga Municipal Airport
UNICOM: 122.7
Phone: (559) 935-1533
Other: Ext-. 13
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 6/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.72
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.275
(559) 935-5960

Common

CTAF 122.7
REIL RWYS 12 & 30; MIRL RWY 12/30; PERIMETER LGTS H1 ON DUSK-0000; AFTER 0000 ACTVT - CTAF. PAPI RWYS 12 & 30 OPR CONSLY.
UNICOM 122.7

Center

OAKLAND CENTER 128.7
LOW, APCH/DEP CTLSVC PRVDD BY OAKLAND ARTCC (ZOA) ON 128.7/307.0 (PRIEST RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KNLC (19nm)
Thu, 6/25 7:00 AM PDT
Thu, 6/25 8:00 AM PDT - Fri, 6/26 8:00 AM PDT
VFR
8:00 AM PDT - 9:00 AM PDT
Few 1,400'
6sm
29.85"Hg
320° 7kts
VFR
Becoming 9:00 AM PDT - 7:00 PM PDT
Sky Clear
6sm
29.70"Hg
VRB° 6kts
VFR
Becoming 7:00 PM PDT - 8:00 AM PDT
Few 21,000'
6sm
29.73"Hg
330° 11kts
Gusts 20kts
TAF KNLC 251400Z 2515/2615 32007KT 9999 FEW014 QNH2985INS
   BECMG 2516/2518 VRB06KT 9999 SKC QNH2971INS
   BECMG 2602/2604 33011G20KT 9999 FEW210 QNH2973INS TX36/2523Z TN17/2613Z FS30067
C80
EffectiveExpiresCategoryNOTAM
Domestic
6/20/26
0347Z
9/18/26
0347Z
!RIU 06/142 C80 OBST TOWER LGT (ASR 1288271) 355329.70N1200249.50W (20.5NM SE C80) 718.8FT (154.9FT AGL) U/S 2606200347-2609180347
5/20/26
1712Z
!RIU 05/150 C80 SVC AUTOMATED WX BCST SYSTEM U/S 2605201712-2706302359EST
FDC
5/6/26
1836Z
!FDC 6/8441 C80 IAP NEW COALINGA MUNI, COALINGA, CA.
RNAV (GPS) RWY 30, ORIG...
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE LEMOORE ALTIMETER SETTING AND INCREASE LPV DA TO 1032 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE LNAVVNAV DA TO 1126 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL MDAS 100 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM, AND CIRCLING VISIBILITY CAT C 1/2 SM.
CHART NOTE: BARO-VNAV AND VDP NA WHEN USING LEMOORE ALTIMETER SETTING.
AWOS OUT OF SERVICE INDEFINITELY.
2605061836-2805061833EST
7/29/25
1716Z
!FDC 5/6681 C80 IAP NEW COALINGA MUNI, COALINGA, CA.
RNAV (GPS) RWY 30, ORIG...
TERMINAL ROUTE FROM AVE VOR/DME TO OXOFE NA.
2507291716-2707291716EST
No
IREG
CITY OF COALINGA
CITY HALL 155 W DURIAN
COALINGA, CA 93210
Phone: 559-935-1533
MERCEDES GARCIA
THE CITY OF COALINGA 155 W DURIAN
COALINGA, CA 93210
Phone: 559-246-6243
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
REIL RWYS 12 & 30; MIRL RWY 12/30; PERIMETER LGTS H1 ON DUSK-0000; AFTER 0000 ACTVT - CTAF. PAPI RWYS 12 & 30 OPR CONSLY.
DUSK-DAWN.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 01/19

2471 ft. x 60 ft.
ASPH GRVL
Failed
NONE


12,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 12°192°
Traffic Pattern Right
Markings BSC BSC
Markings Condition POOR POOR
Latitude 36° 09' 24"N 36° 09' 48"N
Longitude 120° 17' 52"W 120° 17' 46"W
Elevation 607' 608'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5000 ft. x 100 ft.
ASPH
Fair
NONE
MED

30,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 131°311°
Traffic Pattern Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 36° 10' 04"N 36° 09' 31"N
Longitude 120° 18' 01"W 120° 17' 15"W
Elevation 625' 602'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

50 ft. x 50 ft.
ASPH
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 36° 09' 44"N N/A
Longitude 120° 17' 41"W N/A
Elevation 606' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
A110-3AWOS OTS.
A14MGARCIA@COALINGA.COM
A30-01/19RWY CLSD.
A33-01/19_CONDRWY SFC FAILED WITH POTHOLES AND BRUSH.
A43-30RWY 30 VGSI OTS.
A81-APTREIL RWYS 12 & 30; MIRL RWY 12/30; PERIMETER LGTS H1 ON DUSK-0000; AFTER 0000 ACTVT - CTAF. PAPI RWYS 12 & 30 OPR CONSLY.
A81-BCNDUSK-DAWN.
NEW COALINGA MUNI (IATA: C80) is a public airport located in COALINGA, CA, US.
