COLORADO SPRINGS EAST - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

CO4
COLORADO SPRINGS EAST
PublicPUB

3 miles NW of ELLICOTT, CO
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 52' 27"N 104° 24' 35"W
6145' MSL
7145' MSL
11E
100LL
DENVER (DEN)
DENVER
DENVER (ZDV)
6/16/22-7/14/22
KFLY (9nm) VFR
9:33 PM MDT
Overcast 11,000'
Broken 8,500'
10sm
61°F
51°F
30.33"Hg
280° 6kts
AO2 T01600103
KFLY 010333Z AUTO 28006KT 10SM BKN085 OVC110 16/10 A3033 RMK AO2 T01600103

CO4 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

CO4 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

CO4 Hotels

No hotels are listed for this airport.

CO4 Restaurants

No restaurants are listed for this airport.

CO4 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

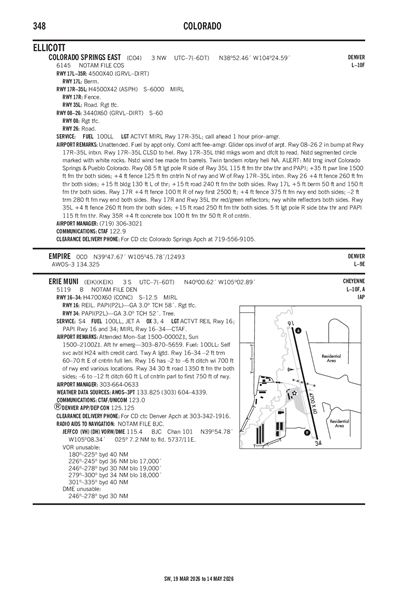

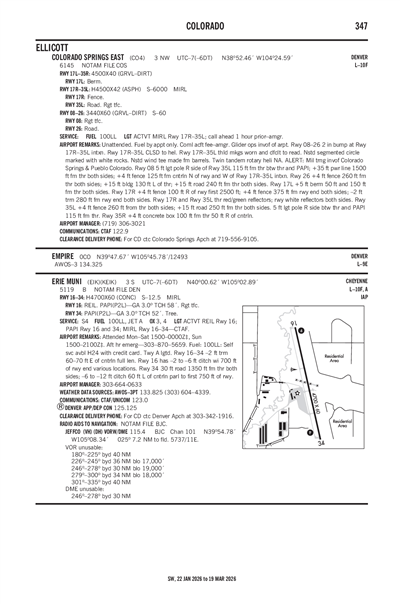

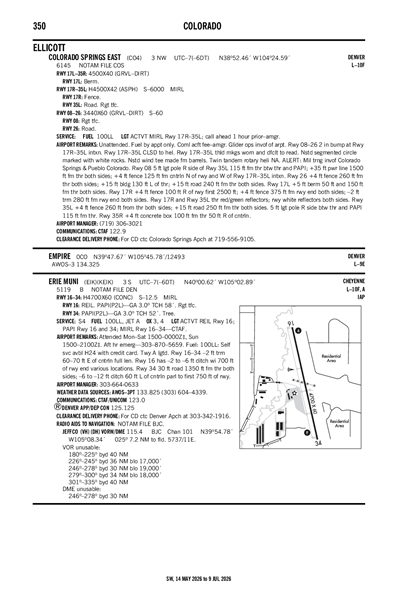

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KCOS (13nm)
Thu, 6/30 8:14 PM MDT
Thu, 6/30 8:00 PM MDT - Fri, 7/1 6:00 PM MDT
VFR
8:00 PM MDT - 10:00 PM MDT
Showers in vicinity
Broken 10,000'
Broken 7,000'
Scattered 4,000'
> 6sm
350° 9kts
VFR
Temporary 8:00 PM MDT - 10:00 PM MDT
Light Showers and Rain
No Clouds
N/A
Calm
VFR
10:00 PM MDT - 9:00 AM MDT
Broken 9,000'
Scattered 4,000'
> 6sm
350° 10kts
VFR
9:00 AM MDT - 12:00 PM MDT
Broken 20,000'
Scattered 9,000'
> 6sm
130° 9kts
VFR
12:00 PM MDT - 3:00 PM MDT
Showers in vicinity
Broken 9,000'
> 6sm
160° 12kts
VFR
3:00 PM MDT - 6:00 PM MDT
Light Showers and Rain
Broken 9,000'
Scattered 4,000'
> 6sm
270° 15kts
Gusts 25kts
KCOS 010214Z 0102/0124 35009KT P6SM VCSH SCT040 BKN070 BKN100
   TEMPO 0102/0104 -SHRA
   FM010400 35010KT P6SM SCT040 BKN090
   FM011500 13009KT P6SM SCT090 BKN200
   FM011800 16012KT P6SM VCSH BKN090
   FM012100 27015G25KT P6SM -SHRA SCT040 BKN090
CO4
No NOTAM Available
No
UNATNDD
SPRINGS EAST AIRPORT INC
3060 FLYING VIEW
CALHAN, CO 80808
Phone: (719) 632-7129
HUGH T PRIVETTE
3060 FLYING VIEW
CALHAN, CO 80808
Phone: (719) 306-3021
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
COS
--
ACTVT MIRL RWY 17R/35L - CTAF.
N/A
Yes
Yes
No
Hanger, Tie-Down
No
24
0
0
0
0
7
None
None
None
None
Glider Service

Runway 08/26

3440 ft. x 60 ft.
GRVL DIRT
Poor



60,000lbs
--
--
--
  Runway 08 Runway 26
True Heading Not ListedNot Listed
Traffic Pattern Right
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17L/35R

4500 ft. x 40 ft.
GRVL DIRT
Fair



--
--
--
--
  Runway 17L Runway 35R
True Heading Not ListedNot Listed
Traffic Pattern Left
Markings
Markings Condition
Latitude 38° 52' 50"N 38° 52' 05"N
Longitude 104° 24' 33"W 104° 24' 34"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17R/35L

4500 ft. x 42 ft.
ASPH
Fair

MED

6,000,000lbs
--
--
--
  Runway 17R Runway 35L
True Heading Not ListedNot Listed
Traffic Pattern Right
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 38° 52' 50"N 38° 52' 05"N
Longitude 104° 24' 37"W 104° 24' 37"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FEE FOR COML ACFT CTC AMGR 719-352-6965.
A110-10RWY 08 HAS +4 FT FENCE 125 FT FM CNTRLN NORTH OF RY WEST OF RWY 17R/35L INTERSECTION.
A110-11RWY 26 HAS +15 FT BLDG 130 FT LEFT OF THLD; +15FT ROAD 240 FT FM THLD OB.
A110-12RWY 17L HAS +5 FT BERM 50 FT FM THLD OB; +5 FT BERM 150 FT FM THLD OB.
A110-13RWY 35R HAS +4 FT CONCRETE BOX 100 FT FM THLD 50 RIGHT OF CNTRLN.
A110-14RWY 17R HAS +4 FT FENCE 100 FT RIGHT OF RWY FOR FIRST 2500 FT. THLD MARKED WITH RED/GREEN REFLECTORS.
A110-15RWY 35L HAS +15 FT ROAD 250 FT FM THLD OB; THLD MARKED WITH RED/GREEN REFLECTORS.
A110-16NO TWIN TANDEM ROTARY HELICOPTERS ALLOWED.
A110-17FOR CD CTC COLORADO SPRINGS APCH AT 719-556-9105.
A110-18RWY 35L HAS 5 FT RIGID LGT POLE, RT SIDE BTN THLD AND PAPI 115 FT FM RWY THLD.
A110-2RWY 08 +35 FT POWERLINE 1500 FT FROM THLD OB.
A110-3RWY 26 HAS +4 FT FENCE 260 FT FM THLD OB.
A110-4RWY 17R HAS +4 FT FENCE 375 FT FROM RWY END ON BOTH SIDES. -2 FT TERRAIN 280 FT FROM RWY END ON BOTH SIDES.
A110-5RWY 35L +4 FT FENCE 260 FT FROM THLD OB.
A110-6BE ALERT; INTENSIVE USAF STUDENT TRNG INVOF COLORADO SPRINGS & PUEBLO COLORADO.
A110-7RWY 26 HAS 2 IN BUMP AT INTXN OF RWY 17R/35L.
A110-8FOR FUEL SERVICES CTC AMGR AT 719-352-6965.
A110-9GLIDER ACTIVITY INVOF OF ARPT.
COLORADO SPRINGS EAST (IATA: CO4) is a public airport located in ELLICOTT, CO.
