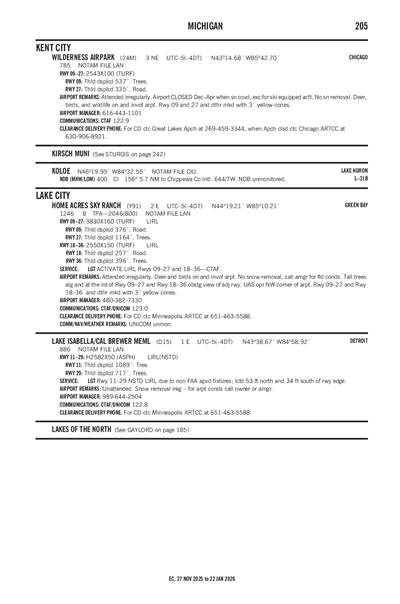

LAKE ISABELLA/CAL BREWER MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D15
Local D15
LAKE ISABELLA/CAL BREWER MEML
PublicPUB

1 miles E of LAKE ISABELLA, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 38' 40"N 84° 58' 55"W
Elevation
886' MSL
Pattern Alt
1886' MSL
Mag Variation
6°W
Declination
5°W
Fuel
None Listed
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
6/11/26-7/9/26
KMOP (10nm) VFR
11:15 PM EDT
Clear
10sm
83°F
76°F
29.92"Hg
210° 5kts
AO2 T02820245
METAR KMOP 010315Z AUTO 21005KT 10SM CLR 28/25 A2992 RMK AO2 T02820245
+ Add Your Business

D15 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KMBS (40nm)
Tue, 6/30 7:20 PM EDT
Tue, 6/30 8:00 PM EDT - Wed, 7/1 8:00 PM EDT
VFR
8:00 PM EDT - 9:00 PM EDT
Scattered 4,000'
6sm
230° 12kts
Gusts 20kts
VFR
9:00 PM EDT - 12:00 PM EDT
Few 4,500'
6sm
240° 8kts
VFR
12:00 PM EDT - 8:00 PM EDT
Scattered 6,000'
6sm
240° 12kts
Gusts 20kts
TAF KMBS 302320Z 0100/0124 23012G20KT P6SM SCT040
   FM010100 24008KT P6SM FEW045
   FM011600 24012G20KT P6SM SCT060
D15
EffectiveExpiresCategoryNOTAM
Domestic
6/30/26
1306Z
9/29/26
0400Z
!LAN 06/473 D15 OBST TOWER LGT (ASR 1000321) 433730.20N0850403.00W (3.9NM WSW D15) 1440.9FT (291.0FT AGL) U/S 2606301306-2609290400
6/23/26
1243Z
!LAN 06/370 D15 OBST TOWER LGT (ASR 1038317) 433719.00N0845307.00W (4.4NM ESE D15) 1345.1FT (500.0FT AGL) U/S 2606231243-2607082359EST
No
UNATNDD
VILLAGE OF LAKE ISABELLA
1010 CLUBHOUSE DR
LAKE ISABELLA, MI 48893
Phone: 989-644-8654
TOM COURSER
1010 CLUBHOUSE DR
LAKE ISABELLA, MI 48893
Phone: 989-644-2504
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
Sunset to Sunrise
--
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 11/29

2582 ft. x 50 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 11 Runway 29
True Heading 99°279°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 38' 42"N 43° 38' 38"N
Longitude 84° 59' 12"W 84° 58' 38"W
Elevation 886' 886'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SNOW REMOVAL IREG - FOR ARPT CONDS CALL OWNER OR AMGR.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A16CELL 989-621-3628.
A40-11/29NSTD LIRL DUE TO NON FAA APVD FIXTURES; LCTD 53 FT NORTH & 34 FT SOUTH OF RWY EDGE.
A57-11APCH RATIO 20:1 TO DTHR.
A57-29APCH RATIO 20:1 TO DTHR OVR 44 FT TREES, 800 FT DIST, 155 FT R; 10:1 OVR 66 FT TREES, 663 FT DIST, 175 FT L, 20:1 BASED ON STRAIGHT OUT.
A58-1117 FT ROAD, 41-90 FT DIST; 20 FT BLDG, 144 FT DIST, 105 FT R; 20 FT BLDG, 177 FT DIST, 120 FT L; 50 FT TREE, 199 FT DIST, 100 FT R.
A58-2915 FT ROAD, 36-83 FT DIST; 15 FT BRUSH, 40 FT DIST.
LAKE ISABELLA/CAL BREWER MEML (IATA: D15) is a public airport located in LAKE ISABELLA, MI, US.
