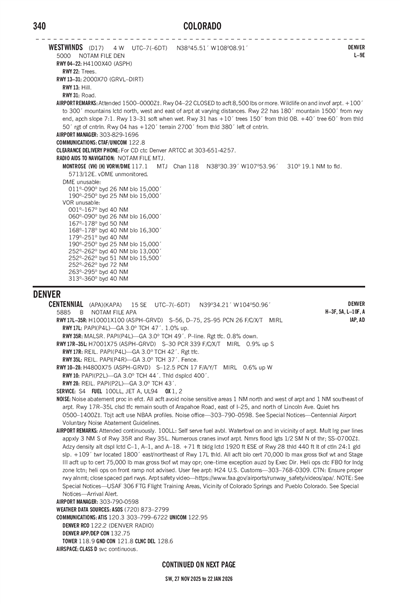

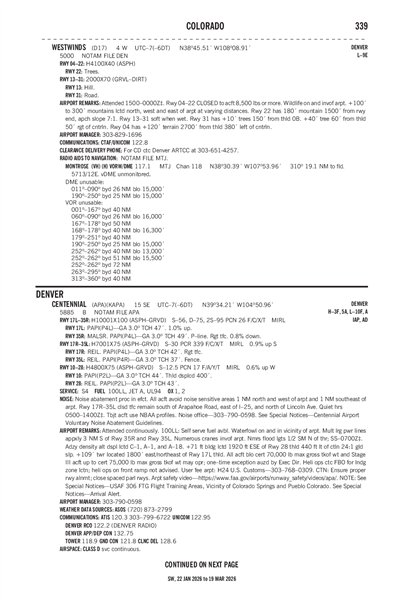

WESTWINDS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D17
Local D17
WESTWINDS
PublicPUB

4 miles W of DELTA, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 45' 30"N 108° 08' 54"W
Elevation
5000' MSL
Pattern Alt
6000' MSL
Mag Variation
9°E
Declination
12°E
Fuel
None Listed
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
5/14/26-6/11/26
KAJZ (4nm) VFR
5:35 AM MDT
Clear
10sm
48°F
22°F
30.00"Hg
Calm
AO2 T00891053
METAR KAJZ 151135Z AUTO 00000KT 10SM CLR 09/M05 A3000 RMK AO2 T00891053
+ Add Your Business

D17 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KMTJ (19nm)
Fri, 5/15 5:20 AM MDT
Fri, 5/15 6:00 AM MDT - Sat, 5/16 6:00 AM MDT
VFR
6:00 AM MDT - 9:00 AM MDT
Sky Clear
6sm
140° 8kts
VFR
9:00 AM MDT - 1:00 PM MDT
Sky Clear
6sm
VRB° 4kts
VFR
1:00 PM MDT - 4:00 PM MDT
Few 25,000'
Few 15,000'
6sm
310° 7kts
VFR
4:00 PM MDT - 10:00 PM MDT
Scattered 25,000'
6sm
310° 10kts
Gusts 18kts
VFR
10:00 PM MDT - 6:00 AM MDT
Broken 25,000'
Scattered 14,000'
6sm
130° 6kts
TAF KMTJ 151120Z 1512/1612 14008KT P6SM SKC
   FM151500 VRB04KT P6SM SKC
   FM151900 31007KT P6SM FEW150 FEW250
   FM152200 31010G18KT P6SM SCT250
   FM160400 13006KT P6SM SCT140 BKN250
D17
No NOTAM Available
No
0800-1700
WESTWINDS ASSOCIATION, INC.
1193 HWY 50, SUITE 101 1156 MUSTANG LANE
DELTA, CO 81416
Phone: 303-829-1696
TOM THOENSEN
1193 HWY 50, SUITE 101 1156 MUSTANG LANE
DELTA, CO 81416
Phone: 303-829-1696
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
Glider Service
Pilot Instruction

Runway 04/22

4100 ft. x 40 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 56°236°
Traffic Pattern
Markings
Markings Condition FAIR FAIR
Latitude 38° 45' 19"N 38° 45' 42"N
Longitude 108° 09' 09"W 108° 08' 25"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

2000 ft. x 70 ft.
GRVL DIRT
Fair
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 147°327°
Traffic Pattern
Markings
Markings Condition
Latitude 38° 45' 39"N 38° 45' 22"N
Longitude 108° 09' 17"W 108° 09' 03"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1+100 TO 300 FT MOUNTAINS LCTD NORTH; WEST & EAST OF ARPT AT VARYING DISTANCES.
A110-10RY 31 HAS +10 FT TREES 150 FT FM THLD OB; +40 FT TREE 600 FT FM THLD 50 FT R OF CNTRLN.
A110-11FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-12WILDLIFE ON AND INVOF ARPT.
A110-7RY 22 HAS 180 FT MOUNTAIN 1500 FT FROM RY END, APPCH SLOPE 7:1.
A110-8RY 4 HAS +120 FT TERRAIN 2700 FT FM THLD 380 FT L OF CNTRLN.
A110-9RY 13/31 SOFT WHEN WET.
A30-04/22CLSD TO ACFT 8,500 LBS OR MORE.
A30A-13RY 13 END CORRDINATES: 38 45 37.8 N 108 09 16.0 S
A30A-31RY 31 END COORDINATES: 38 45 22.3 N 108 09 03.2 S
A31-13/31RY END COORDINATES: RY 13: 38 45 37.77 N 108 09 15.96 W RY 31: 38 45 22.28 N 108 09 03.23 W
A58-04HAS +10 FT TREES 25 FT LEFT OF RY AT THLD.
A58-2210 FT ROAD 100 FT FM THLD ON BOTH SIDES; 15 FT SHED 150 FT FM THLD 60 FT LEFT OF CNTRLN.
WESTWINDS (IATA: D17) is a public airport located in DELTA, CO, US.
