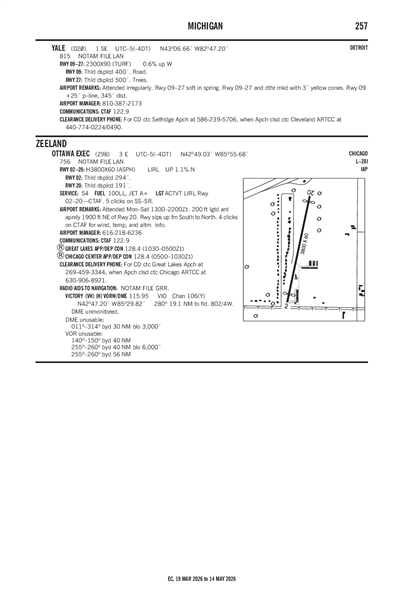

YALE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D20
Local D20
YALE
PublicPUB

1 miles SE of YALE, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 06' 40"N 82° 47' 12"W
Elevation
815' MSL
Pattern Alt
1815' MSL
Mag Variation
8°W
Declination
6°W
Fuel
None Listed
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
5/14/26-6/11/26
KPHN (16nm) VFR
3:15 AM EDT
Clear
10sm
50°F
46°F
30.20"Hg
Calm
AO2
METAR KPHN 040715Z AUTO 00000KT 10SM CLR 10/08 A3020 RMK AO2
+ Add Your Business

D20 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

CYZR (22nm)
Wed, 6/3 3:40 PM EDT
Wed, 6/3 4:00 PM EDT - Wed, 6/3 10:00 PM EDT
VFR
4:00 PM EDT - 7:00 PM EDT
Sky Clear
6sm
010° 10kts
VFR
Becoming 7:00 PM EDT - 10:00 PM EDT
Sky Clear
6sm
200° 5kts
TAF CYZR 031940Z 0320/0402 01010KT P6SM SKC
   BECMG 0323/0401 20005KT RMK FCST BASED ON AUTO OBS. NXT FCST BY 040800Z
D20
EffectiveExpiresCategoryNOTAM
Domestic
5/21/26
0553Z
7/5/26
0553Z
!LAN 05/287 D20 OBST TOWER LGT (ASR 1225772) 430845.40N0824840.70W (2.4NM NNW D20) 1117.1FT (308.1FT AGL) U/S 2605210553-2607050553
No
IREG
JERRY L NORRIS
7381 BROCKWAY RD
YALE, MI 48097
Phone: 810-387-2173
JERRY L NORRIS
7381 BROCKWAY RD
YALE, MI 48097
Phone: 810-387-2173
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

2300 ft. x 90 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 88°268°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 06' 39"N 43° 06' 40"N
Longitude 82° 47' 28"W 82° 46' 57"W
Elevation 815' 802'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-5FOR CD CTC SELFRIDGE APCH AT 586-239-5706, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A110-6RWY 09 +25 FT PLINE, 345 FT DIST.
A33-09/27_CONDSOFT IN SPRING.
A42-09_MARKRWY 09/27 & DTHR MKD WITH 3 FT YELLOW CONES.
A57-09APCH RATIO 20:1 TO DTHR.
A57-27APCH RATIO 20:1 TO DTHR.
E111ESTABD BFR 1959.
YALE (IATA: D20) is a public airport located in YALE, MI, US.
