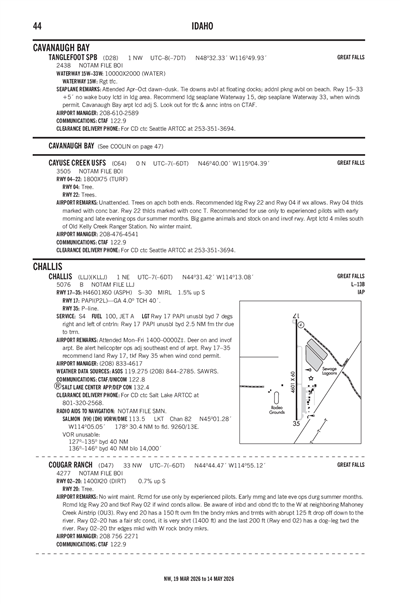

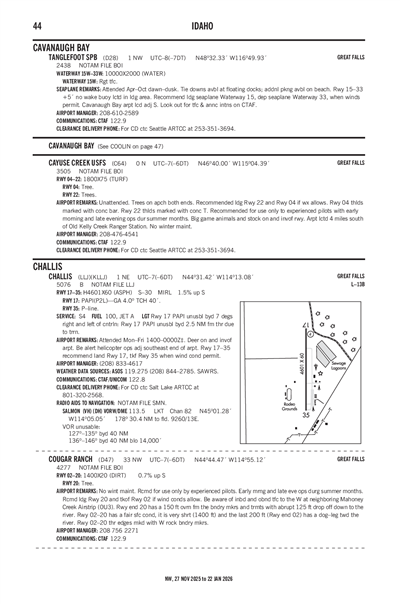

COUGAR RANCH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D47
Local D47
COUGAR RANCH
PublicPUB

33 miles NW of CHALLIS, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 44' 28"N 114° 55' 07"W
Elevation
4277' MSL
Pattern Alt
5277' MSL
Mag Variation
13°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
6/11/26-7/9/26
KLLJ (33nm) VFR
2:55 PM MDT
Few 11,000'
10sm
81°F
29°F
29.88"Hg
230° 15kts
Gusts 24kts
AO2 PK WND 26027/2015 SLP052 T02721017 56018
METAR KLLJ 252055Z AUTO 23015G24KT 10SM FEW110 27/M02 A2988 RMK AO2 PK WND 26027/2015 SLP052 T02721017 56018
+ Add Your Business

D47 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSMN (50nm)
Thu, 6/25 11:37 AM MDT
Thu, 6/25 12:00 PM MDT - Fri, 6/26 12:00 PM MDT
VFR
12:00 PM MDT - 9:00 PM MDT
Broken 9,000'
6sm
330° 6kts
VFR
1:00 PM MDT - 4:00 PM MDT
Light Thunderstorm and Rain
Overcast 5,000'
6sm
VRB° 10kts
Gusts 20kts
VFR
9:00 PM MDT - 2:00 AM MDT
Overcast 10,000'
6sm
140° 4kts
VFR
2:00 AM MDT - 8:00 AM MDT
Showers in vicinity
Overcast 8,000'
6sm
VRB° 5kts
VFR
8:00 AM MDT - 12:00 PM MDT
Light Showers and Rain
Overcast 6,000'
6sm
190° 6kts
TAF KSMN 251737Z 2518/2618 33006KT P6SM BKN090
   PROB30 2519/2522 VRB10G20KT 6SM -TSRA OVC050CB
   FM260300 14004KT P6SM OVC100
   FM260800 VRB05KT P6SM VCSH OVC080
   FM261400 19006KT P6SM -SHRA OVC060
D47
No NOTAM Available
No
Unknown
ID DEPT OF FISH AND GAME
600 S WALNUT
BOISE, ID 83707
Phone: 208 334-3700
TOM CURET
99 HIGHWAY 93 N
SALMON, ID 83467
Phone: 208 756 2271
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
Yes
No
None
No
None
None
None
None
None

Runway 02/20

1400 ft. x 20 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading 35°215°
Traffic Pattern
Markings
Markings Condition
Latitude 44° 44' 22"N 44° 44' 34"N
Longitude 114° 55' 13"W 114° 55' 01"W
Elevation 4,277' 4,267'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1OWNER DESIRES AP BE CHARTED.
A110-2NO WINT MAINT.
A110-3RCMD FOR USE ONLY BY EXPERIENCED PILOTS. EARLY MRNG & LATE EVE OPS DURG SUMMER MONTHS.
A110-4RCMD LDG RWY 20 & TKOF RWY 02 IF WND CONDS ALLOW.
A110-5BE AWARE OF INBD AND OBND TFC TO THE W AT NEIGHBORING MAHONEY CREEK USFS AIRPORT (0U3).
A30A-20RWY END HAS 150 FT OVRN FM BDRY MKRS & TRMTS WITH ABRUPT 125 FT DROP OFF DOWN TO RIVER.
A33-02/20_CONDRWY 02/20 HAS A FAIR SFC COND, IT IS VERY SHRT (1400 FT) & THE LAST 200 FT(RWY END 02) HAS A DOG LEG TWD THE RIVER.
A42-02_MARKRWY 02/20 THR EDGES MKD WITH W ROCK BNDRY MKRS.
A52-02RWY 02 CTLG OBSTN IS 6 FT 4 X 4 IN WOOD POST AT 20 FT & 15 R.
A52-20RWY 20 BE AWARE OF RISING TRRNN TO THE N - A +200 FT RIDGE LN AT 2250 FT ON CNTRLN.
A84NON-STD SEGMENTED CRC.
COUGAR RANCH (IATA: D47) is a public airport located in CHALLIS, ID, US.
