D59
GOWANDA
PublicPUB

3 miles N of GOWANDA, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 30' 14"N 78° 57' 02"W
830' MSL
1830' MSL
09W
100
BUFFALO (BUF)
DETROIT
CLEVELAND (ZOB)
11/30/23-12/28/23
KDKK (14nm) MVFR
10:53 AM EST
Light Rain
Overcast 2,100'
Broken 1,400'
10sm
42°F
36°F
29.81"Hg
290° 7kts
Gusts 16kts
AO2 SLP098 P0001 T00560022
KDKK 041553Z AUTO 29007G16KT 10SM -RA BKN014 OVC021 06/02 A2981 RMK AO2 SLP098 P0001 T00560022
List Your Business

D59 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

D59 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

D59 Hotels

No hotels are listed for this airport.

D59 Restaurants

No restaurants are listed for this airport.

D59 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

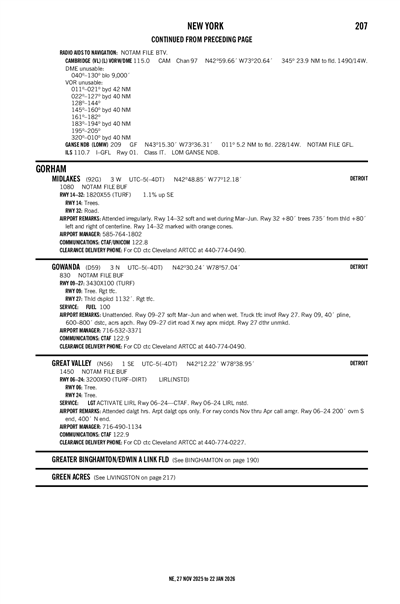

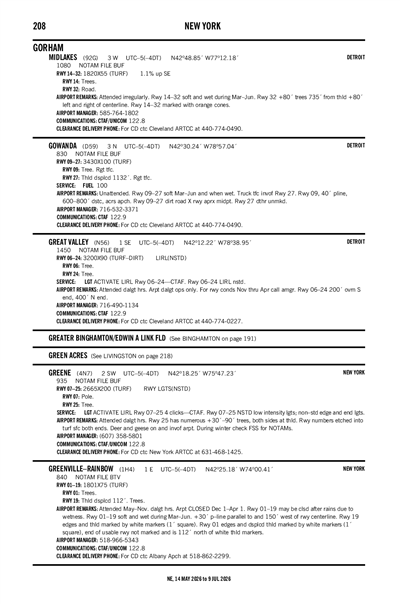

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KJHW (25nm)
Mon, 12/4 6:40 AM EST
Mon, 12/4 7:00 AM EST - Tue, 12/5 7:00 AM EST
IFR
7:00 AM EST - 2:00 PM EST
Light Showers and Rain and Showers and Snow
Overcast 900'
6sm
250° 10kts
MVFR
2:00 PM EST - 4:00 PM EST
Overcast 1,200'
6sm
280° 10kts
Gusts 17kts
IFR
Temporary 2:00 PM EST - 4:00 PM EST
Light Showers and Rain and Showers and Snow and Mist
Overcast 800'
2sm
Calm
MVFR
4:00 PM EST - 9:00 PM EST
Overcast 1,200'
6sm
280° 10kts
Gusts 17kts
IFR
9:00 PM EST - 7:00 AM EST
Overcast 700'
6sm
300° 9kts
KJHW 041140Z 0412/0512 25010KT 6SM -SHRASN OVC009
   FM041900 28010G17KT P6SM OVC012
   TEMPO 0419/0421 2SM -SHRASN BR OVC008
   FM042100 28010G17KT P6SM OVC012
   FM050200 30009KT P6SM OVC007
D59
Domestic
11/24/230224Z !BUF 11/160 D59 OBST TOWER LGT (ASR 1004283) 423333.30N0785736.10W (3.4NM N D59) 1138.1FT (241.1FT AGL) U/S 2311240224-2403230224
10/24/232007Z !BUF 10/232 D59 OBST WIND TURBINE LGT (ASN 2017-WTE-882-OE) 422344N0790603W (9.4NM SW D59) 2280FT (599FT AGL) U/S 2310242007-2312242359
No
UNATNDD
DAN GERNATT GRAVEL PROD.INC.
P.O. BOX 400
COLLINS, NY 14034
Phone: 716-532-3371
DAN GERNATT, JR.
P.O. BOX 400
COLLINS, NY 14034
Phone: 716-532-3371
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
BUF
--
--
N/A
Yes
No
No
Tie-Down
No
5
0
0
0
0
0
None
None
None
None
None

Runway 09/27

3430 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading Not ListedNot Listed
Traffic Pattern Right Right
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1TRUCK TRAFFIC NEAR RY 27.
A110-3RY 09 - +40 FT PLINE; 600 FT FROM THLD ON CNTRLN.
A110-5RY 09/27 SOFT & WET MAR-JUN.
A110-6RY 27 88 FT HIGH CONVEYOR BELT/CRANE & DIRT PILE, 200 FT FRM AER, 81 FT LEFT.
A110-7RY 9/27, DIRT ROAD CROSSES RY AT APPROX MID POINT OF RY.
A110-9FOR CD CTC CLEVELAND ARTCC AT 440-774-0490.
GOWANDA (IATA: D59) is a public airport located in GOWANDA, NY.
