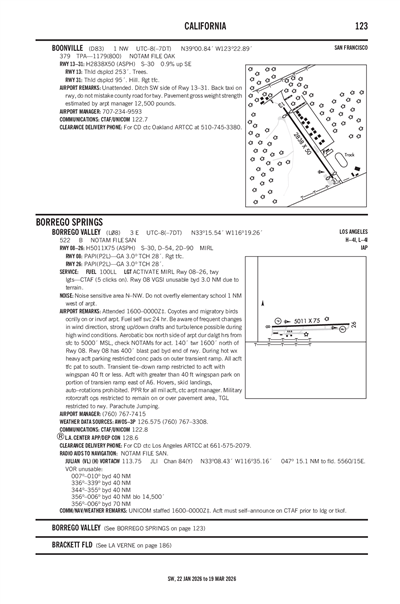

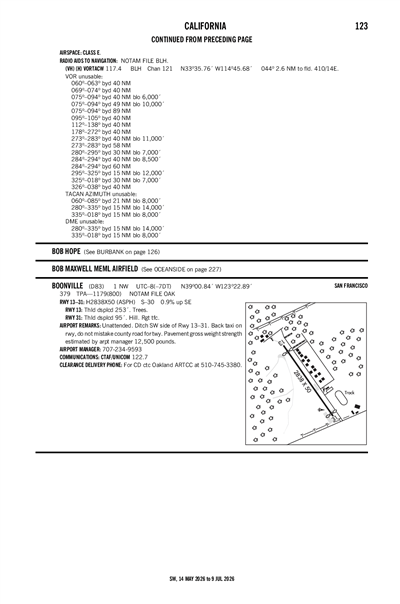

BOONVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D83
Local D83
BOONVILLE
PublicPUB

1 miles NW of BOONVILLE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 00' 50"N 123° 22' 54"W
Elevation
379' MSL
Pattern Alt
1179' MSL
Mag Variation
14°E
Declination
17°E
Fuel
None Listed
FSS
OAKLAND (OAK)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
No METAR is available for this location.
+ Add Your Business

D83 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
UNICOM 122.7

FAA A/FD Pages

Terminal Area Forecast

KUKI (11nm)
Sun, 2/22 12:18 PM PST
Sun, 2/22 12:00 PM PST - Mon, 2/23 10:00 AM PST
MVFR
Temporary 12:00 PM PST - 3:00 PM PST
Light Showers and Rain
Overcast 1,200'
Scattered 700'
3sm
150° 11kts
Gusts 18kts
MVFR
12:00 PM PST - 3:00 PM PST
Mist and Showers in vicinity
Overcast 2,000'
Broken 1,800'
4sm
150° 10kts
MVFR
3:00 PM PST - 10:00 PM PST
Showers in vicinity
Overcast 2,500'
Broken 1,500'
Scattered 900'
6sm
170° 6kts
IFR
4:00 PM PST - 10:00 PM PST
Light Showers and Rain
Broken 900'
6sm
Calm
IFR
10:00 PM PST - 1:00 AM PST
Light Showers and Rain
Broken 700'
6sm
Calm
MVFR
10:00 PM PST - 4:00 AM PST
Overcast 2,000'
Broken 1,500'
6sm
160° 3kts
IFR
4:00 AM PST - 7:00 AM PST
Light Drizzle
Broken 700'
6sm
Calm
MVFR
4:00 AM PST - 10:00 AM PST
Overcast 1,500'
Scattered 700'
6sm
Calm
TAF KUKI 222018Z 2220/2318 15010KT 4SM BR VCSH BKN018 OVC020 WS015/18030KT
   TEMPO 2220/2223 15011G18KT 3SM -SHRA SCT007 OVC012
   FM222300 17006KT P6SM VCSH SCT009 BKN015 OVC025 WS020/20025KT
   PROB30 2300/2306 P6SM -SHRA BKN009
   FM230600 16003KT P6SM BKN015 OVC020
   PROB30 2306/2309 P6SM -SHRA BKN007
   FM231200 00000KT P6SM SCT007 OVC015
   PROB30 2312/2315 P6SM -DZ BKN007
D83
EffectiveExpiresCategoryNOTAM
Domestic
8/8/25
1724Z
2/7/27
2359Z
!OAK 08/069 D83 OBST POLE LGT (ASN 2025-AWP-7582-OE) 390120N1232136W (7NM W D83) 699FT (53FT AGL) NOT LGTD 2508081724-2702072359
No
UNATNDD
ANDERSON VALLEY COMM SVCS DIST
P.O. BOX 398
BOONVILLE, CA 95415
Phone: 707-895-2075
KIRK WILDER
13461 AIRPORT ROAD
BOONVILLE, CA 95415
Phone: 707-234-9593
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
OAK
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 13/31

2838 ft. x 50 ft.
ASPH
Good
NONE


30,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 143°323°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 39° 01' 01"N 39° 00' 39"N
Longitude 123° 23' 05"W 123° 22' 43"W
Elevation 354' 378'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1DITCH SW SIDE OF RY 13/31.
A110-2BACK TAXI ON RY, DO NOT MISTAKE COUNTY ROAD FOR TWY.
A110-3FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
A35-13/31PAVEMENT GROSS WEIGHT STRENGTH ESTIMATED BY ARPT MGR 12,500 LBS.
A57-13APCH RATIO 24:1 TO DSPLCD THLD; APCH RATIO TO DSPLD THLD OVER 92 FT TREES AT 1200 FT, 175 FT R FM EOR 18:1.
A57-31APCH RATIO 22:1 TO DSPLCD THR; APCH RATIO TO DSPLCD THR OVER +15 FT ROAD 375 FT FM DSPLCD THR 125 FT LEFT 20:1.
A58-135' FENCE 250' FROM END OF RWY.
A58-31PUBLIC ROAD 235' FM RWY END.
E111NON COMPLIANCE FAR 157.
BOONVILLE (IATA: D83) is a public airport located in BOONVILLE, CA, US.
