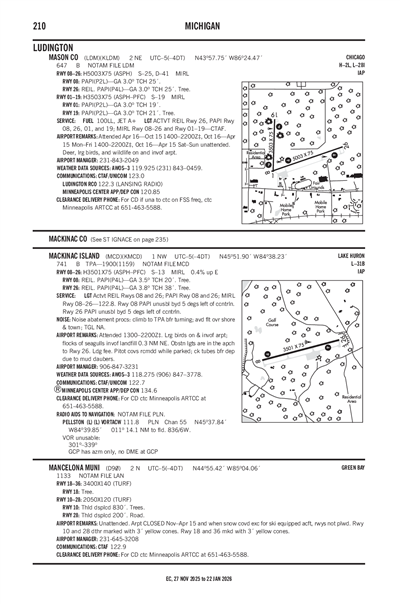

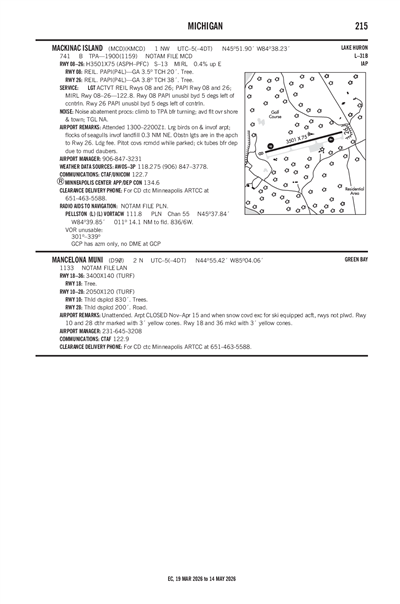

MANCELONA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D90
Local D90
MANCELONA MUNI
PublicPUB

2 miles N of MANCELONA, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 55' 25"N 85° 04' 04"W
Elevation
1133' MSL
Pattern Alt
2133' MSL
Mag Variation
7°W
Declination
5°W
Fuel
None Listed
FSS
LANSING (LAN)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KACB (7nm) IFR
11:15 AM EDT
Light Snow
Overcast 2,700'
Broken 1,900'
1.5sm
29°F
23°F
29.83"Hg
050° 11kts
Gusts 18kts
AO2 T10151052
METAR KACB 151515Z AUTO 05011G18KT 1 1/2SM -SN BKN019 OVC027 M01/M05 A2983 RMK AO2 T10151052
+ Add Your Business

D90 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KTVC (24nm)
Sun, 3/15 7:20 AM EDT
Sun, 3/15 8:00 AM EDT - Mon, 3/16 8:00 AM EDT
IFR
8:00 AM EDT - 12:00 PM EDT
Light Snow and Mist
Broken 1,300'
1.5sm
090° 13kts
Gusts 23kts
IFR
12:00 PM EDT - 4:00 PM EDT
Light Snow and Ice Pellets and Mist
Broken 1,300'
2sm
090° 16kts
Gusts 33kts
IFR
4:00 PM EDT - 11:00 PM EDT
Light Freezing Rain and Snow and Ice Pellets and Mist
Broken 1,300'
2sm
080° 12kts
Gusts 27kts
IFR
11:00 PM EDT - 5:00 AM EDT
Light Freezing Rain and Mist
Broken 800'
2sm
020° 11kts
Gusts 22kts
IFR
5:00 AM EDT - 8:00 AM EDT
Light Freezing Rain and Mist
Broken 800'
3sm
010° 14kts
Gusts 29kts
TAF KTVC 151120Z 1512/1612 09013G23KT 1 1/2SM -SN BR BKN013
   FM151600 09016G33KT 2SM -SNPL BR BKN013
   FM152000 08012G27KT 2SM -FZRASNPL BR BKN013
   FM160300 02011G22KT 2SM -FZRA BR BKN008
   FM160900 01014G29KT 3SM -FZRA BR BKN008
D90
No NOTAM Available
No
UNATNDD
MANCELONA TOWNSHIP
PO BOX 332
MANCELONA, MI 49659
Phone: 231-587-5171
SHAWN D FLEET
7507 CEDAR RIVER RD
MANCELONA, MI 49659
Phone: 231-645-3208
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 10/28

2050 ft. x 120 ft.
TURF
Good
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 102°282°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 44° 55' 21"N 44° 55' 17"N
Longitude 85° 04' 09"W 85° 03' 42"W
Elevation 1,121' 1,121'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

3400 ft. x 140 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 44° 55' 46"N 44° 55' 12"N
Longitude 85° 04' 08"W 85° 04' 09"W
Elevation 1,129' 1,129'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2ARPT CLSD NOV-APR 15 & WHEN SNOW COVD EXC FOR SKI EQUIPPED ACFT; RWYS NOT PLWD.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A42-10_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-18_MARK3 FT YELLOW CONES.
A42-28_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-36_MARK3 FT YELLOW CONES.
A52-28ALSO 62 FT TREE, 250 FT DIST, 125 FT L, APCH RATIO 4:1.
A57-10APCH RATIO 0:1 TO DTHR OVR 20 FT TREES, 0 FT DIST, 125 FT R.
A57-28APCH RATIO 7:1 TO DTHR OVR 62 FT TREE, 450 FT DIST, 125 FT L.
A75-TPILOTS MUST SUP ROPES.
E111ESTABD BFR 1959.
MANCELONA MUNI (IATA: D90) is a public airport located in MANCELONA, MI, US.
