iFlightPlanner



...

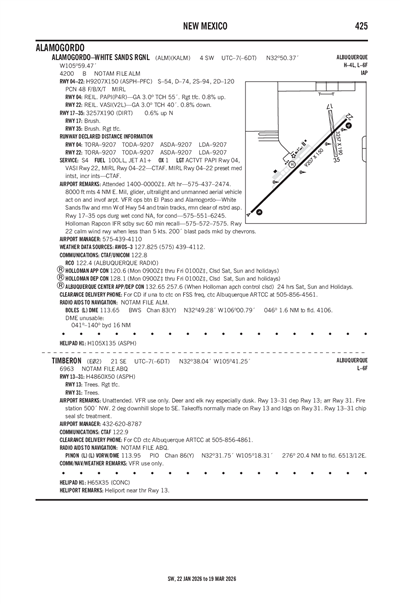

TIMBERON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E02
TIMBERON
PublicPUB

21 miles SE of ALAMOGORDO, NM
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 38' 03"N 105° 41' 15"W
6963' MSL
7963' MSL
11E
None Listed
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
6/16/22-7/14/22
KALM (19nm) VFR
10:15 AM MDT
Clear
10sm
84°F
55°F
30.13"Hg
200° 8kts
AO2
KALM 061615Z AUTO 20008KT 10SM CLR 29/13 A3013 RMK AO2

E02 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

E02 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

E02 Hotels

No hotels are listed for this airport.

E02 Restaurants

No restaurants are listed for this airport.

E02 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KHMN (25nm)
Wed, 7/6 5:34 AM MDT
Wed, 7/6 3:00 AM MDT - Thu, 7/7 9:00 AM MDT
VFR
3:00 AM MDT - 8:00 AM MDT
Broken 25,000'
Scattered 20,000'
Few 10,000'
> 6sm
30.06"Hg
VRB° 6kts
VFR
Temporary 5:00 AM MDT - 8:00 AM MDT
No Clouds
N/A
160° 15kts
Gusts 25kts
VFR
Becoming 8:00 AM MDT - 1:00 PM MDT
Few 20,000'
Few 10,000'
> 6sm
30.09"Hg
VRB° 6kts
VFR
Becoming 1:00 PM MDT - 12:00 AM MDT
Broken 25,000'
Scattered 18,000'
Scattered 10,000'
> 6sm
30.00"Hg
150° 10kts
Gusts 15kts
VFR
Temporary 10:00 PM MDT - 1:00 AM MDT
Light Rain
Broken 18,000'
Broken 10,000'
5.59sm
180° 15kts
Gusts 25kts
VFR
Becoming 12:00 AM MDT - 9:00 AM MDT
Few 18,000'
Few 10,000'
> 6sm
30.06"Hg
VRB° 6kts
TAF AMD KHMN 061134Z 0609/0715 VRB06KT 9999 FEW100 SCT200 BKN250 QNH3005INS
   TEMPO 0611/0614 16015G25KT
   BECMG 0614/0615 VRB06KT 9999 FEW100 FEW200 QNH3008INS
   BECMG 0619/0620 15010G15KT 9999 SCT100 SCT180 BKN250 QNH3001INS
   TEMPO 0704/0707 18015G25KT 9000 -RA BKN100 BKN180
   BECMG 0706/0707 VRB06KT 9999 FEW100 FEW180 QNH3005INS TX34/0623Z TN19/0612Z
E02
No NOTAM Available
No
UNATNDD
OTERO COUNTY
1101 NEW YORK AVE ROOM 106
ALAMOGORDO, NM 88310
Phone: 575-437-7427
DOC MIRROR
PO BOX 416
TIMBERON, NM 88350
Phone: 817-886-6686
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
--
N/A
Yes
No
No
None
No
1
0
0
0
0
0
None
None
None
None
None

Runway 13/31

4860 ft. x 50 ft.
ASPH
Good
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 143°323°
Traffic Pattern Right
Markings
Markings Condition
Latitude 32° 38' 22"N 32° 37' 43"N
Longitude 105° 41' 32"W 105° 40' 58"W
Elevation 6,956' 6,860'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

65 ft. x 35 ft.

CONC



--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 32° 38' 22"N N/A
Longitude 105° 41' 31"W N/A
Elevation 6,963' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 13/31 SLOPES 2 DEGS DOWNHILL TO THE SE. TAKEOFFS NORMALLY MADE ON RWY 13 & LDGS ON RWY 31.
A110-2DEER ON RWY ESPECIALLY AT TWILIGHT.
A110-3FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-4HELIPORT LOCATED NEAR THE THR RWY 13.
A110-5FIRE STATION LOCATED APPX 500 FT NW OF RWY.
TIMBERON (IATA: E02) is a public airport located in ALAMOGORDO, NM.
