E13
Local E13
CRANE COUNTY
PublicPUB

1 miles NW of CRANE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 24' 42"N 102° 21' 38"W
Elevation
2555' MSL
Pattern Alt
3555' MSL
Mag Variation
6°E
Declination
9°E
Fuel
None Listed
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
FORT WORTH (ZFW)
Data Effective
5/14/26-6/11/26
KE01 (30nm) VFR
9:15 PM CDT
Few 12,000'
Few 8,500'
Few 7,500'
10sm
90°F
43°F
29.84"Hg
190° 10kts
AO2 TSNO
METAR KE01 150215Z AUTO 19010KT 10SM FEW075 FEW085 FEW120 32/06 A2984 RMK AO2 TSNO
+ Add Your Business

E13 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.

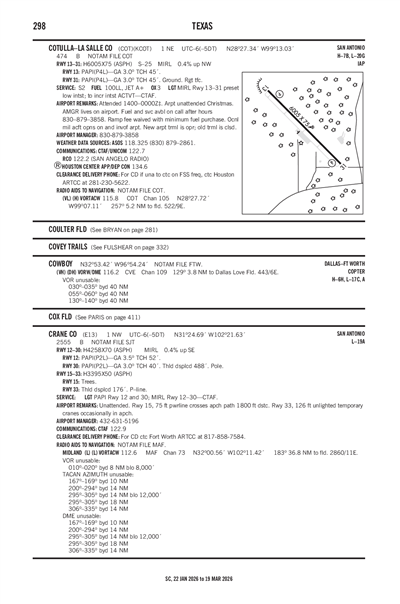

FAA A/FD Pages

Terminal Area Forecast

KMAF (33nm)
Thu, 5/14 6:24 PM CDT
Thu, 5/14 7:00 PM CDT - Fri, 5/15 7:00 PM CDT
MVFR
Temporary 7:00 PM CDT - 10:00 PM CDT
Light Thunderstorm and Rain
Broken 7,000'
5sm
VRB° 20kts
Gusts 30kts
VFR
7:00 PM CDT - 11:00 PM CDT
Broken 25,000'
6sm
190° 15kts
Gusts 25kts
VFR
11:00 PM CDT - 12:00 PM CDT
Broken 25,000'
6sm
180° 12kts
VFR
12:00 PM CDT - 7:00 PM CDT
Broken 25,000'
6sm
230° 12kts
Gusts 19kts
TAF KMAF 142324Z 1500/1524 19015G25KT P6SM BKN250
   TEMPO 1500/1503 VRB20G30KT 5SM -TSRA BKN070CB
   FM150400 18012KT P6SM BKN250
   FM151700 23012G19KT P6SM BKN250
E13
EffectiveExpiresCategoryNOTAM
Domestic
5/1/26
1405Z
6/1/26
2359Z
!SJT 05/018 E13 OBST TOWER LGT (ASR 1305884) 312549.21N1021050.76W (9.3NM E E13) 3138FT (310FT AGL) U/S 2605011405-2606012359
No
UNATNDD
CRANE COUNTY
COUNTY COURTHOUSE 201 W 6TH ST.
CRANE, TX 79731
Phone: 432-558-1100
TODD SEABOURN
COUNTY COURTHOUSE 201 W 6TH ST.
CRANE, TX 79731
Phone: 432-631-5196
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

4258 ft. x 70 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 12 Runway 30
True Heading 124°304°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 24' 54"N 31° 24' 30"N
Longitude 102° 21' 58"W 102° 21' 17"W
Elevation 2,538' 2,555'
Threshold Crossing Height 52 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

3395 ft. x 50 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-4RWY 15, 75 FT PWRLINE CROSSES APCH PATH 1800 FT DSTC.
A110-5RWY 33, 126 FT UNLIGHTED TEMPORARY CRANES OCCASIONALLY IN APCH.
A14PARKS DEPT/AMGR.
A55-1530 FT PLINE ACROSS APCH.
A57-30APCH RATIO 20:1 TO DSPLCD THR OVR 75 FT BLDG, 1458 FT DSTC, 195 FT R.
A57-33APCH SLOPE 26:1 TO DSPLCD THR; TEMPORARILY 15:1 OVR 126 FT UNLGTD OIL RIG.
A58-1510 FT RD, 135 FT DSTC, 125 FT L/R. 15 FT TREES 156 FT DSTC, 125 FT L/R.
A58-304 FT FENCE, 0-199 FT DSTC, 28 FT L-135 FT R.
A81-APTPAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
CRANE COUNTY (IATA: E13) is a public airport located in CRANE, TX, US.
