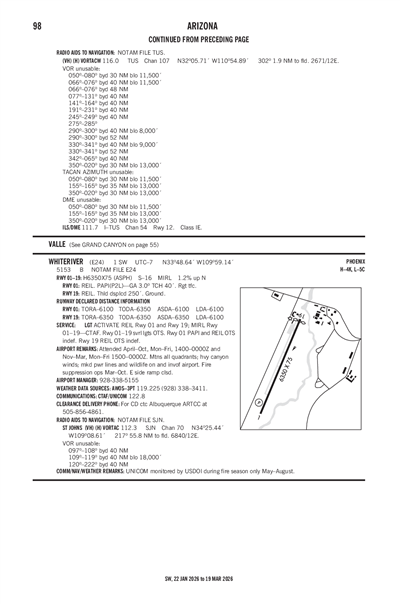

WHITERIVER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E24
Local E24
WHITERIVER
PublicPUB

1 miles SW of WHITERIVER, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 48' 38"N 109° 59' 09"W
Elevation
5153' MSL
Pattern Alt
6153' MSL
Mag Variation
9°E
Declination
12°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
6/11/26-7/9/26
KSOW (28nm) VFR
3:35 PM MST
Broken 11,000'
Broken 9,000'
10sm
88°F
43°F
30.14"Hg
220° 18kts
Gusts 28kts
AO2
METAR KSOW 252235Z AUTO 22018G28KT 10SM BKN090 BKN110 31/06 A3014 RMK AO2
+ Add Your Business

E24 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.225
(928) 338-3411

Common

CTAF 122.8
ACTVT REIL RWY 01 & 19; MIRL RWY 01/19 - CTAF.
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KINW (82nm)
Thu, 6/25 10:20 AM MST
Thu, 6/25 11:00 AM MST - Fri, 6/26 11:00 AM MST
VFR
11:00 AM MST - 2:00 PM MST
Showers in vicinity
Broken 11,000'
6sm
220° 12kts
Gusts 20kts
VFR
2:00 PM MST - 8:00 PM MST
Thunderstorm in vicinity
Broken 10,000'
6sm
240° 15kts
Gusts 25kts
VFR
2:00 PM MST - 8:00 PM MST
Light Thunderstorm and Rain
Overcast 7,000'
6sm
VRB° 20kts
Gusts 35kts
VFR
8:00 PM MST - 8:00 AM MST
Scattered 10,000'
6sm
120° 10kts
VFR
8:00 AM MST - 11:00 AM MST
Scattered 25,000'
6sm
200° 15kts
Gusts 25kts
TAF KINW 251720Z 2518/2618 22012G20KT P6SM VCSH BKN110
   FM252100 24015G25KT P6SM VCTS BKN100CB
   PROB30 2521/2603 VRB20G35KT 6SM -TSRA OVC070CB
   FM260300 12010KT P6SM SCT100
   FM261500 20015G25KT P6SM SCT250
E24
No NOTAM Available
No
APR-OCT MON-FRI 0700-1700
NOV-MAR MON-FRI 0800-1700
WHITE MTN APACHE TRIBE
P.O.BOX 700
WHITERIVER, AZ 85941
Phone: 928-338-4346
LAREESA SANCHEZ
P.O. BOX 1710
WHITERIVER, AZ 85941
Phone: 928-338-5155
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
E24
--
ACTVT REIL RWY 01 & 19; MIRL RWY 01/19 - CTAF.
N/A
No
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

6350 ft. x 75 ft.
ASPH
Good
NONE
MED

16,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 30°210°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 33° 48' 11"N 33° 49' 05"N
Longitude 109° 59' 27"W 109° 58' 50"W
Elevation 5,079' 5,153'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1MTS ALL QUADS; HVY CANYON WINDS; MKD PWR LINES & WILDLIFE ON & INVOF ARPT.
A110-10E SIDE RAMP CLSD.
A110-2FIRE SUPPRESSION OPS MAR-OCT.
A110-9FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A40-01/19SVRL LGTS OTS.
A43-01PAPI OTS INDEF.
A48-01REIL OTS INDEF.
A48-19REIL OTS INDEF.
A57-19APCH RATIO 20:1 TO DTHR.
A58-013 FT BRUSH 0-200 FT FM THR ACRS RWY END.
A58-19+10 FT ROAD 0-100 FT FM THR BOTH SIDES; +10 FT BRUSH & TREES 105-150 FT FM THR 80-120 FT L OF CNTRLN; 8 FT BERM 0-200 FT FM THR 75-250 FT R OF CNTRLN.
A81-APTACTVT REIL RWY 01 & 19; MIRL RWY 01/19 - CTAF.
E111ESTABD PRIOR TO 15 MAY 1959.
WHITERIVER (IATA: E24) is a public airport located in WHITERIVER, AZ, US.
