iFlightPlanner



...

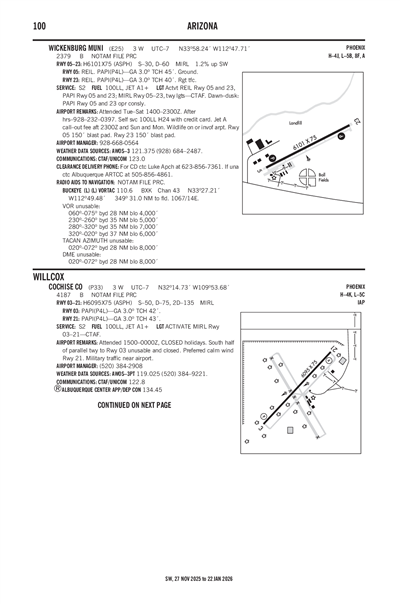

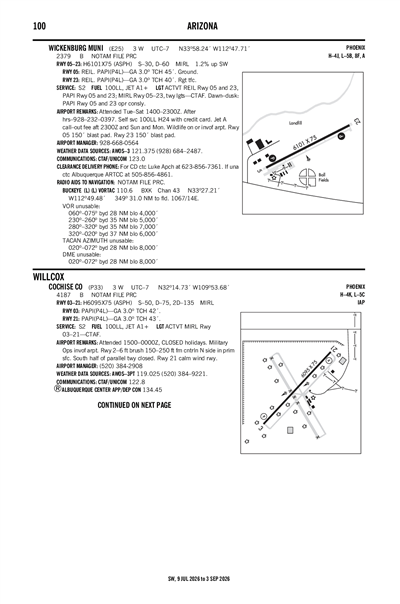

WICKENBURG MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E25
Local E25
WICKENBURG MUNI
PublicPUB

3 miles W of WICKENBURG, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 58' 14"N 112° 47' 42"W
Elevation
2379' MSL
Pattern Alt
3379' MSL
Mag Variation
10°E
Declination
13°E
Fuel
JET A-1+, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
10/29/26-11/26/26
KLUF (33nm) VFR
4:55 AM MST
Clear
10sm
61°F
44°F
30.00"Hg
010° 5kts
AO2 SLP150 T01590069 10185 20158 55002 $
METAR KLUF 121155Z AUTO 01005KT 10SM CLR 16/07 A3000 RMK AO2 SLP150 T01590069 10185 20158 55002 $
+ Add Your Business

E25 FBOs

Promote Listing
Wickenburg Municipal Airport
UNICOM: 123.0
Phone: (928) 684-0754
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 11/3
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.25 7.00
Full Serve 7.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 121.375
(928) 684-2487

Common

CTAF 123.0
ACTVT REIL RWY 05 & 23; PAPI RWY 05 & 23; MIRL RWY 05/23; TWY LGTS - CTAF. DAWN-DUSK: PAPI RWY 05 & 23 OPR CONSLY.
UNICOM 123.0

FAA A/FD Pages

Terminal Area Forecast

KLUF (33nm)
Thu, 11/12 5:00 AM MST
Thu, 11/12 5:00 AM MST - Fri, 11/13 11:00 AM MST
VFR
5:00 AM MST - 5:00 PM MST
Sky Clear
6sm
29.85"Hg
VRB° 6kts
VFR
Becoming 5:00 PM MST - 8:00 AM MST
Few 10,000'
6sm
29.76"Hg
VRB° 6kts
VFR
Becoming 8:00 AM MST - 11:00 AM MST
Broken 21,000'
Scattered 10,000'
6sm
29.82"Hg
VRB° 6kts
TAF KLUF 121200Z 1212/1318 VRB06KT 9999 SKC QNH2984INS WND 10009KT AFT 1217
   BECMG 1300/1301 VRB06KT 9999 FEW100 QNH2977INS
   BECMG 1315/1316 VRB06KT 9999 SCT100 BKN210 QNH2982INS TX29/1223Z TN14/1213Z
E25
EffectiveExpiresCategoryNOTAM
Domestic
10/31/26
0132Z
11/15/26
0032Z
!PRC 10/332 E25 OBST TOWER LGT (ASR 1007413) 341132.00N1124516.00W (13.4NM NE E25) 5324.8FT (298.6FT AGL) U/S 2610310132-2611150032
10/19/26
1151Z
1/14/27
2359Z
!PRC 10/165 E25 OBST TOWER LGT (ASN 2021-AWP-11606-OE) 333626N1133916W (47.9NM SW E25) 1435FT (159FT AGL) U/S 2610191151-2701142359
10/19/26
1145Z
1/14/27
2359Z
!PRC 10/162 E25 OBST TOWER LGT (ASN 2023-AWP-11814-OE) 333526.12N1133244.31W (43.3NM SW E25) 1518FT (129FT AGL) U/S 2610191145-2701142359
10/19/26
1145Z
1/14/27
2359Z
!PRC 10/161 E25 OBST TOWER LGT (ASN 2023-AWP-11820-OE) 333525.22N1133244.32W (43.3NM SW E25) 1517FT (129FT AGL) U/S 2610191145-2701142359
10/19/26
1144Z
1/14/27
2359Z
!PRC 10/160 E25 OBST TOWER LGT (ASN 2023-AWP-11811-OE) 333524.33N1133244.33W (43.3NM SW E25) 1518FT (129FT AGL) U/S 2610191144-2701142359
10/19/26
1144Z
1/14/27
2359Z
!PRC 10/159 E25 OBST TOWER LGT (ASN 2023-AWP-11821-OE) 333524.33N1133242.33W (43.2NM SW E25) 1518FT (129FT AGL) U/S 2610191144-2701142359
10/13/26
1225Z
1/7/27
1730Z
!PRC 10/114 E25 OBST TOWER LGT (ASN 2021-AWP-11564-OE) 333433N1132558W (38.4NM SW E25) 1570FT (159FT AGL) U/S 2610131225-2701071730
10/11/26
1055Z
1/7/27
1730Z
!PRC 10/093 E25 OBST TOWER LGT (ASN 2021-AWP-11581-OE) 333521N1133121W (42.5NM SW E25) 1559FT (149FT AGL) U/S 2610111055-2701071730
10/11/26
1021Z
1/7/27
1730Z
!PRC 10/092 E25 OBST TOWER LGT (ASN 2022-AWP-929-OE) 333631N1133956W (48.1NM SW E25) 1411FT (157FT AGL) U/S 2610111021-2701071730
No
TUE-SAT 0700-1600
AFT HR - 928-232-0397.
TOWN OF WICKENBURG
155 NORTH TEGNER ST SUITE A
WICKENBURG, AZ 85390
Phone: 928-684-5451
CASON CHAMBERS
155 NORTH TEGNER ST SUITE A
WICKENBURG, AZ 85390
Phone: 928-668-0564
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 05 & 23; PAPI RWY 05 & 23; MIRL RWY 05/23; TWY LGTS - CTAF. DAWN-DUSK: PAPI RWY 05 & 23 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 05/23

6101 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
60,000lbs
--
--
  Runway 05 Runway 23
True Heading 60°240°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 57' 59"N 33° 58' 29"N
Longitude 112° 48' 14"W 112° 47' 11"W
Elevation 2,378' 2,307'
Threshold Crossing Height 45 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-3WILDLIFE ON OR INVOF ARPT.
A110-5FOR CD CTC LUKE APCH AT 623-856-7361. IF UNA CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-6SELF SVC FUEL H24 WITH CREDIT CARD. JET A CALL OUT FEE AFT 1600 & SUN & MON.
A17-M1AFT HR - 928-232-0397.
A30A-05150 FT BLAST PAD.
A30A-23150 FT BLAST PAD.
A58-051-3 FT BRUSH 50-190 FT FM THR 40 FT L & R OF CNTRLN.
A58-231-3 FT BRUSH 0-200 FT FM THR 50-70 FT R OF CNTRLN.
A81-APTACTVT REIL RWY 05 & 23; PAPI RWY 05 & 23; MIRL RWY 05/23; TWY LGTS - CTAF. DAWN-DUSK: PAPI RWY 05 & 23 OPR CONSLY.
WICKENBURG MUNI (IATA: E25) is a public airport located in WICKENBURG, AZ, US.
