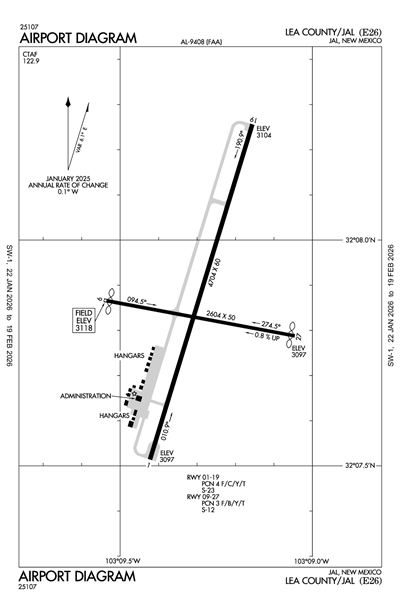

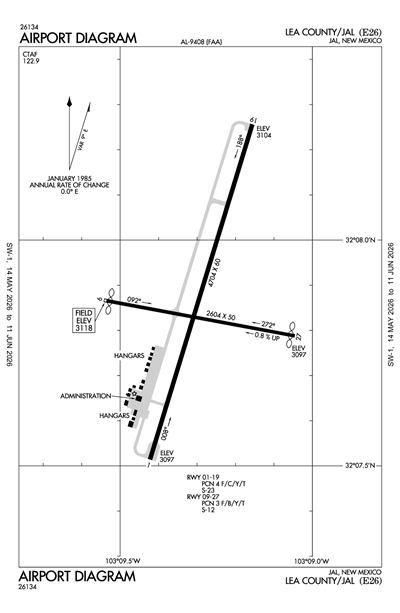

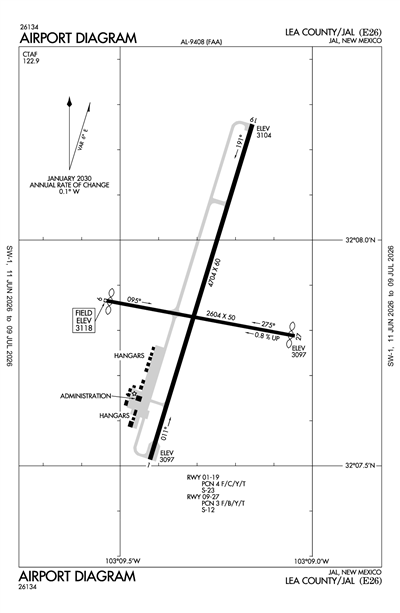

LEA COUNTY/JAL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E26
LEA COUNTY/JAL
PublicPUB

3 miles NE of JAL, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 07' 52"N 103° 09' 17"W
3118' MSL
4118' MSL
09E
None Listed
ALBUQUERQUE (ABQ)
ALBUQUERQUE
FORT WORTH (ZFW)
6/16/22-7/14/22
KINK (21nm) VFR
3:53 PM CDT
Clear
10sm
95°F
55°F
29.94"Hg
VRB° 4kts
AO2 SLP085 T03500128 56018
KINK 052053Z AUTO VRB04KT 10SM CLR 35/13 A2994 RMK AO2 SLP085 T03500128 56018
List Your Business

E26 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

E26 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

E26 Hotels

No hotels are listed for this airport.

E26 Restaurants

No restaurants are listed for this airport.

E26 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KINK (21nm)
Tue, 7/5 12:25 PM CDT
Tue, 7/5 1:00 PM CDT - Wed, 7/6 1:00 PM CDT
VFR
1:00 PM CDT - 1:00 PM CDT
Broken 25,000'
Scattered 8,000'
> 6sm
200° 12kts
KINK 051725Z 0518/0618 20012KT P6SM SCT080 BKN250
E26
Domestic
7/3/221733Z !ABQ 07/022 E26 OBST TOWER LGT (ASR 1030564) 321218.31N1034008.13W (26.3NM NW E26) 3979FT (350FT AGL) U/S 2207031733-2207182359
6/8/220256Z !ABQ 06/083 E26 OBST TOWER LGT (ASR 1006447) 321808.00N1031704.00W (12.2NM NNW E26) 3752.6FT (298.6FT AGL) U/S 2206080256-2207082300
6/1/221638Z !ABQ 06/010 E26 OBST TOWER LGT (ASR 1017061) 320640.00N1031046.00W (1.7NM SW E26) 3450.1FT (414.0FT AGL) U/S 2206011638-2211192359
3/2/221637Z !ABQ 03/033 E26 OBST TOWER LGT (ASR 1286559) 320640.60N1031046.10W (1.7NM SW E26) 3336.0FT (299.9FT AGL) U/S 2203021637-2209012359
3/2/221558Z !ABQ 03/030 E26 OBST TOWER LGT (ASR 1307899) 322400.00N1031710.00W (17.44NM NNW E26) 4008FT (420FT AGL) U/S 2203021558-2209022359
3/2/221556Z !ABQ 03/028 E26 OBST TOWER LGT (ASR 1284741) 321448.10N1033108.80W (19.9NM WNW E26) 3986.9FT (349.1FT AGL) U/S 2203021556-2209022359
3/2/220045Z !ABQ 03/019 E26 OBST TOWER LGT (ASR 1023843) 320434.00N1031048.00W (3.5NM SSW E26) 3284.4FT (299.9FT AGL) U/S 2203020045-2208182359
3/1/222225Z !ABQ 03/014 E26 OBST TOWER LGT (ASR 1022466) 321719.40N1033708.50W (25.44NM WNW E26) 4201FT (499FT AGL) U/S 2203012225-2208132359
3/1/222221Z !ABQ 03/013 E26 OBST TOWER LGT (ASR 1022465) 321447.80N1033108.60W (19.9NM WNW E26) 4086.9FT (452.1FT AGL) U/S 2203012221-2208132359
No
UNATNDD
LEA COUNTY
PO BOX 1106
HOBBS, NM 88241-1106
Phone: 575-391-2934
CORY NEEDHAM
PO BOX 1106
HOBBS, NM 88241-1106
Phone: 575-391-2934
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
MIRL RWY 01/19 PRESET LOW INTST - TO INCR INTST ACTVT - CTAF. ACTVT PAPI RWY 01, 19 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
7
1
1
0
0
0
None
None
None
None
None

Runway 01/19

4704 ft. x 60 ft.
ASPH
Fair

MED
4 /F/C/Y/T
23,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 17°197°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 32° 07' 31"N 32° 08' 15"N
Longitude 103° 09' 25"W 103° 09' 09"W
Elevation 3,097' 3,104'
Threshold Crossing Height 40 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3.03° 2.83°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

2604 ft. x 50 ft.
ASPH
Good


3 /F/B/Y/T
12,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 101°281°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 32° 07' 52"N 32° 07' 47"N
Longitude 103° 09' 33"W 103° 09' 03"W
Elevation 3,118' 3,097'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-15 FT LINE OF SIGHT NOT AVBL BTN RYS 01/19 AND 09/27 ENDS.
A110-2EXTENSIVE OIL WELL DRILLING ACTIVITY ON & INVOF ARPT.
A110-3+20 FT PUMP JACK 990 FT FM RY 19 THLD 50 FT RIGHT OF CENTERLINE.
A110-4RY 09/27 +4-7 FT BRUSH 50 FT FM CNTRLN BOTH SIDES LENGTH OF RUNWAY.
A110-5RWY 01 - +3' STEEL POSTS 145 FT. FROM THE THRESHOLD, ON CENTERLINE, 40 FT. AND 80 FT. LEFT , 110 FT. RIGHT OF CENTERLINE OVER BURIED OIL LINE.
A110-6FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
LEA COUNTY/JAL (IATA: E26) is a public airport located in JAL, NM.
