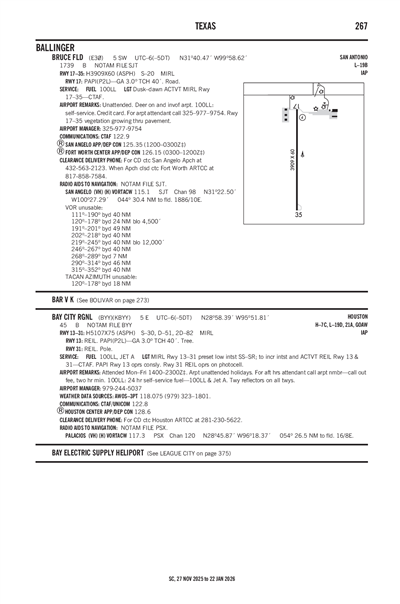

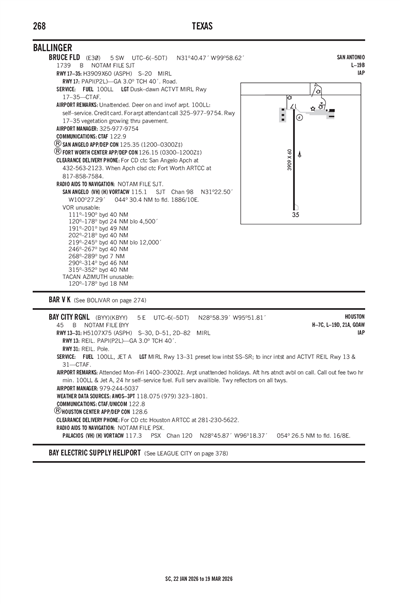

BRUCE FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E30
Local E30
BRUCE FLD
PublicPUB

5 miles SW of BALLINGER, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 40' 28"N 99° 58' 37"W
Elevation
1739' MSL
Pattern Alt
2739' MSL
Mag Variation
5°E
Declination
8°E
Fuel
100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
FORT WORTH (ZFW)
Data Effective
5/14/26-6/11/26
KCOM (31nm) VFR
5:55 PM CDT
Broken 7,000'
Broken 5,000'
Broken 4,700'
10sm
86°F
65°F
30.04"Hg
140° 10kts
AO2 LTG DSNT NW T02980184
METAR KCOM 032255Z AUTO 14010KT 10SM BKN047 BKN050 BKN070 30/18 A3004 RMK AO2 LTG DSNT NW T02980184
+ Add Your Business

E30 FBOs

Promote Listing
Bruce Field
Phone: (325) 365-3511
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 5/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.33
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
DUSK-DAWN ACTVT MIRL RWY 17/35 - CTAF.

Approach

SAN ANGELO APPROACH 125.35

Departure

SAN ANGELO DEPARTURE 125.35

Center

SAN ANGELO CENTER 126.15
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 126.15/322.55 (SAN ANGELO RCAG) WHEN MIDLAND APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSJT (33nm)
Wed, 6/3 5:01 PM CDT
Wed, 6/3 5:00 PM CDT - Thu, 6/4 1:00 PM CDT
VFR
5:00 PM CDT - 9:00 PM CDT
Showers in vicinity
Broken 5,000'
6sm
090° 10kts
Gusts 17kts
VFR
9:00 PM CDT - 7:00 AM CDT
Scattered 25,000'
6sm
120° 6kts
VFR
7:00 AM CDT - 10:00 AM CDT
Scattered 2,000'
6sm
150° 3kts
VFR
10:00 AM CDT - 12:45 PM CDT
Scattered 3,000'
6sm
150° 6kts
VFR
12:45 PM CDT - 1:00 PM CDT
Scattered 4,000'
6sm
140° 7kts
TAF KSJT 032201Z 0322/0418 09010G17KT P6SM VCSH BKN050
   FM040200 12006KT P6SM SCT250
   FM041200 15003KT P6SM SCT020
   FM041500 15006KT P6SM SCT030
   FM041745 14007KT P6SM SCT040
E30
EffectiveExpiresCategoryNOTAM
Domestic
5/21/26
0223Z
9/18/26
0223Z
!SJT 05/313 E30 OBST TOWER LGT (ASR 1048461) 314733.10N0995356.40W (8.1NM NNE E30) 2047.9FT (254.9FT AGL) U/S 2605210223-2609180223
FDC
5/26/26
1346Z
!FDC 6/2918 E30 IAP BRUCE FLD, BALLINGER, TX. RNAV (GPS) RWY 17, ORIG-A... DELETE NOTE: DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP APCH - GPS. CHANGE NOTE TO READ: USE SJT ALTIMETER SETTING; WHEN NOT RECEIVED, USE BBD ALTIMETER SETTING AND INCREASE LPV DA TO 2104 FEET; INCREASE LNAV/VNAV DA TO 2104 FEET; INCREASE ALL MDAS 20 FEET. DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK IN PROFILE AT KIDVE. CHART NOTE: CIRCLING RWY 35 NA AT NIGHT. THIS IS RNAV (GPS) RWY 17, ORIG-B. 2605261346-PERM
3/18/26
1351Z
!FDC 6/9878 E30 IAP BRUCE FLD, BALLINGER, TX.
RNAV (GPS) RWY 35, ORIG-A...
CIRCLING CAT C MDA 2480/HAA 742.
2603181351-2803181351EST
11/15/24
1454Z
!FDC 4/4889 E30 IAP BRUCE FLD, BALLINGER, TX.
RNAV (GPS) RWY 17, ORIG-A...
CIRCLING TO RWY 35 NA AT NIGHT.
2411151454-2611151454EST
11/15/24
1454Z
!FDC 4/4887 E30 IAP BRUCE FLD, BALLINGER, TX.
RNAV (GPS) RWY 35, ORIG-A...
LPV DA NA.
PROCEDURE NA AT NIGHT.
2411151454-2611151454EST
No
UNATNDD
CITY OF BALLINGER
PO BOX 497
BALLINGER, TX 76821
Phone: (325) 365-3511
ELLEN MCKINNON
P.O. BOX 497 PO BOX 497
BALLINGER, TX 76821
Phone: 325-977-9754
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
DUSK-DAWN ACTVT MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 17/35

3909 ft. x 60 ft.
ASPH
Fair
NONE
MED

20,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 31° 40' 47"N 31° 40' 09"N
Longitude 99° 58' 37"W 99° 58' 37"W
Elevation 1,735' 1,738'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1DEER ON & INVOF ARPT.
A110-2FOR CD CTC SAN ANGELO APCH AT 432-563-2123. WHEN APCH CLSD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-3FOR ARPT ATTENDANT CALL 325-977-9754
A33-17/35_CONDVEGETATION GROWING THRU PAVEMENT.
A70-100LLSELF-SERVICE. CREDIT CARD
A81-APTDUSK-DAWN ACTVT MIRL RWY 17/35 - CTAF.
BRUCE FLD (IATA: E30) is a public airport located in BALLINGER, TX, US.
