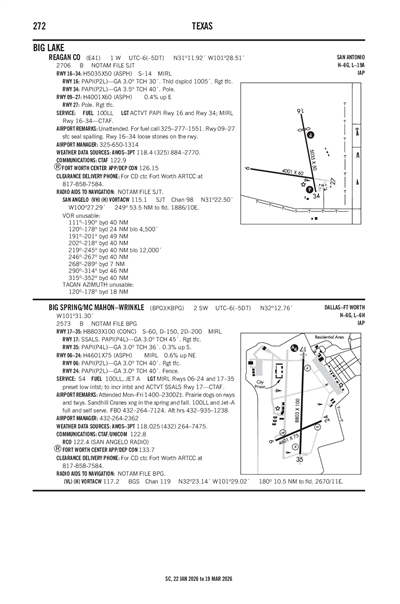

REAGAN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E41
Local E41
REAGAN COUNTY
PublicPUB

1 miles W of BIG LAKE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 11' 55"N 101° 28' 31"W
Elevation
2706' MSL
Pattern Alt
3706' MSL
Mag Variation
5°E
Declination
8°E
Fuel
100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
FORT WORTH (ZFW)
Data Effective
5/14/26-6/11/26
KE41 VFR
6:55 PM CDT
Clear
10sm
87°F
53°F
29.84"Hg
180° 15kts
Gusts 21kts
AO2 T03040115 10317 20251 403170214
METAR KE41 152355Z AUTO 18015G21KT 10SM CLR 30/12 A2984 RMK AO2 T03040115 10317 20251 403170214
+ Add Your Business

E41 FBOs

Promote Listing
Buddy Poynor
Phone: (325) 884-2576
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.4
(325) 884-2770

Common

CTAF 122.9
ACTVT PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.

Center

FORT WORTH CENTER 126.15
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 126.15/322.55 (SAN ANGELO RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSJT (51nm)
Fri, 5/15 6:20 PM CDT
Fri, 5/15 7:00 PM CDT - Sat, 5/16 7:00 PM CDT
VFR
7:00 PM CDT - 11:00 PM CDT
Scattered 10,000'
6sm
160° 11kts
VFR
11:00 PM CDT - 9:00 AM CDT
Scattered 25,000'
6sm
160° 9kts
VFR
9:00 AM CDT - 11:00 AM CDT
Sky Clear
6sm
200° 13kts
Gusts 21kts
VFR
11:00 AM CDT - 7:00 PM CDT
Sky Clear
6sm
190° 17kts
Gusts 24kts
TAF KSJT 152320Z 1600/1624 16011KT P6SM SCT100
   FM160400 16009KT P6SM SCT250 WS020/18035KT
   FM161400 20013G21KT P6SM SKC
   FM161600 19017G24KT P6SM SKC
E41
EffectiveExpiresCategoryNOTAM
Domestic
5/13/26
1633Z
8/14/26
2359Z
!SJT 05/184 E41 OBST WIND TURBINE LGT (ASN 2016-WTW-9654-OE) 310857N1011942W (8.0NM ESE E41) 3232FT (499FT AGL) U/S 2605131633-2608142359
5/13/26
1631Z
8/14/26
2359Z
!SJT 05/183 E41 OBST WIND TURBINE (ASN 2016-WTW-9641-OE) 310858N1012453W (5.5NM SE E41) UNKNOWN (500FT AGL) NOT LGTD 2605131631-2608142359
5/13/26
1631Z
8/14/26
2359Z
!SJT 05/182 E41 OBST WIND TURBINE (ASN 2016-WTW-9641-OE) 310858N1012453W (17NM W LPR) UNKNOWN (500FT AGL) NOT LGTD 2605131631-2608142359
5/13/26
1626Z
8/14/26
2359Z
!SJT 05/181 E41 OBST WIND TURBINE LGT (ASN 2017-WTW-2587-OE) 311209N1011236W (13.6NM E E41) 3116FT (486FT AGL) U/S 2605131626-2608142359
5/13/26
1626Z
8/14/26
2359Z
!SJT 05/180 E41 OBST WIND TURBINE LGT (ASN 2017-WTW-2617-OE) 311126N1011304W (13.2NM E E41) 3145FT (486FT AGL) U/S 2605131626-2608142359
5/13/26
1624Z
8/14/26
2359Z
!SJT 05/179 E41 OBST WIND TURBINE LGT (ASN 2016-WTW-9603-OE) 311121N1011320W (13.0NM E E41) 3171FT (499FT AGL) U/S 2605131624-2608142359
5/13/26
1623Z
8/14/26
2359Z
!SJT 05/178 E41 OBST WIND TURBINE LGT (ASN 2017-WTW-2577-OE) 311234N1011844W (8.4NM E E41) 3249FT (486FT AGL) U/S 2605131623-2608142359
5/13/26
1622Z
8/14/26
2359Z
!SJT 05/177 E41 OBST WIND TURBINE LGT (ASN 2017-WTW-2558-OE) 311141N1012340W (4.1NM E E41) 3202FT (486FT AGL) U/S 2605131622-2608142359
5/13/26
1621Z
8/14/26
2359Z
!SJT 05/176 E41 OBST WIND TURBINE LGT (ASN 2016-WTW-9549-OE) 311337N1012530W (3.0NM NE E41) 3232FT (499FT AGL) U/S 2605131621-2608142359
5/5/26
0637Z
5/20/26
0537Z
!SJT 05/053 E41 OBST TOWER LGT (ASR 1294110) 313149.60N1012842.90W (19.8NM NE E41) 2976.0FT (323.2FT AGL) U/S 2605050637-2605200537
FDC
3/5/25
1921Z
!FDC 5/9576 E41 IAP REAGAN COUNTY, BIG LAKE, TX.
RNAV (GPS) RWY 16, ORIG-A...
CIRCLING RWY 34 NA AT NIGHT.
2503051921-2703051921EST
No
UNATNDD
REAGAN COUNTY
COURTHOUSE
BIG LAKE, TX 76932
Phone: 325-884-2665
HEATH HOLT
P. O BOX 100
BIG LAKE, TX 76932
Phone: 325-650-1314
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
ACTVT PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

4001 ft. x 60 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 99°279°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 11' 51"N 31° 11' 45"N
Longitude 101° 29' 05"W 101° 28' 19"W
Elevation 2,685' 2,699'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

5035 ft. x 50 ft.
ASPH
Good
NONE
MED

14,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 169°349°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 12' 25"N 31° 11' 36"N
Longitude 101° 28' 28"W 101° 28' 17"W
Elevation 2,696' 2,700'
Threshold Crossing Height 30 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A14COUNTY JUDGE.
A33-09/27_CONDSFC SEAL SPALLING.
A33-16/34_CONDLOOSE STONES ON THE RWY.
A70-100LLFOR FUEL CALL 325-277-1551
A81-APTACTVT PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.
REAGAN COUNTY (IATA: E41) is a public airport located in BIG LAKE, TX, US.
