iFlightPlanner



...
PINE MOUNTAIN LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E45
PINE MOUNTAIN LAKE
PublicPUB

3 miles NE of GROVELAND, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 51' 42"N 120° 10' 43"W
2933' MSL
3933' MSL
15E
100LL
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
6/16/22-7/14/22
KO22 (15nm) VFR
10:35 AM PDT
Clear
10sm
68°F
43°F
29.97"Hg
240° 4kts
A01
KO22 031735Z AUTO 24004KT 10SM CLR 20/06 A2997 RMK A01
List Your Business

E45 FBOs, Flight Schools and Ground Support

Promote Listing
Mother Lode Aviation
Phone: (209) 303-5385
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 6/7
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.29 6.55
Full Serve

E45 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

E45 Hotels

No hotels are listed for this airport.

E45 Restaurants

No restaurants are listed for this airport.

E45 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

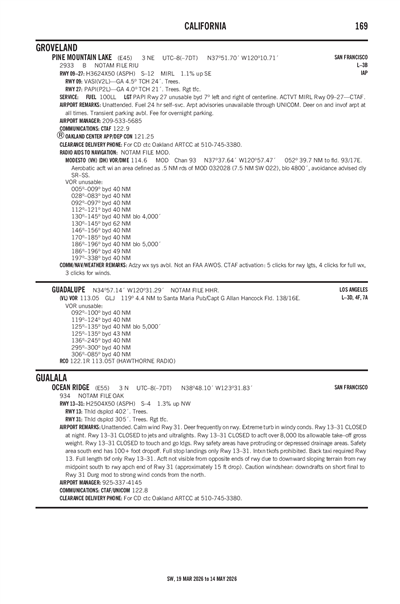

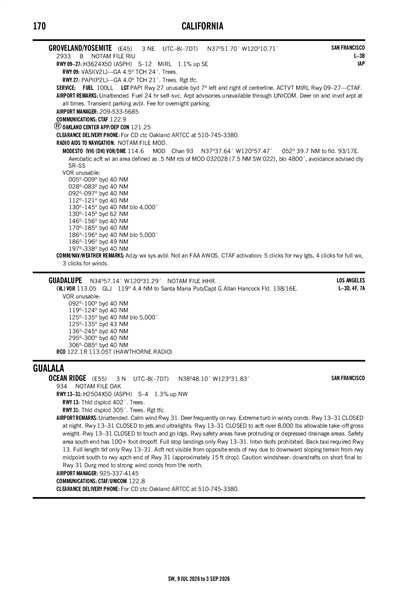

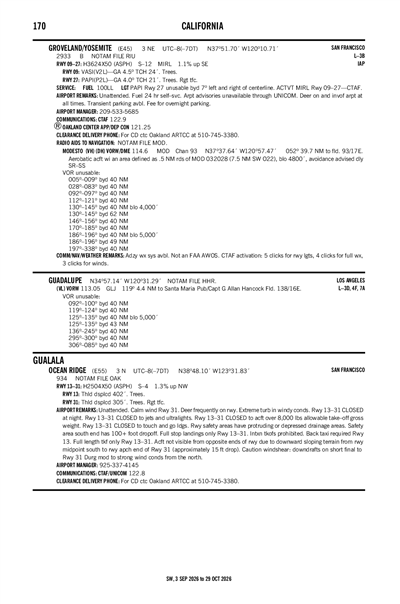

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMER (34nm)
Sun, 7/3 10:27 AM PDT
Sun, 7/3 11:00 AM PDT - Mon, 7/4 11:00 AM PDT
VFR
11:00 AM PDT - 2:00 PM PDT
Scattered 20,000'
> 6sm
320° 9kts
VFR
2:00 PM PDT - 5:00 AM PDT
Few 20,000'
> 6sm
320° 10kts
Gusts 17kts
VFR
5:00 AM PDT - 11:00 AM PDT
Sky Clear
> 6sm
320° 6kts
KMER 031727Z 0318/0418 32009KT P6SM SCT200
   FM032100 32010G17KT P6SM FEW200
   FM041200 32006KT P6SM SKC
E45
Domestic
1/19/220501Z !RIU 01/092 E45 AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
8/5/211736Z !FDC 1/2295 E45 IAP PINE MOUNTAIN LAKE, GROVELAND, CA.
GPS RWY 27, ORIG-C...
DISREGARD NOTE: OBTAIN LOCAL ALTIMETER SETTING ON CTAF; WHEN NOT RECEIVED, USE COLUMBIA ALTIMETER SETTING.
NOTE: USE COLUMBIA ALTIMETER SETTING, COLUMBIA ALTIMETER SETTING MINIMUMS S-17 MDA 3780/ HAT 850 ALL CATS.
2108051736-2308031736EST
8/5/211736Z !FDC 1/2294 E45 IAP PINE MOUNTAIN LAKE, GROVELAND, CA.
RNAV (GPS) RWY 9, ORIG-C...
DISREGARD NOTE: USE COLUMBIA ALTIMETER SETTING; IF NOT RECEIVED, USE CASTLE ALTIMETER SETTING AND INCREASE ALL MDA 560 FEET.
NOTE: USE COLUMBIA ALTIMETER SETTING..
2108051736-2308031736EST
No
UNATNDD
TULOUMNE COUNTY
2 SOUTH GREEN ST.
SONORA, CA 95370
Phone: 209-533-5685
BENEDICT STUTH
10723 AIRPORT RD
COLUMBIA, CA 95310
Phone: 209-533-5685
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
ACTVT MIRL RY 09/27 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
No
11
1
0
0
0
0
None
None
None
None
None

Runway 09/27

3624 ft. x 50 ft.
ASPH
Good

MED

12,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 110°290°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 51' 48"N 37° 51' 36"N
Longitude 120° 11' 04"W 120° 10' 22"W
Elevation 2,895' 2,933'
Threshold Crossing Height 24 ft. AGL 21 ft. AGL
Visual Glide Path Angle 4.5° 4°
Visual Slope Indicator V2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TRANSIENT PARKING AVBL.
A110-2FEE FOR OVERNIGHT PARKING.
A110-4(E81) RWY EXIT LGTS.
A110-5DEER ON & INVOF ARPT AT ALL TIMES.
A110-7FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
PINE MOUNTAIN LAKE (IATA: E45) is a public airport located in GROVELAND, CA.
