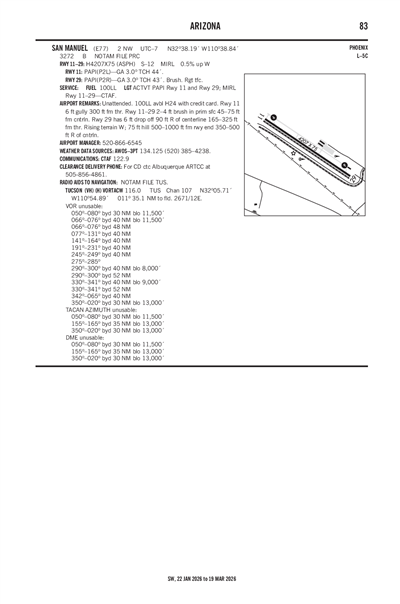

SAN MANUEL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E77
SAN MANUEL
PublicPUB

2 miles NW of SAN MANUEL, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 38' 11"N 110° 38' 50"W
3272' MSL
4272' MSL
12E
100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
6/16/22-7/14/22
KDMA (30nm) VFR
1:58 AM MST
Clear
10sm
76°F
40°F
29.98"Hg
130° 6kts
AO2 SLP104 T02440047 52008 $
KDMA 070858Z AUTO 13006KT 10SM CLR 24/05 A2998 RMK AO2 SLP104 T02440047 52008 $
List Your Business

E77 FBOs, Flight Schools and Ground Support

Promote Listing
San Manuel Airport
Phone: (520) 866-6545
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.99
Full Serve

E77 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

E77 Hotels

No hotels are listed for this airport.

E77 Restaurants

No restaurants are listed for this airport.

E77 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
520-385-4238
 134.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KDMA (30nm)
Wed, 7/6 11:05 PM MST
Wed, 7/6 11:00 PM MST - Fri, 7/8 5:00 AM MST
VFR
11:00 PM MST - 11:00 AM MST
Sky Clear
> 6sm
29.91"Hg
VRB° 6kts
VFR
Becoming 11:00 AM MST - 11:00 PM MST
Sky Clear
> 6sm
29.88"Hg
290° 9kts
VFR
Becoming 11:00 PM MST - 5:00 AM MST
Sky Clear
> 6sm
29.88"Hg
VRB° 6kts
TAF KDMA 070605Z 0706/0812 VRB06KT 9999 SKC QNH2992INS
   BECMG 0718/0719 29009KT 9999 SKC QNH2987INS
   BECMG 0806/0807 VRB06KT 9999 SKC QNH2989INS TX39/0722Z TN23/0711Z
E77
Domestic
6/27/220408Z !PRC 06/230 E77 OBST TOWER LGT (ASR 1002407) 322454.00N1104257.90W (13.6NM SSW E77) 8753.3FT (258.9FT AGL) U/S 2206270408-2208120408
No
UNATNDD
PINAL COUNTY
REDINGTON ROAD
SAN MANUEL, AZ 85631
Phone: 520-385-3241
JIM PETTY
PO BOX 727
FLORENCE, AZ 85132
Phone: 520-866-6545
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
15
0
0
1
0
0
None
None
None
None
Pilot Instruction

Runway 11/29

4207 ft. x 75 ft.
ASPH
Good

MED

12,000lbs
--
--
--
  Runway 11 Runway 29
True Heading Not ListedNot Listed
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 38' 23"N 32° 37' 60"N
Longitude 110° 39' 11"W 110° 38' 30"W
Elevation 3,272' 3,250'
Threshold Crossing Height 44 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-3RY 11 HAS 6 FT GULLY 300 FT FM THLD.
A110-4RY 29 HAS 6 FT SLOPED DROP OFF 90 FT R OF CNTRLN 165 FT FM THLD EXTENDING OUT TO 325 FT FM THLD.
A110-5RY 11/29 SCATTERED 2-4 FT BRUSH IN PRIMARY SURFACE 45-75 FT FROM CNTRLN.
A110-6RISING TERRAIN WEST OF AIRPORT., +60 FT.-75 FT. HILL 500 FT. TO 1000 FT. FROM E.O.R., 350 FT - 500 FT RIGHT OF CENTERLINE.
A110-7A.W.O.S. FREQ: 134.125, LAND LINE 520-385-4238.
A110-8FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
SAN MANUEL (IATA: E77) is a public airport located in SAN MANUEL, AZ.
