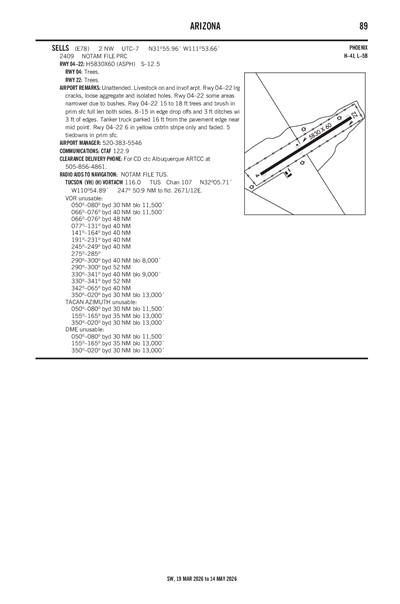

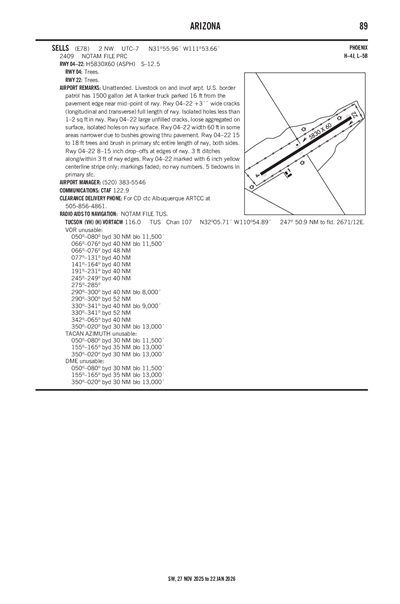

SELLS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E78
Local E78
SELLS
PublicPUB

2 miles NW of SELLS, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 55' 57"N 111° 53' 39"W
Elevation
2409' MSL
Pattern Alt
3409' MSL
Mag Variation
10°E
Declination
12°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KRYN (39nm) VFR
10:45 AM MST
Clear
10sm
70°F
16°F
30.23"Hg
110° 20kts
Gusts 27kts
METAR KRYN 221745Z 11020G27KT 10SM CLR 21/M09 A3023
+ Add Your Business

E78 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KTUS (49nm)
Sun, 2/22 10:20 AM MST
Sun, 2/22 11:00 AM MST - Mon, 2/23 11:00 AM MST
VFR
11:00 AM MST - 4:00 PM MST
Scattered 20,000'
6sm
120° 16kts
Gusts 26kts
VFR
4:00 PM MST - 9:00 PM MST
Sky Clear
6sm
100° 12kts
VFR
9:00 PM MST - 11:00 AM MST
Sky Clear
6sm
130° 7kts
TAF KTUS 221720Z 2218/2318 12016G26KT P6SM SCT200
   FM222300 10012KT P6SM SKC
   FM230400 13007KT P6SM SKC
E78
No NOTAM Available
No
UNATNDD
TOHONO O'ODHAM NATION
PO BOX 837
SELLS, AZ 85634
Phone: 520-383-2028
DEMASCUS FRANCISCO
PO BOX 837
SELLS, AZ 85634
Phone: (520) 383-5546
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
--
N/A
No
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

5830 ft. x 60 ft.
ASPH
Poor
NONE


12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 58°238°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 31° 55' 42"N 31° 56' 12"N
Longitude 111° 54' 08"W 111° 53' 11"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-25 TIEDOWNS IN PRIMARY SFC.
A110-3LIVESTOCK ON INVOF ARPT.
A110-4RY 04/22 15 TO 18 FT TREES AND BRUSH IN PRIMARY SURFACE ENTIRE LENGTH OF RY, BOTH SIDES.
A110-5RWY 04/22 8-15 INCH DROP-OFFS AT EDGES OF RWY. 3 FT DITCHES ALONG//WITHIN 3 FT OF RWY EDGES.
A110-6U.S. BORDER PATROL HAS 1500 GALLON JET A TANKER TRUCK PARKED 16 FT. FROM THE PAVEMENT EDGE NEAR MID-POINT OF RUNWAY.
A110-7FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A14DIRECTOR OF PLANNING AND ECONOMIC DEVELOPMENT.
A32-04/22WIDTH 60 FT IN SOME AREAS; NARROWER DUE TO BUSHES GROWING THRU PAVEMENT.
A33-04/22_CONDRWY 04/22 LARGE UNFILLED CRACKS, LOOSE AGGREGATE ON SURFACE, ISOLATED HOLES ON RWY SURFACE.
A33-04/22_SURFRUNWAY 4-22 +3" WIDE CRACKS (LONGITUDINAL AND TRANSVERSE) FULL LENGTH OF RUNWAY. ISOLATED HOLES 1-2 SQ. FT. IN RUNWAY.
A42-04_MARKRY MKD WITH 6 INCH YELLOW CNTRLN STRIPE ONLY; MKGS FADED; NO RY NUMBER.
A42-22_MARKRY MKD WITH 6 INCH YELLOW CNTRLN STRIPE ONLY; MKGS FADED; NO RY NUMBER.
A58-04RY 04 10 TO 12 FT TREES AND BRUSH 0FT. TO 200 FT. FROM THRESHOLD 0B; +3 FT. BERM 100 FT. FROM THRESHOLD ON CENTERLINE ACROSS APPROACH.
A58-2212 FT TREE 123 FT FROM EOR & 59 FT R; 4 FT FENCE 75 FT FROM EOR 40 FT. LEFT & RIGHT OF CENTERLINE.
E111ESTABD PRIOR TO 5/15/59.
SELLS (IATA: E78) is a public airport located in SELLS, AZ, US.
